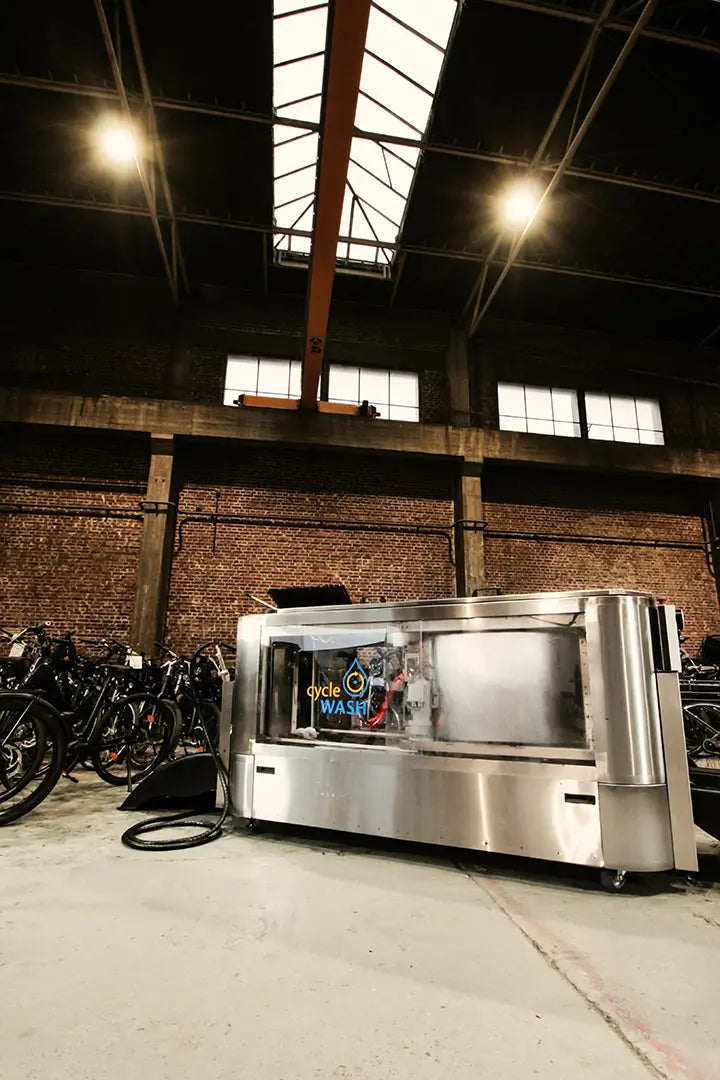

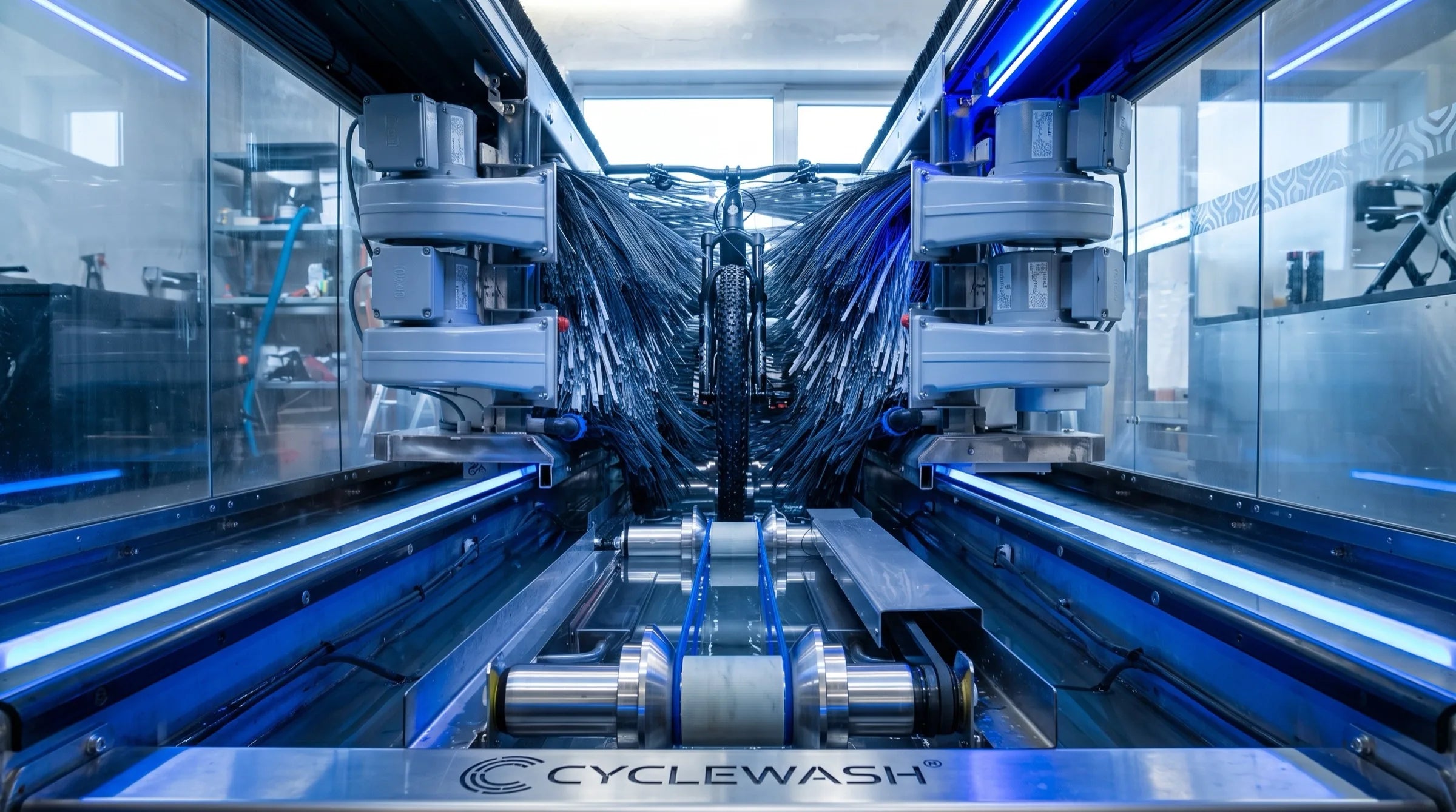

cycleWASH Pro · in operation

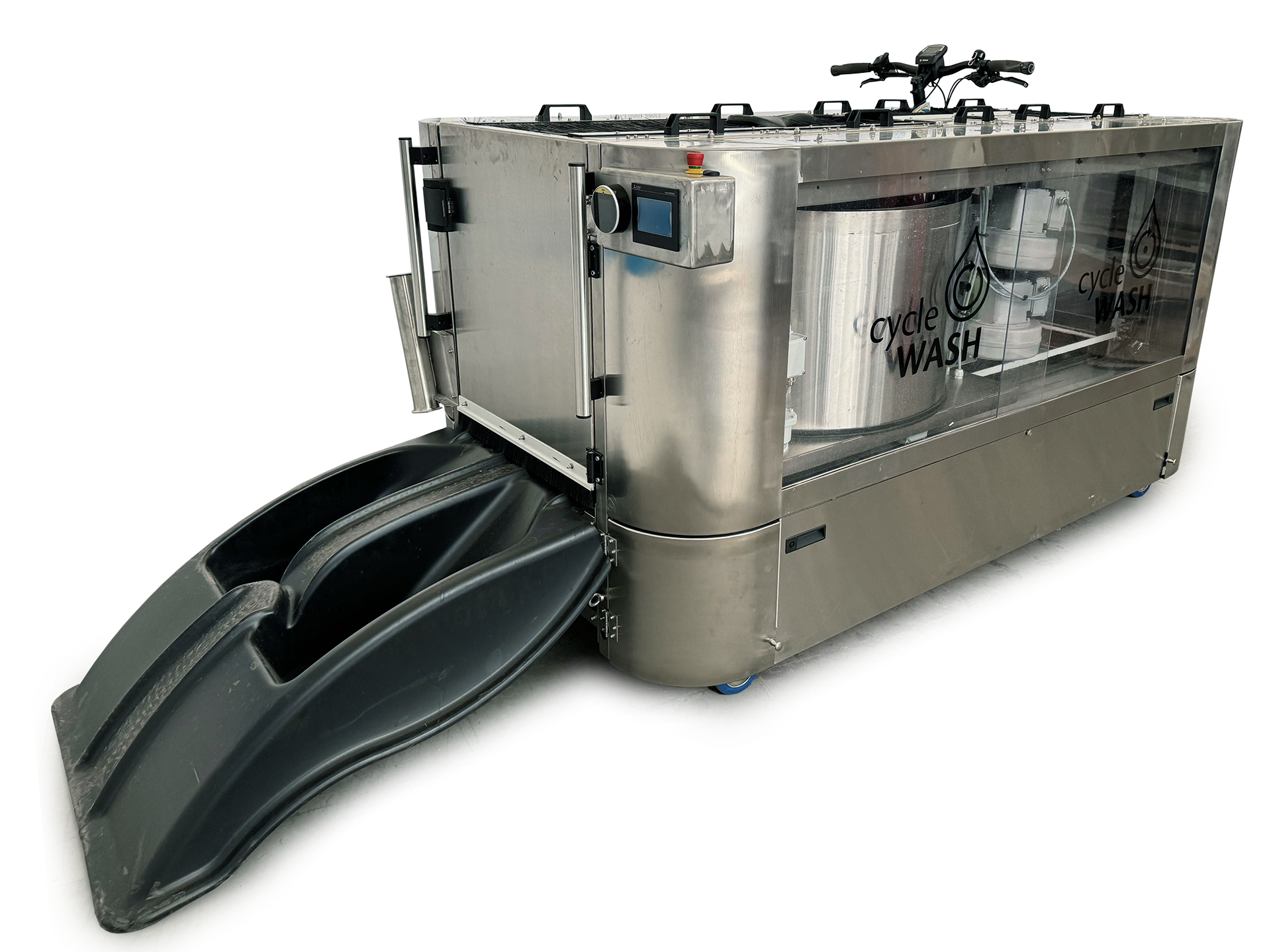

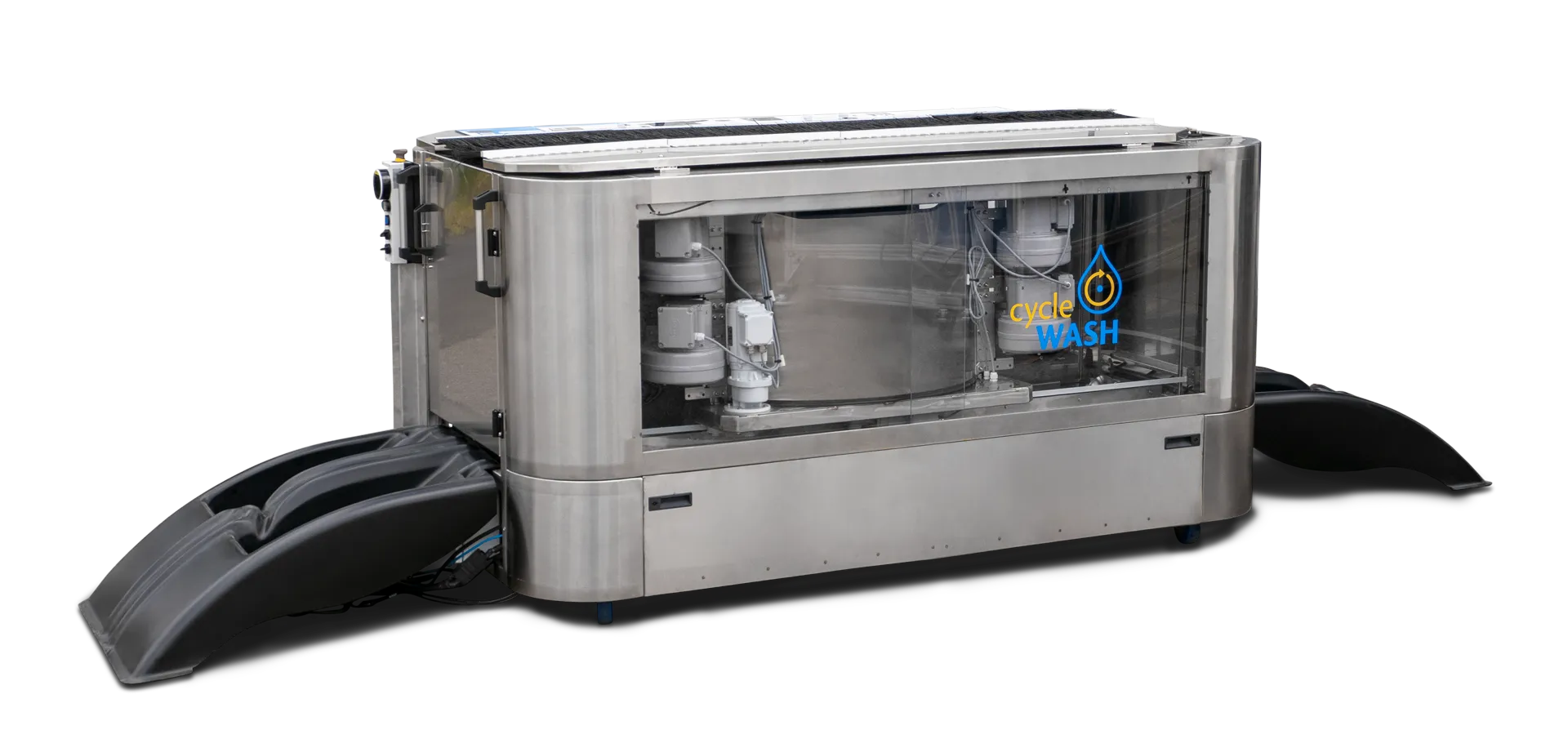

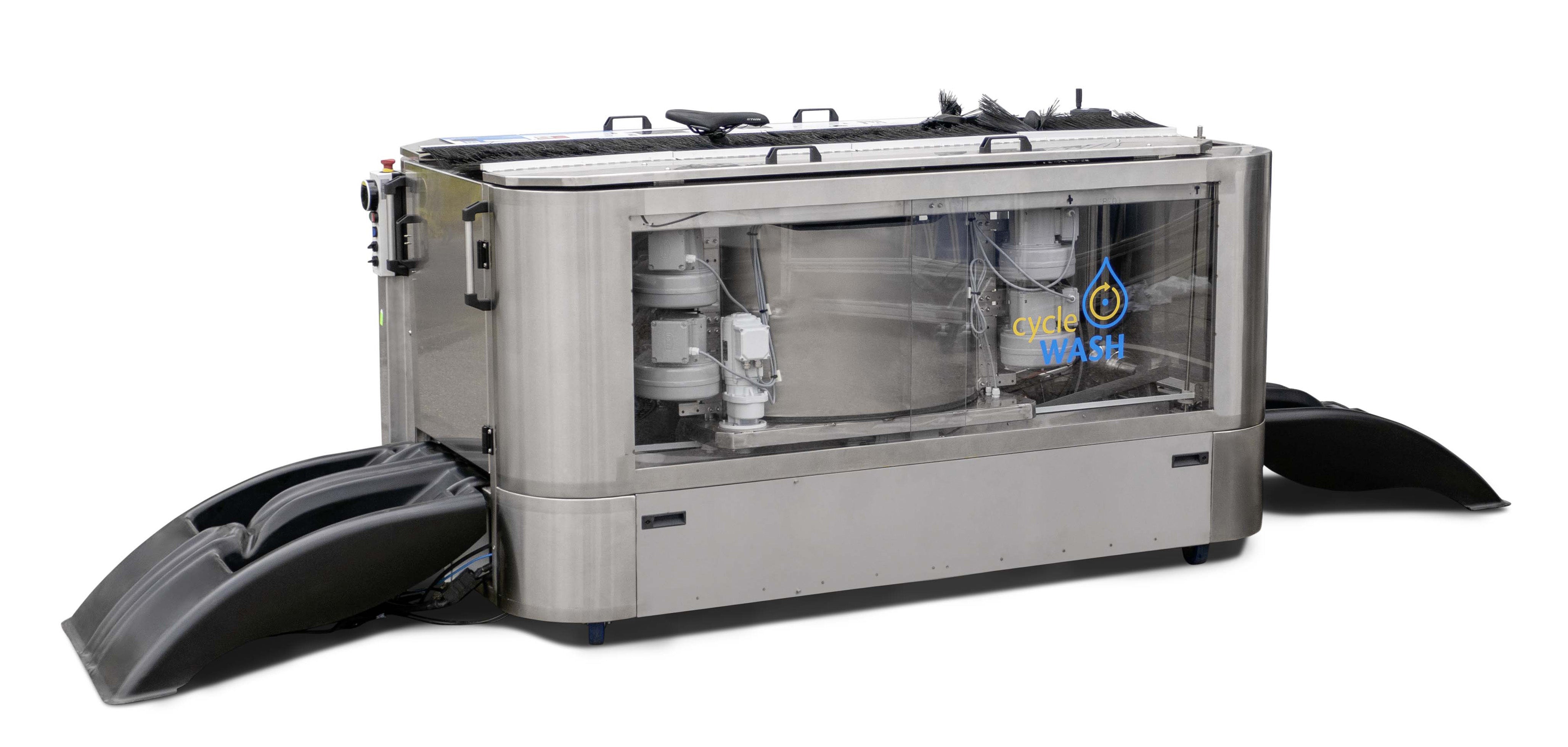

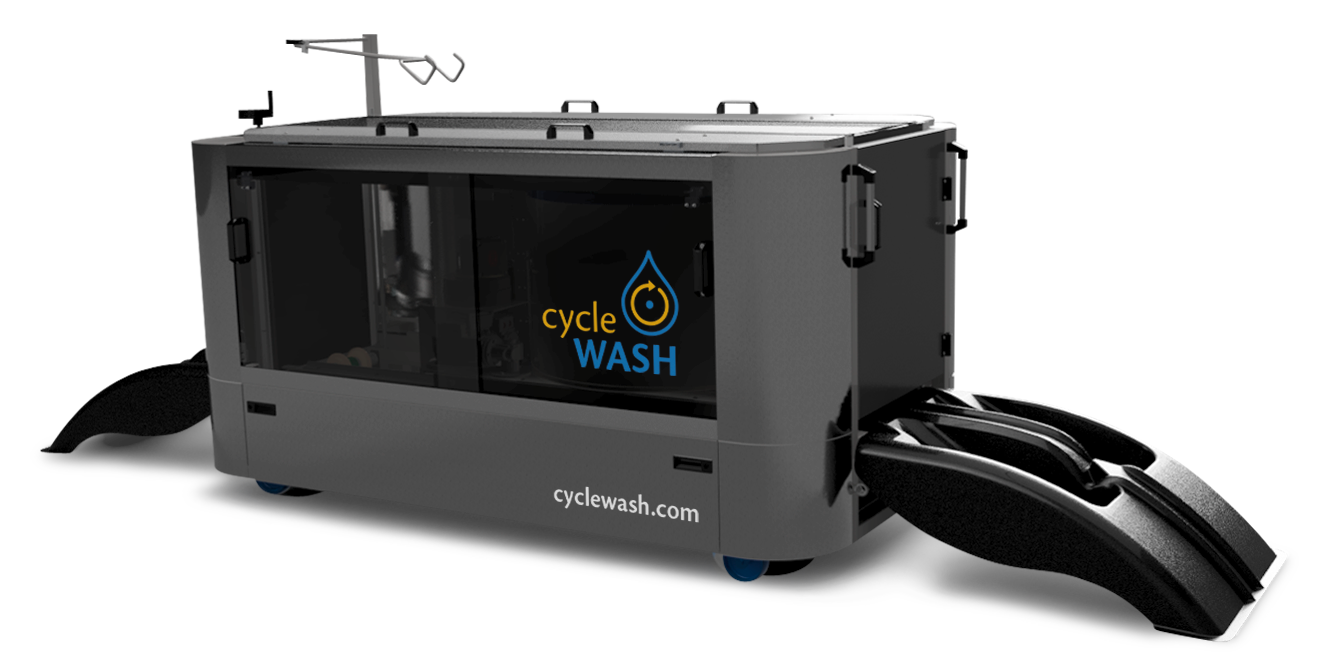

cycleWASH Pro Platinum
cycleWASH® Pro

Robotics — Pro · The New Generation

Fully automatic bicycle cleaning.

Intelligent Highly Automated Environmentally Friendly

Depending on how dirty the bike is, up to 5 cleaning cycles can be combined, which control the washing process with smart cleaning parameters.

Request a Quote →
Technical data
Dimensions (L × W × H)
2365 × 1255 × 1235 mm · 4200 mm with ramps
Weight
550–650 kg
Power
400 V three-phase, or solar 230 V
Water use
≈ 3 L per wash (ECO) · ≈ 12 L (Standard)
Tank
≈ 210 L
Oil separator
External, optional
Dryer
Integrated, 8 blowers (Wash/Dry); optional on Wash
Delivery
Usually within 3–4 weeks after payment

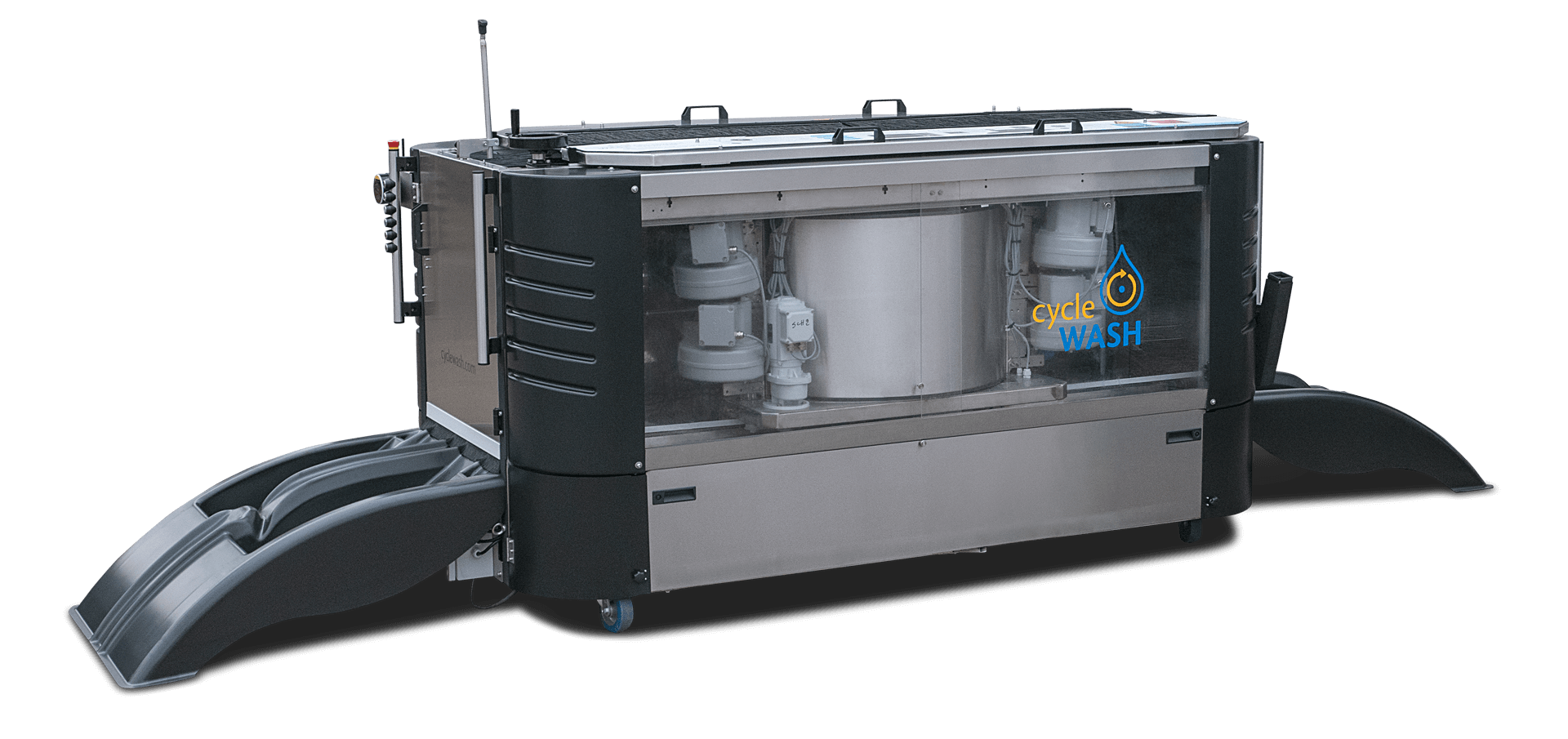

cycleWASH Pro Platinum and Pro Black
4 Wash Programs

Fully automatic bicycle cleaning!

cycleWASH® Pro revolutionizes bike cleaning with 4 fully automatic wash programs that intelligently adapt to the degree of soiling on your bike. For lightly soiled wheels, the ECO program uses only water. For heavier soiling, the STANDARD program ensures reliable cleaning by precisely dosing detergent. Both programs can be combined with automatic drying.

The particularly gentle EASYClick washing brushes and the innovative low-pressure system make cycleWASH® Pro the ideal solution for high-quality bicycles and e-bikes. Another outstanding feature is the integrated cleaning bath with automatic wheel rotation unit and rim cleaning brushes.

The smarter way to maintain your fleet.

Fully automatic. 3-minute cycle. Zero compromise.

INTERACTIVE

cycleWASH® Pro — look inside

Two ways in: rotate and explode the full 3D model on the left — or click the pulsing + hotspots on the right to open each component.

INTERACTIVE 3D

cycleWASH® Pro — Explore in 3D

Rotate, explode, and click brand-coloured components.

NDA REQUIRED cycleWASH Pro Platinum technical cutaway preview 3,598 components · Full demo
05:00 left in session
Interactive

cycleWASH® Pro — Discover Details

Click on the hotspots to discover each component.

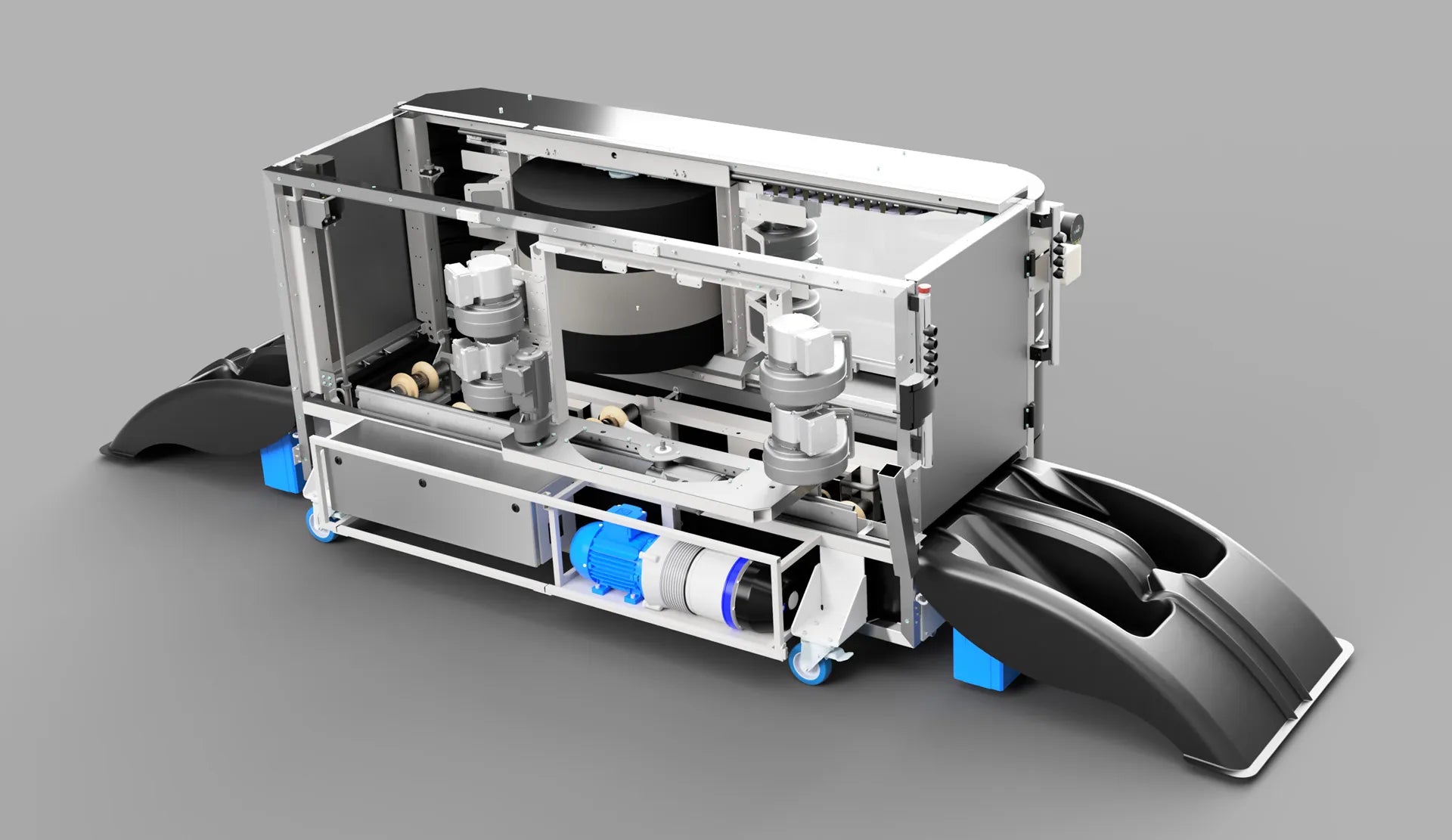

cycleWASH Pro Cross-Section

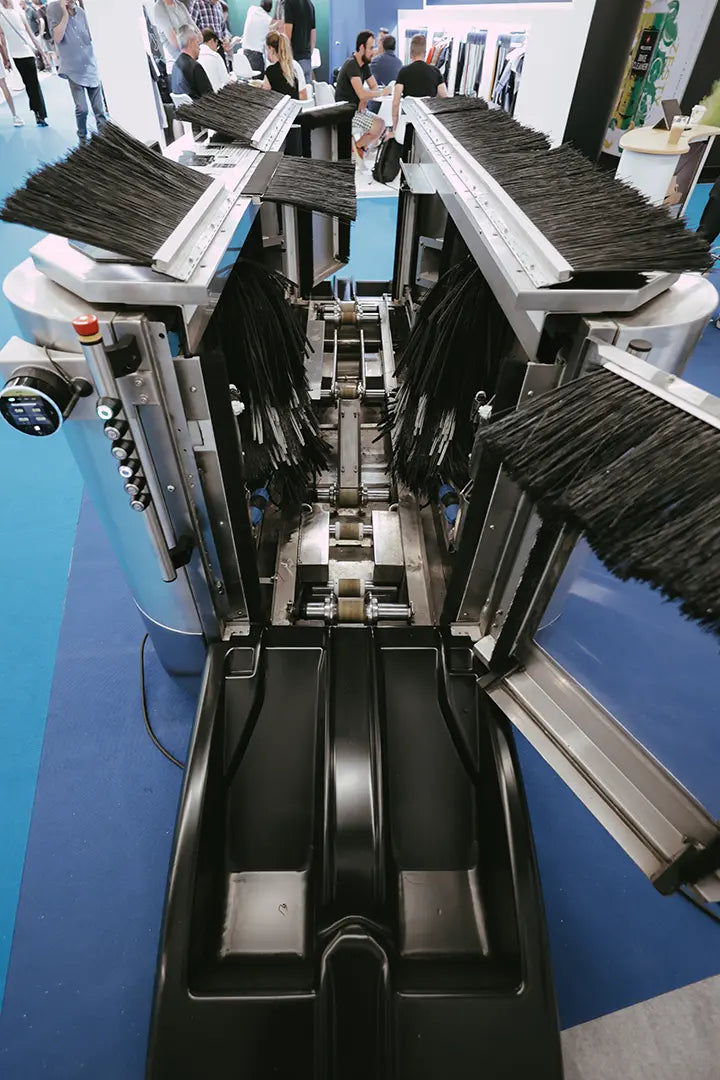

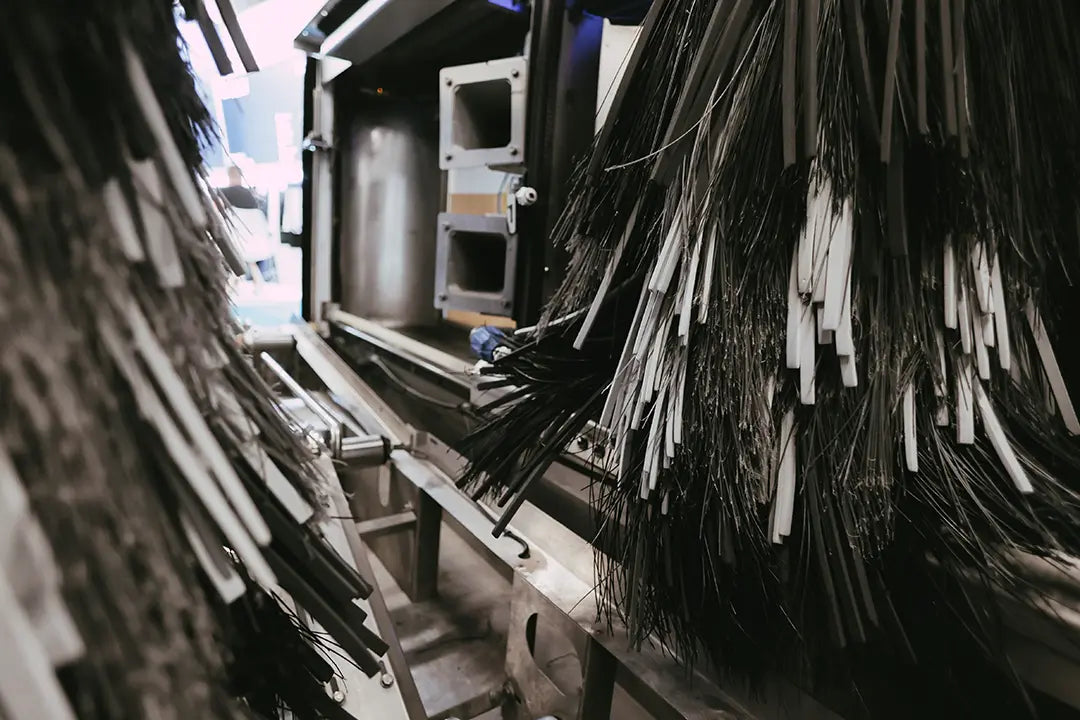

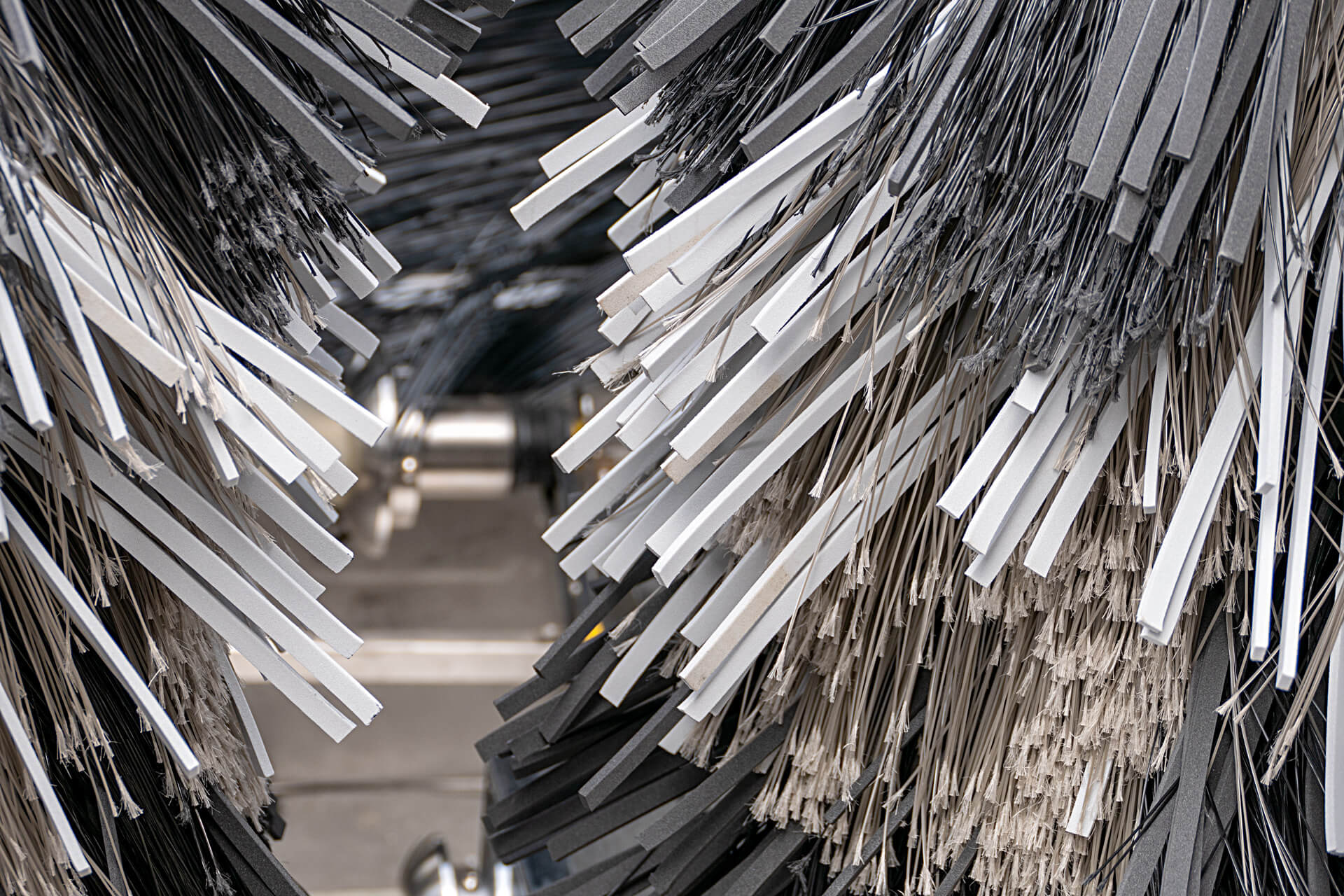

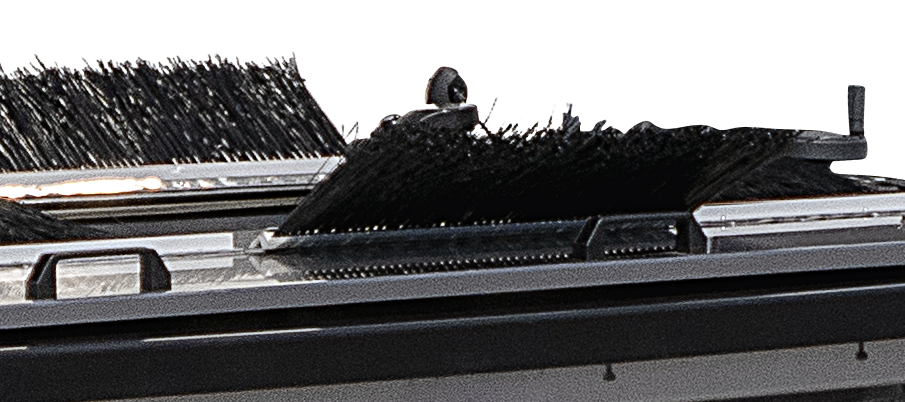

Anti-gravity Pendulum Wash Brushes

Mounted brushes reach higher areas on the bicycle for thorough cleaning coverage.

Pendulum brushes detail

LED Status Lighting

RGB lighting indicates current wash program status with distinct color codes for each cycle phase.

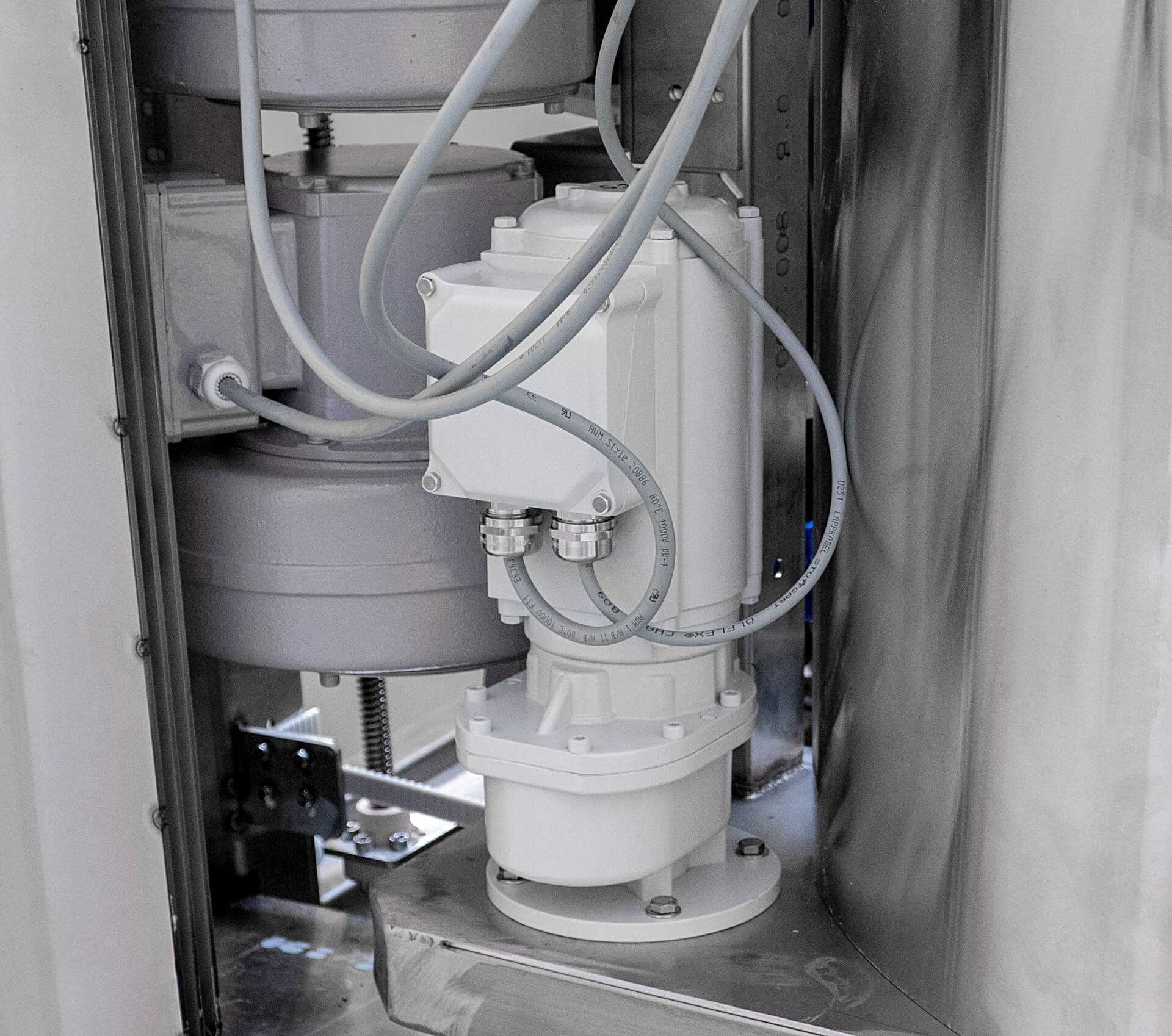

Direct Drive for Sled

Precision motor drives the brush sled assembly along the full length of the bicycle.

Direct drive detail

Direct Drive for Brushes

Independent brush motors provide optimal rotation speed for gentle yet effective cleaning.

Completely Rust-free Construction

Premium plastic and stainless steel down to the smallest screw — engineered for outdoor durability.

Cashless Payment System

Integrated touch display with contactless payment — card, NFC, and app-based transactions.

Cashless payment

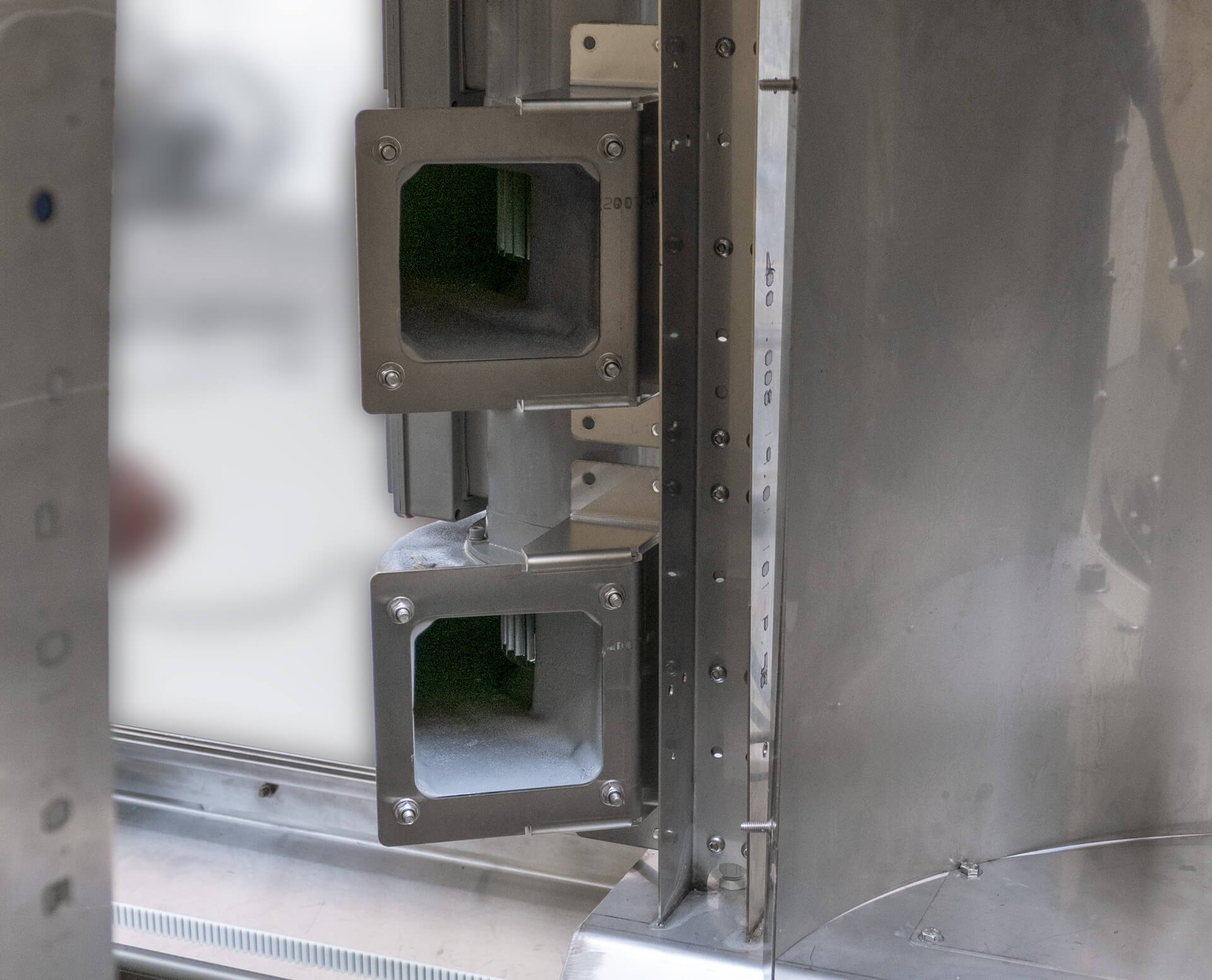

Integrated Dryer Unit

8 radial fans provide powerful yet gentle drying after the wash cycle.

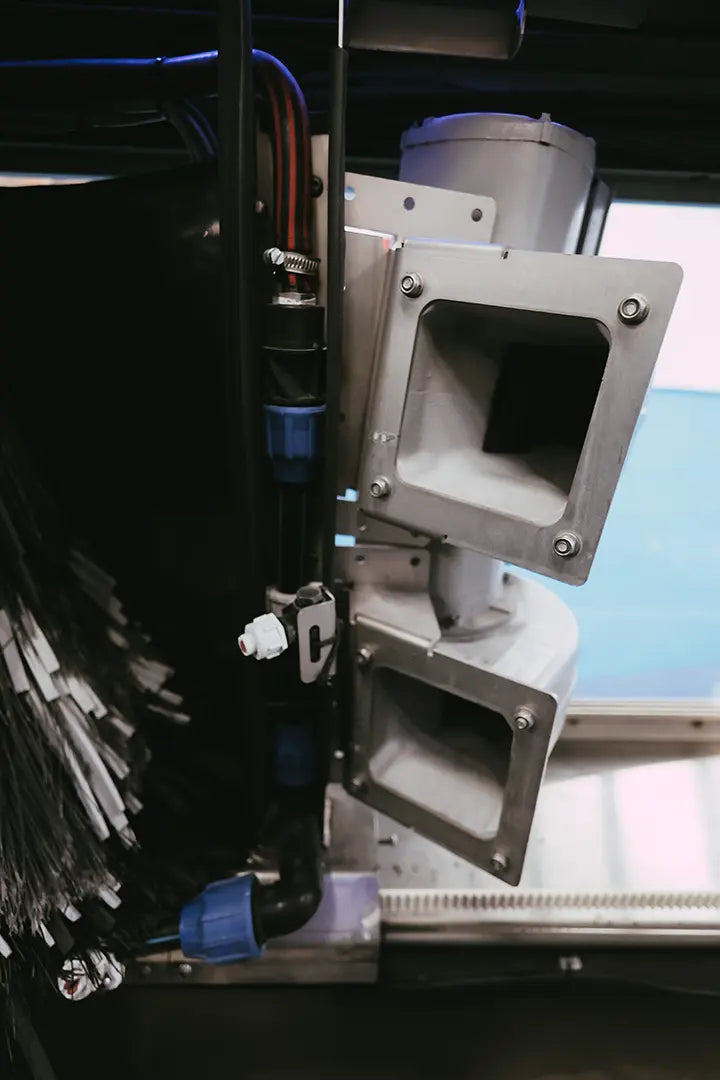

Dryer fans

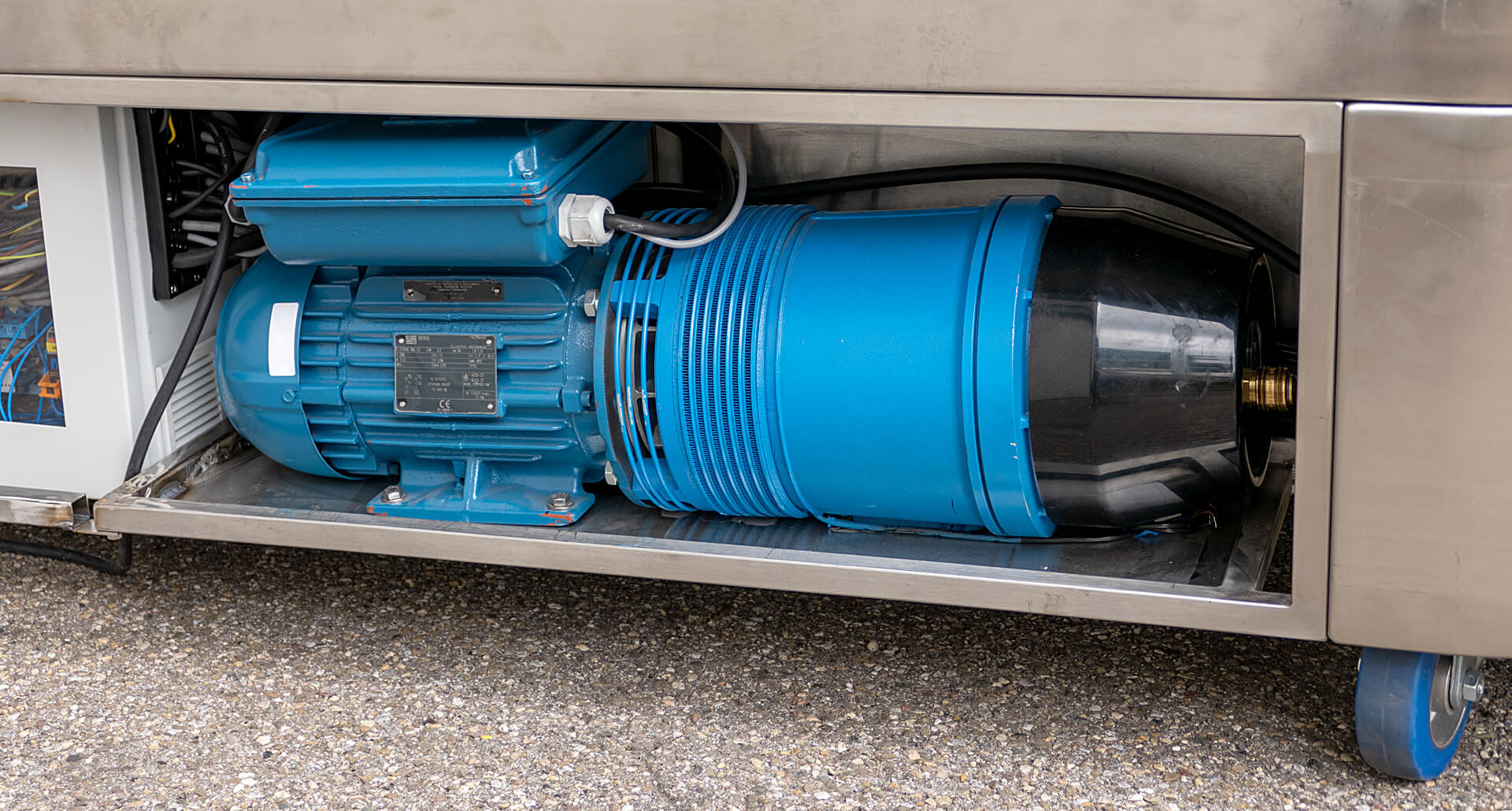

High-performance Blade Compressor

Industrial-grade compressor delivers consistent air pressure for the drying system.

Blade compressor

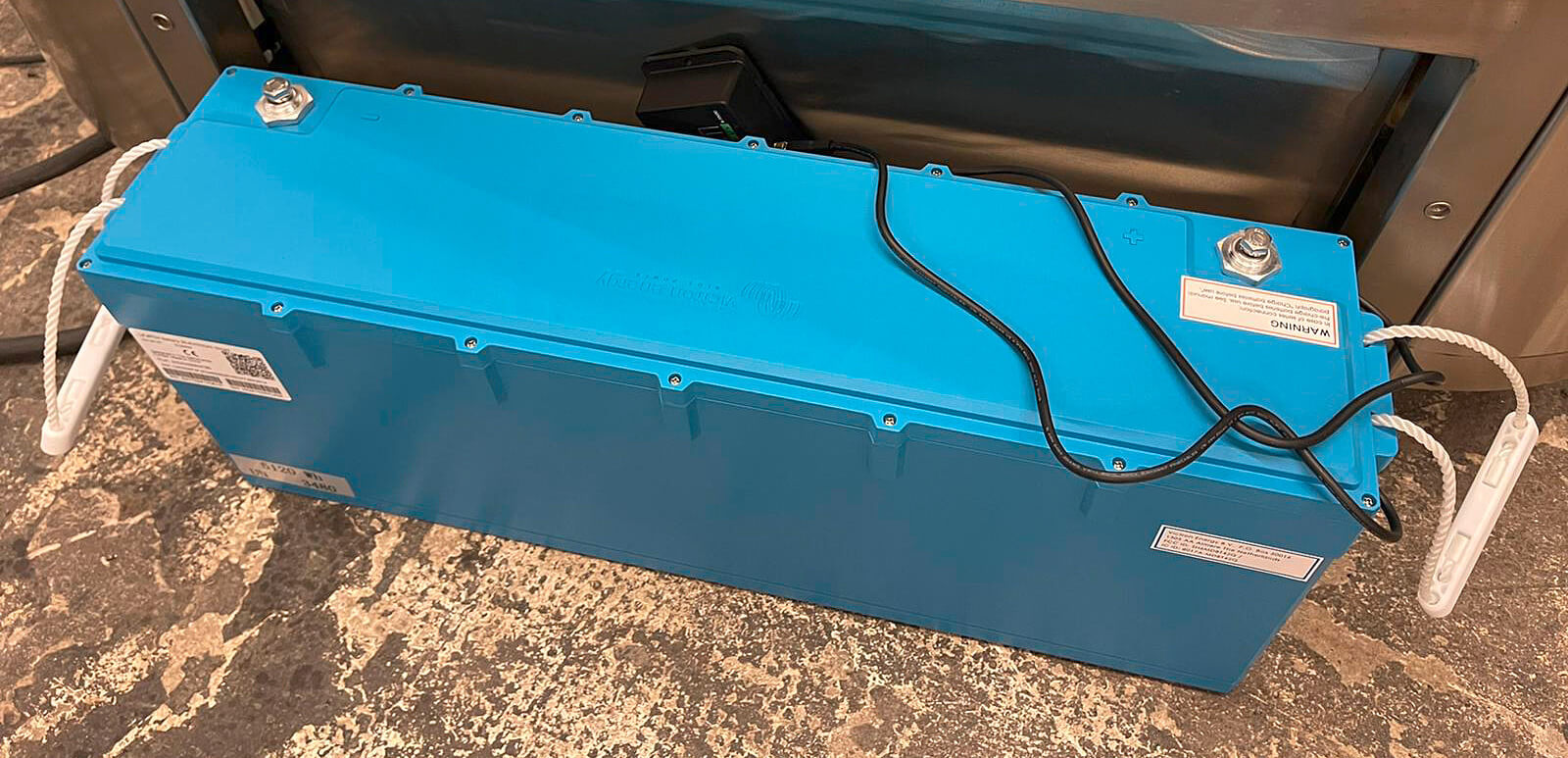

Lithium-ion Batteries

For mains-independent operation — enabling placement anywhere without power infrastructure.

Lithium-ion battery pack

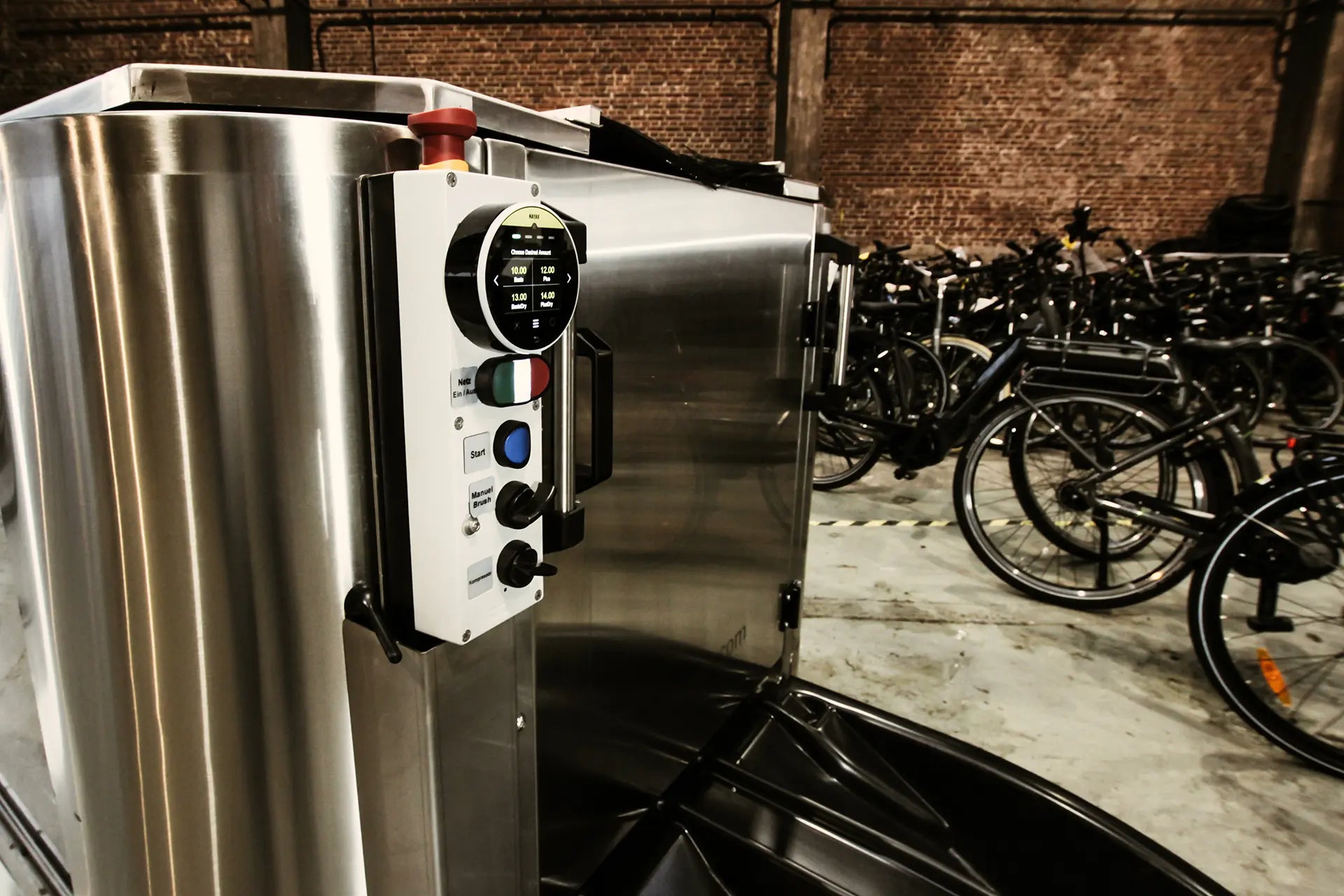

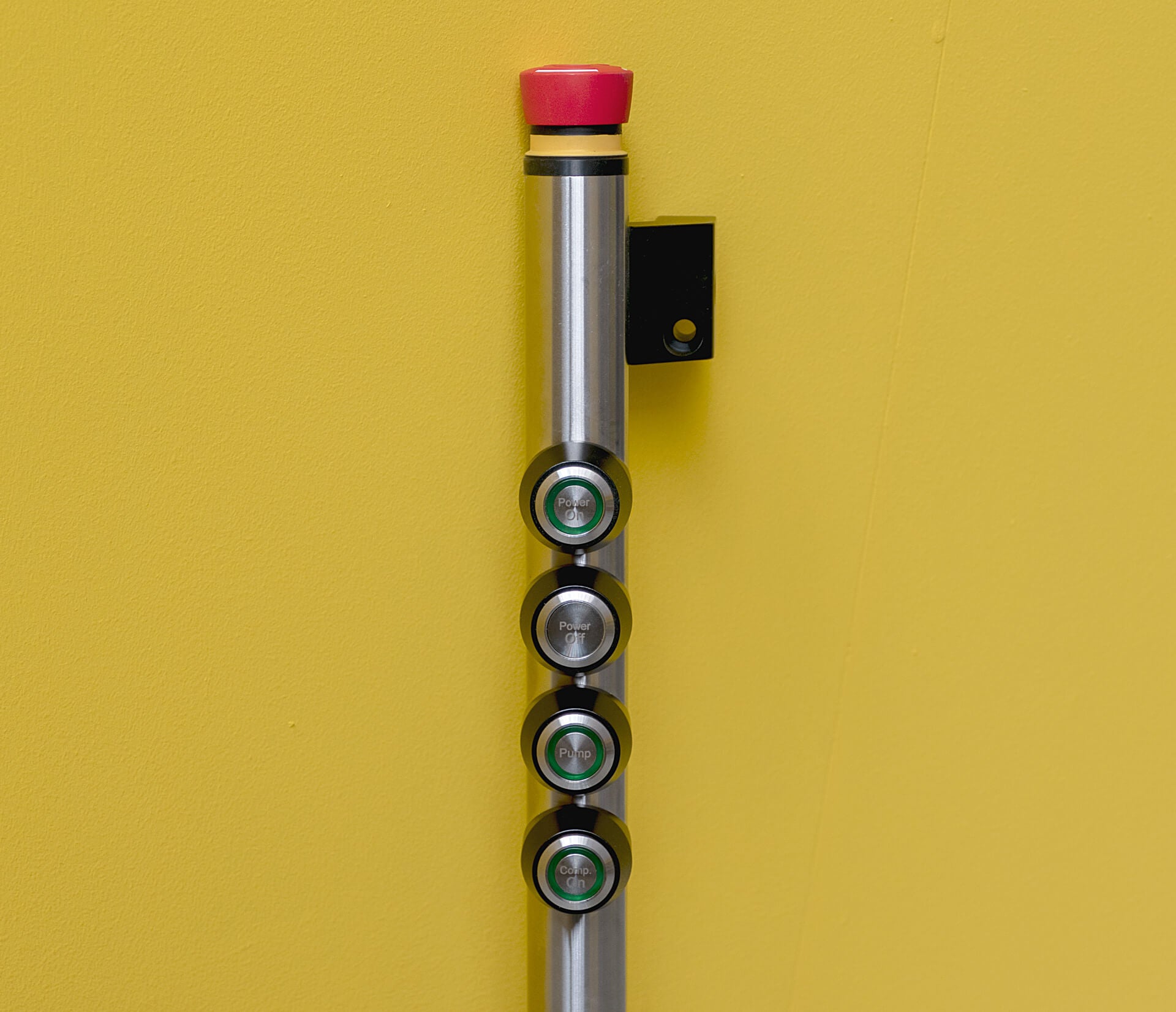

Control Unit in Handle

Ergonomically integrated control panel for intuitive operation and program selection.

Handle control unit
How It Works

See How the Pro Works

The bike is pushed into the machine. Spray nozzles and washing brushes are driven on a sled fully automatically past the bike.

  1. 1

    Pay First

    Contactless payment at the terminal — card or phone. No coins, no attendant.

  2. 2

    Pre-Clean (Optional)

    Heavy mud? Rinse the worst off with the optional pre-cleaning before the wash.

  3. 3

    Automatic Wash

    Press Load Bike and the brushes draw the bike inside. Nozzles and brushes then travel past it on a powered sled.

  4. 4

    Integrated Drying

    After the wash, the air-dry stage clears the water. Take the bike out and ride away.

Reference

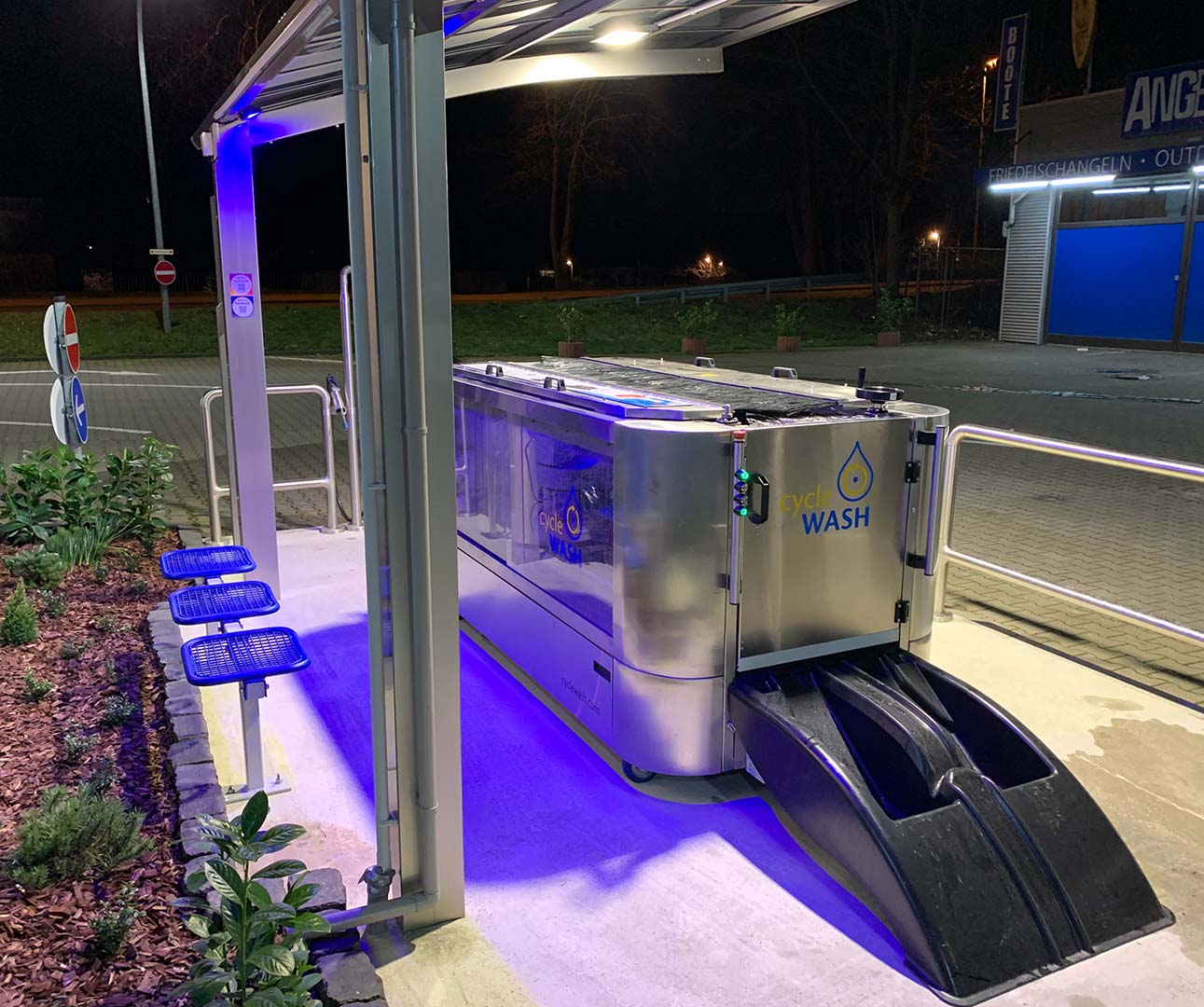

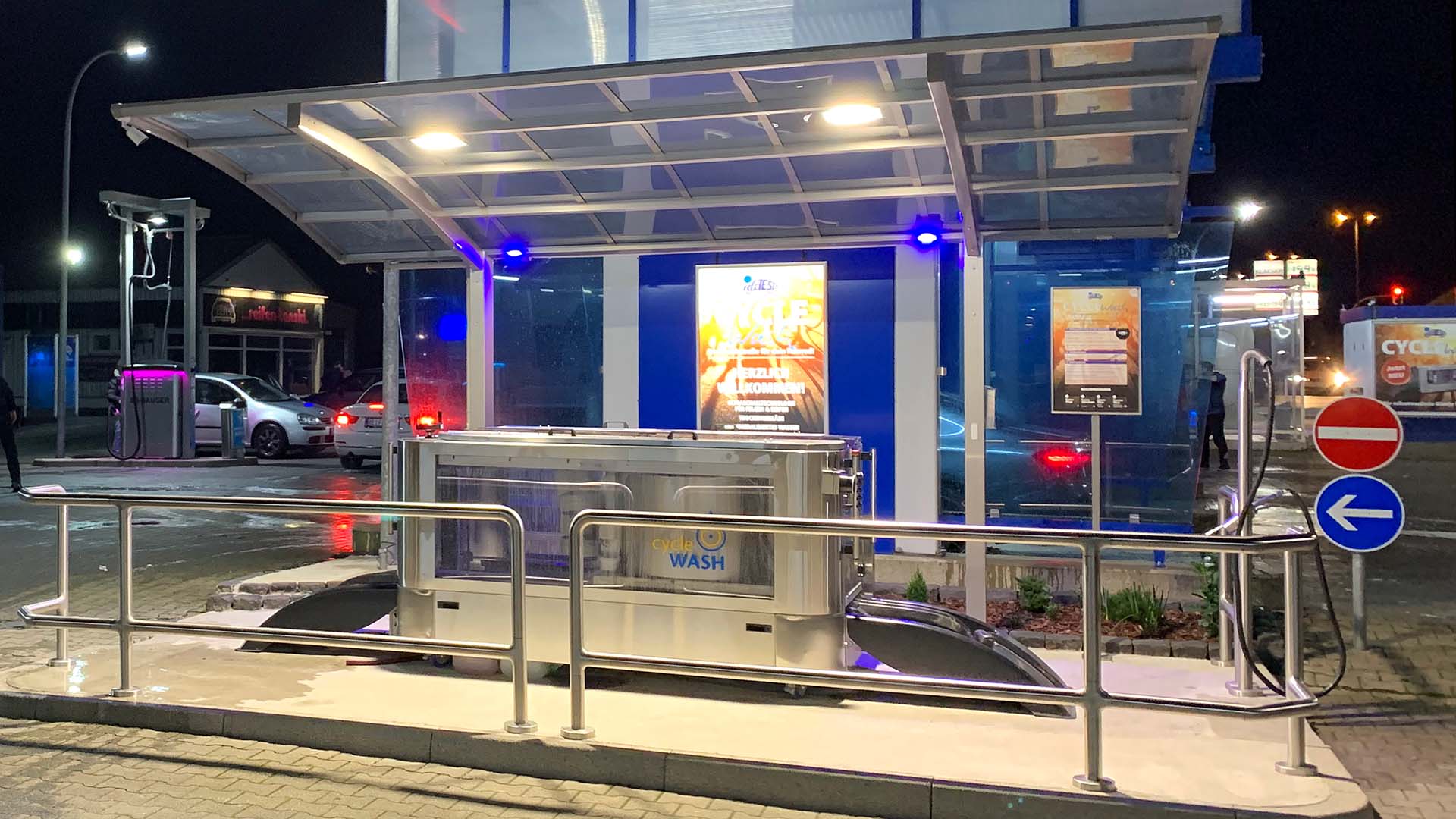

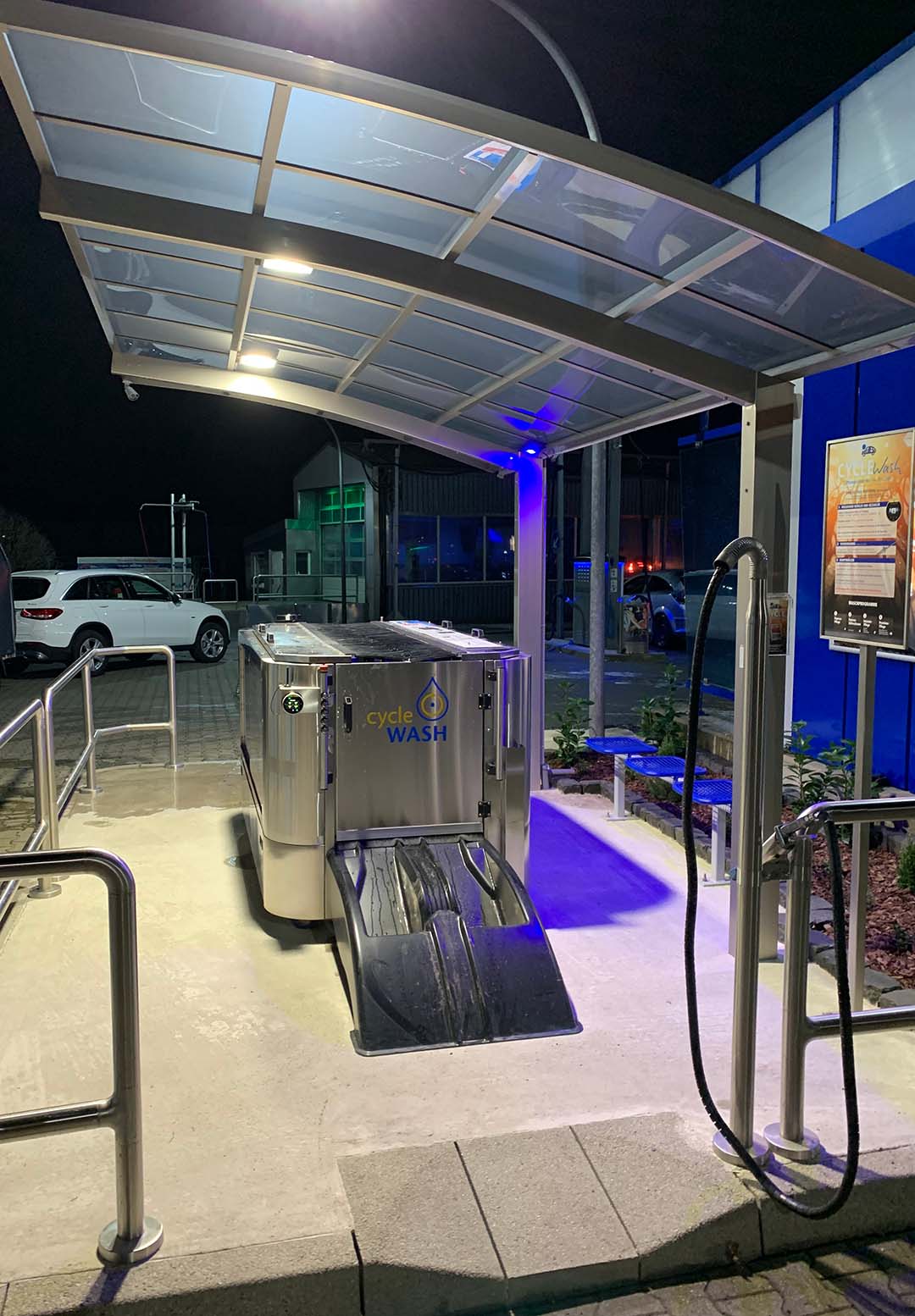

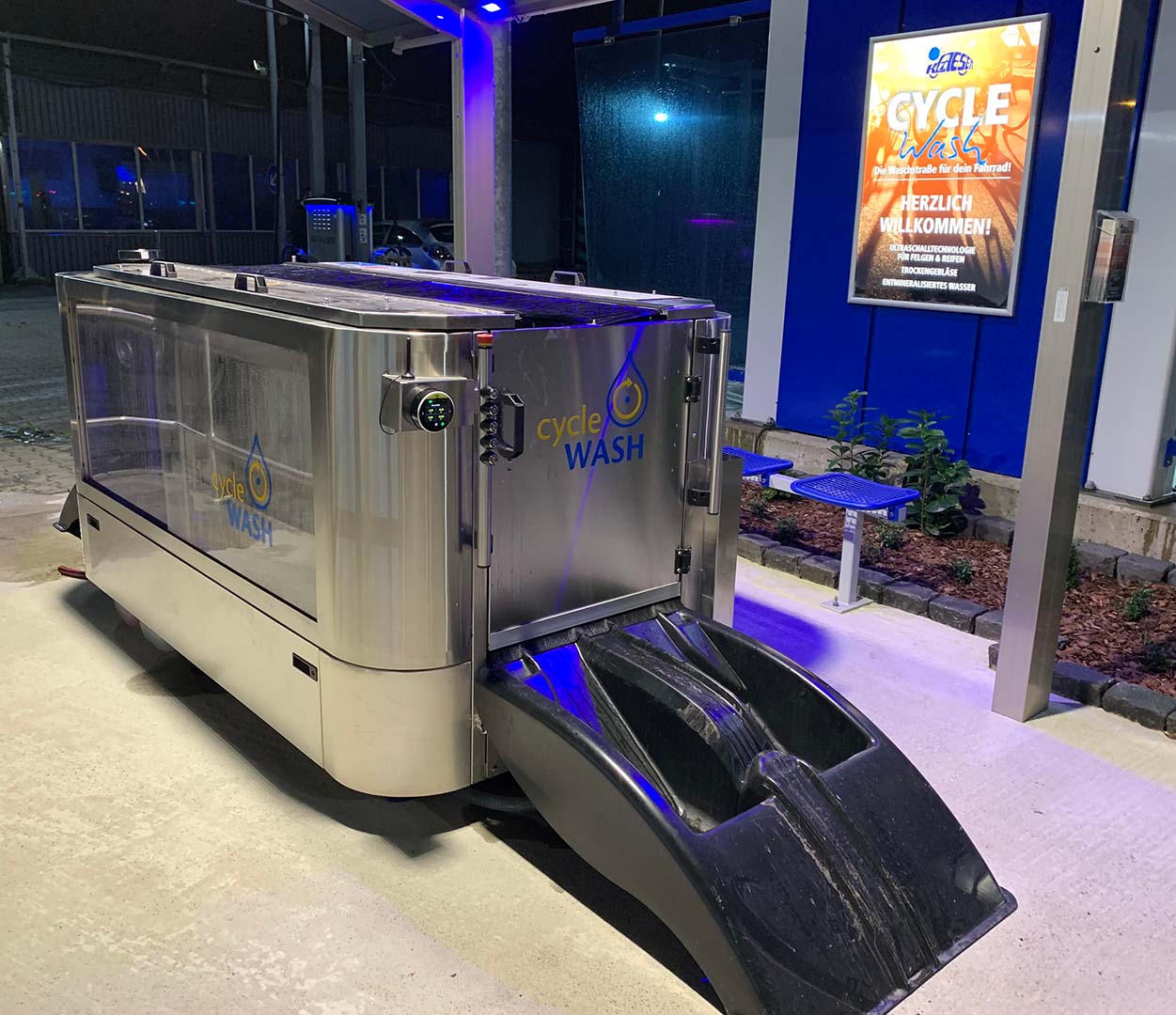

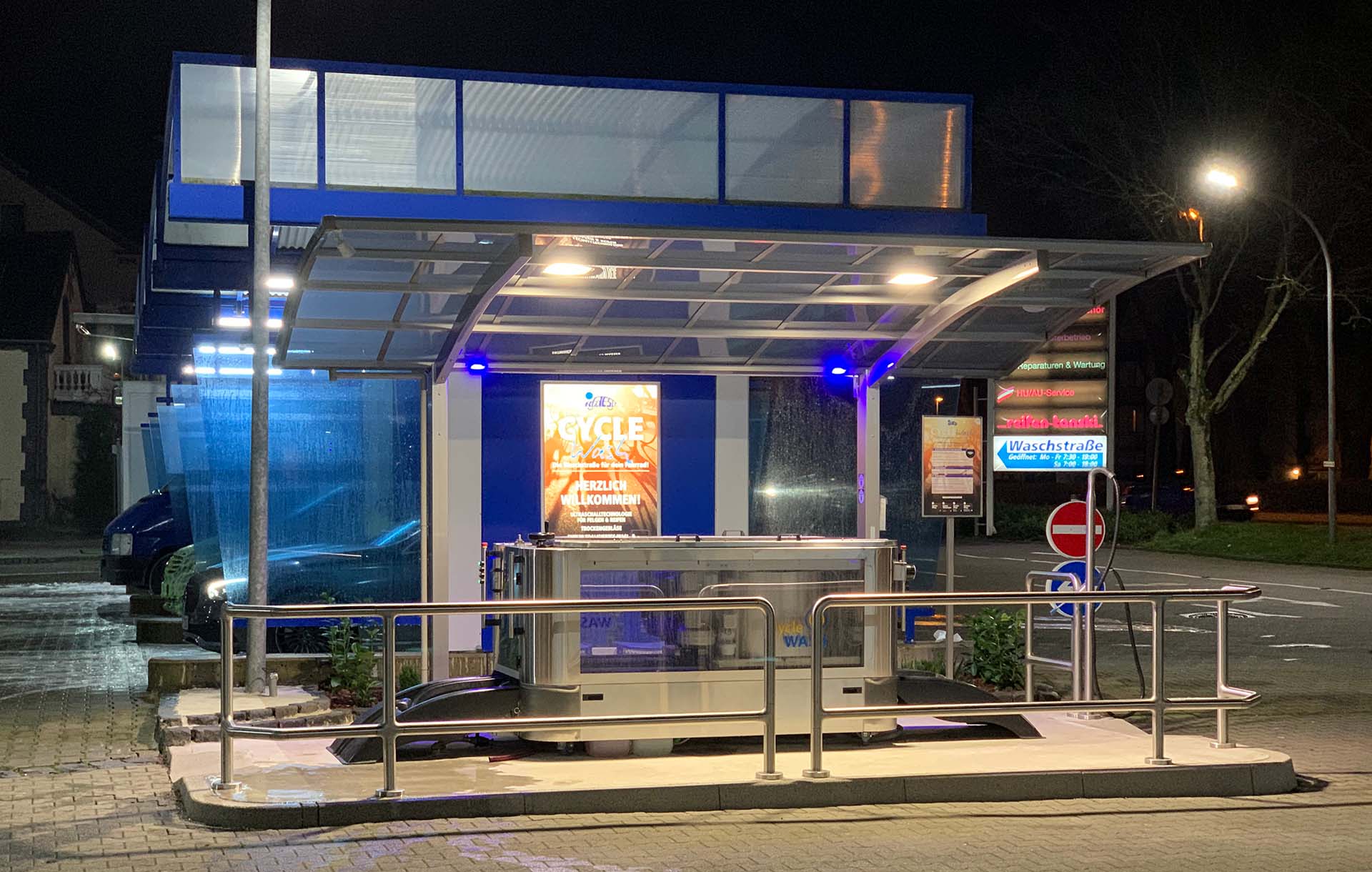

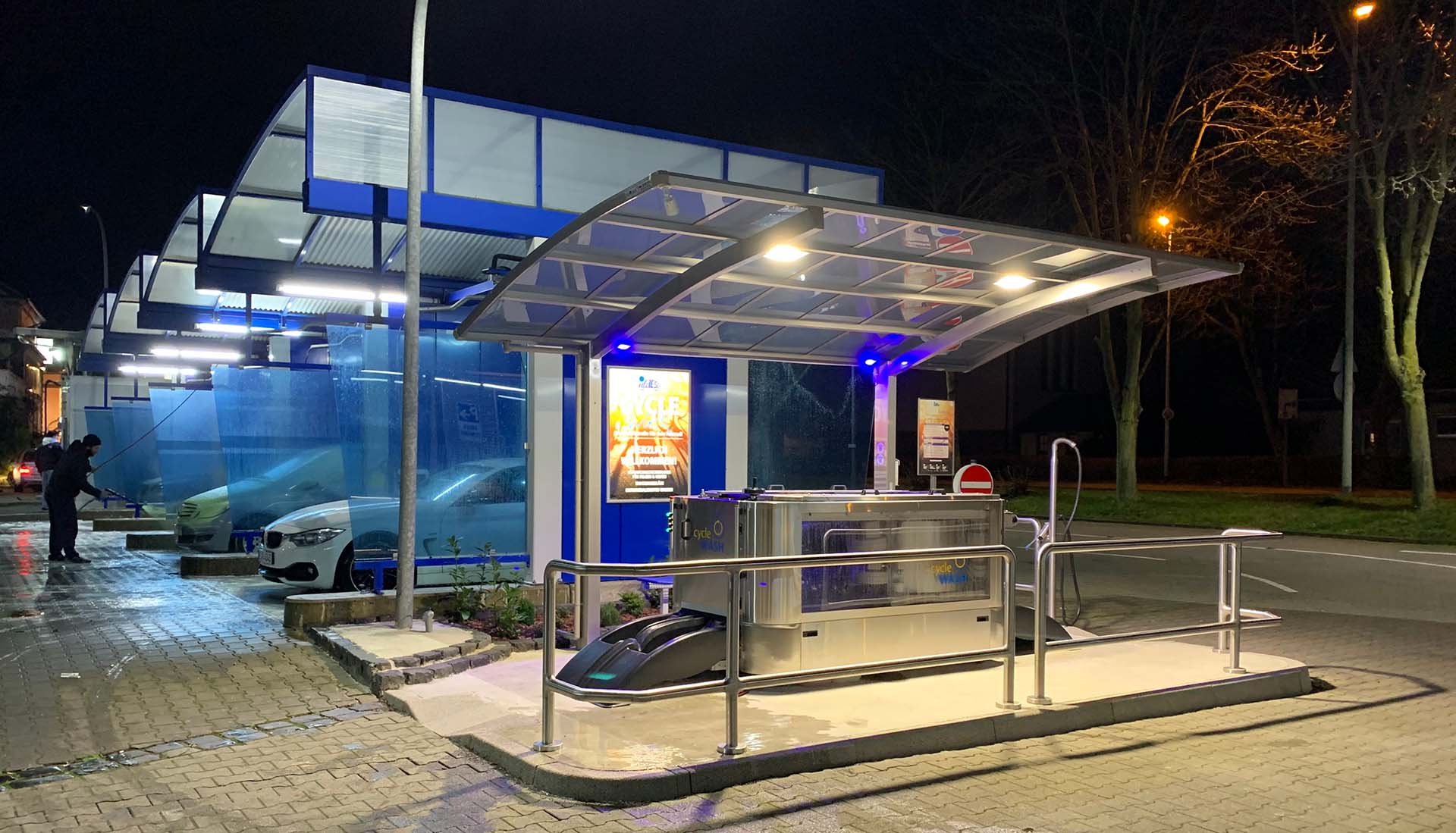

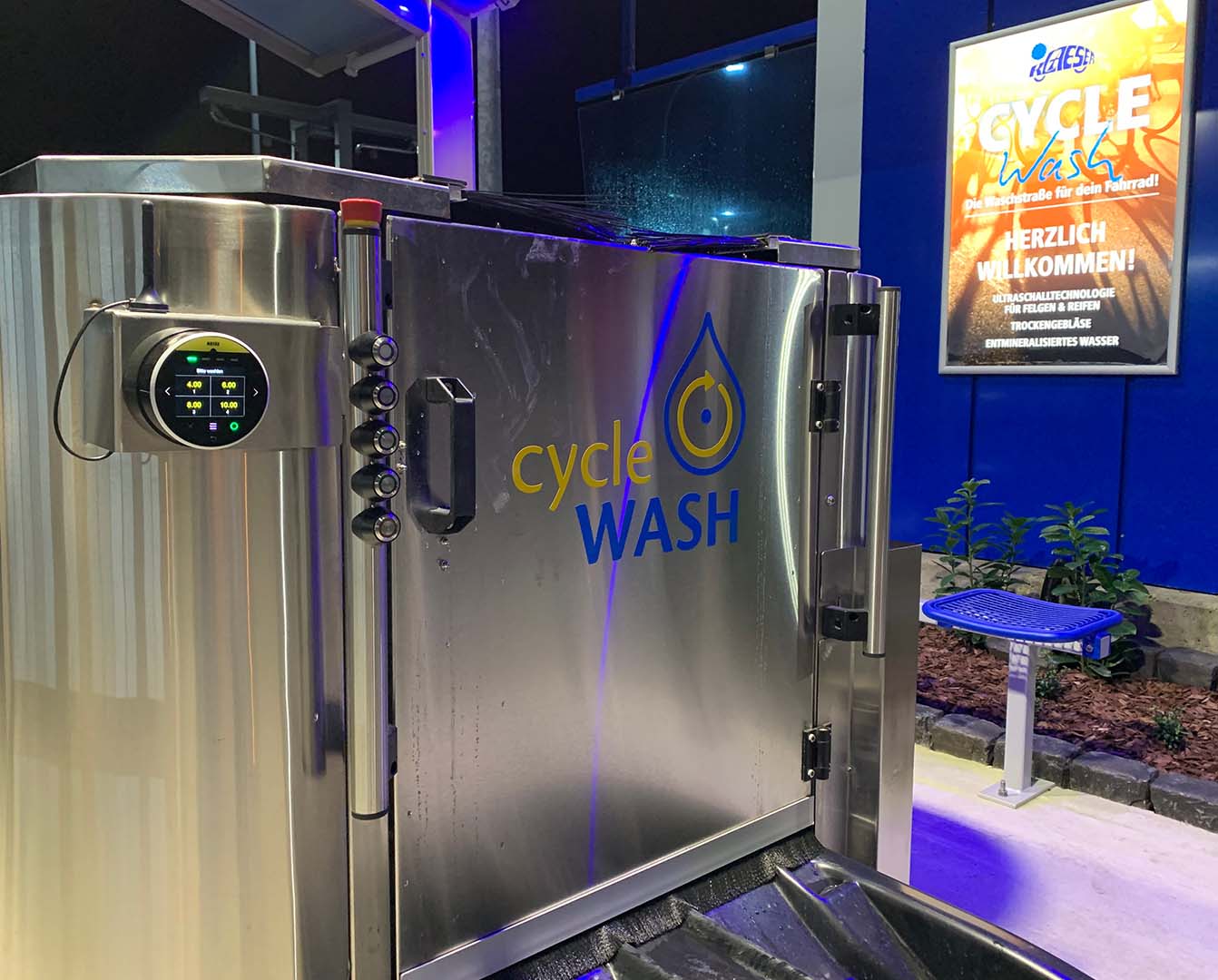

TCS Velo-Waschanlage

The Touring Club Suisse runs cycleWASH Pro as a public bike wash — self-service, sited alongside the car wash bays, card-paid and unattended.

TCS Velo-Waschanlage — Their brand, our machine
TCS Velo-Waschanlage — Self-service, contactless payment
TCS Velo-Waschanlage — ECO · ECO+DRY · PREMIUM · PREMIUM+DRY
TCS Velo-Waschanlage — Next to the car wash
TCS Velo-Waschanlage
Four programmesECO · ECO+DRY · PREMIUM · PREMIUM+DRY
Price per washfrom CHF 6.–
OperationSelf-service, contactless payment
SiteWash park, covered, year-round

Their brand, our machine

The installation carries TCS livery throughout — wrap, price board and canopy. Underneath it is a standard cycleWASH Pro.

Next to the car wash

Placed among the existing bays: same entrance, same payment, same opening hours. The bike wash uses forecourt that was already there.

Explains itself

Choose a programme, pay by card, load the bike, start the wash. The board at the entrance sets out five steps — no staff briefing needed.

Washing & drying

Demonstration

5 explainer videos

Five clips shot on the machine itself — siting, the wash pass, ultrasonics and the controls, plus an operator’s own full walkthrough.

01

System Overview

A walk around the machine — footprint, ramps, loading side and where it sits on a forecourt.

Spoken in English
02

How Does It Work

Load the bike, press start, and watch the brush sled travel its full pass end to end.

Spoken in English
03Option

Ultrasonic Rim Cleaning

An option on the Pro, and the only stage that cleans the rim itself: the ultrasonic bath lifts brake dust and grime out of the rim bed and the spoke nipples without scrubbing. Quoted on request.

Spoken in English
04

The Control Box

Inside the control box — programme selection, contactless payment and the operator diagnostics.

Spoken in English
05

An Operator’s Walkthrough

Four minutes on a working Pro, filmed by Lavovélo in Lyon, who run our machines in France under their own name.

Spoken in French

Full Pro Platinum demo

Watch the full demo on YouTube

Choose Your Edition

Pro Editions

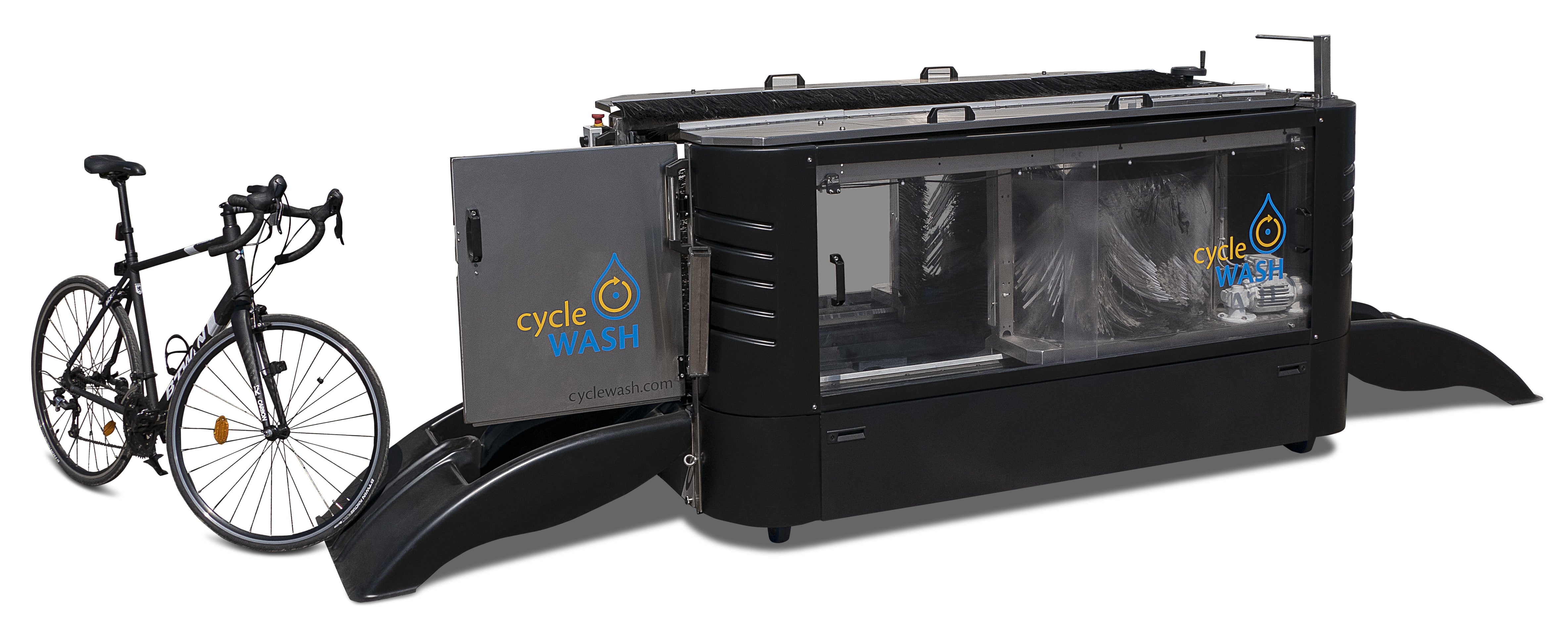

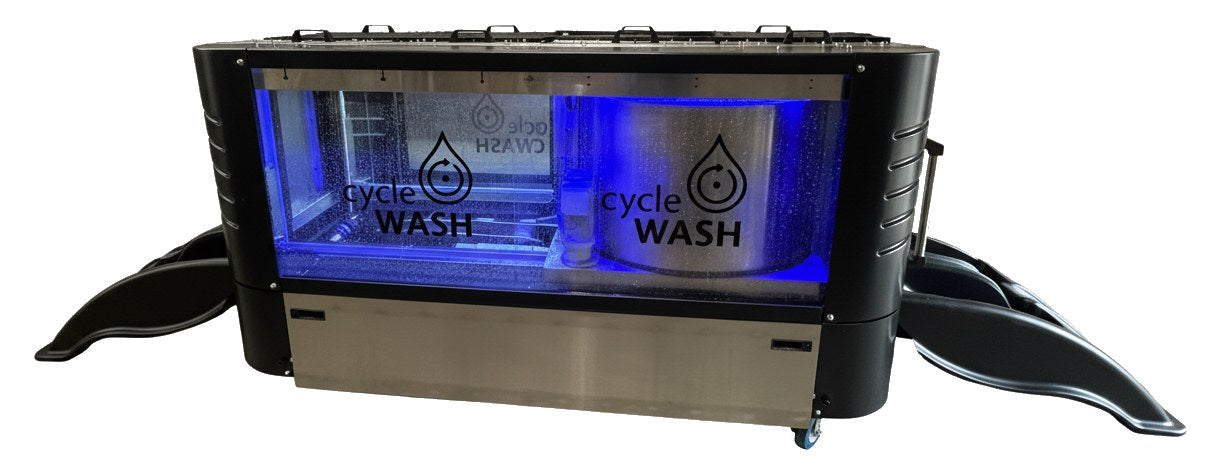

Pro Basic

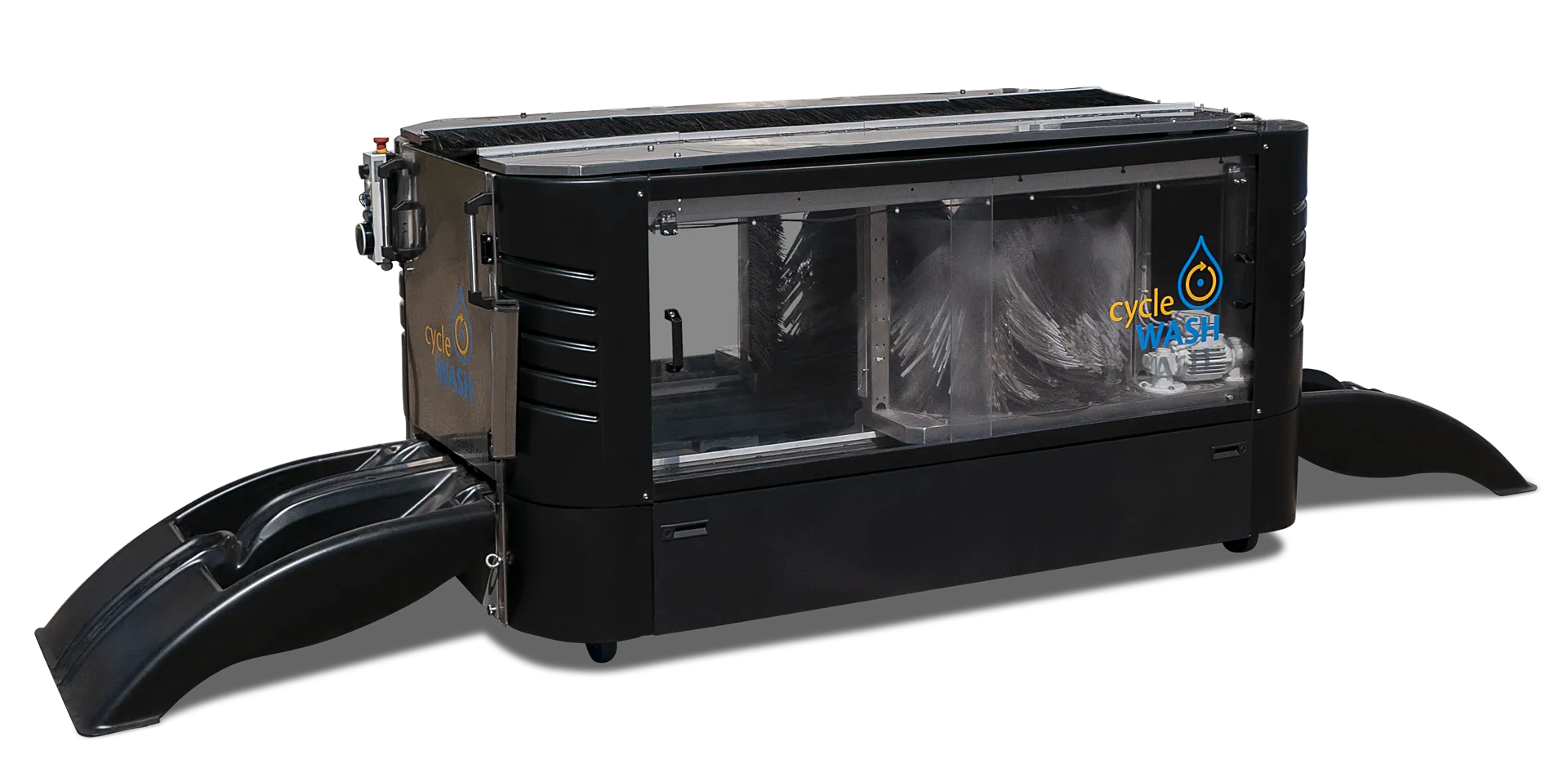

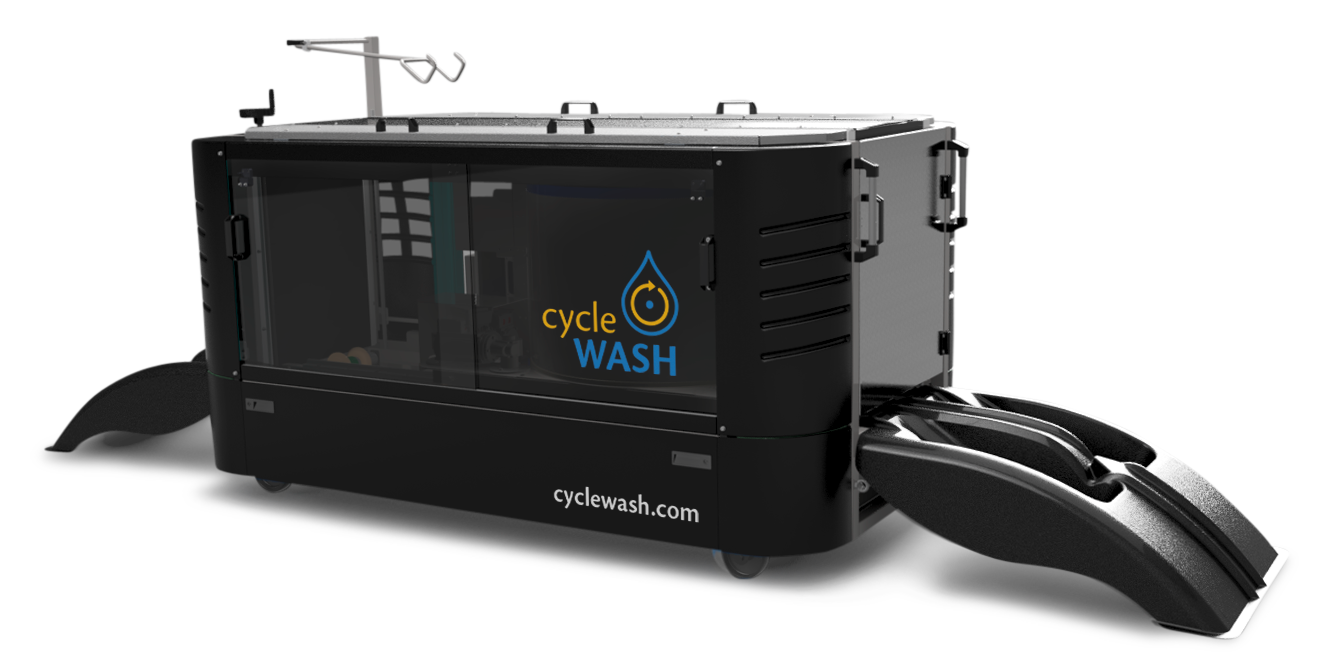

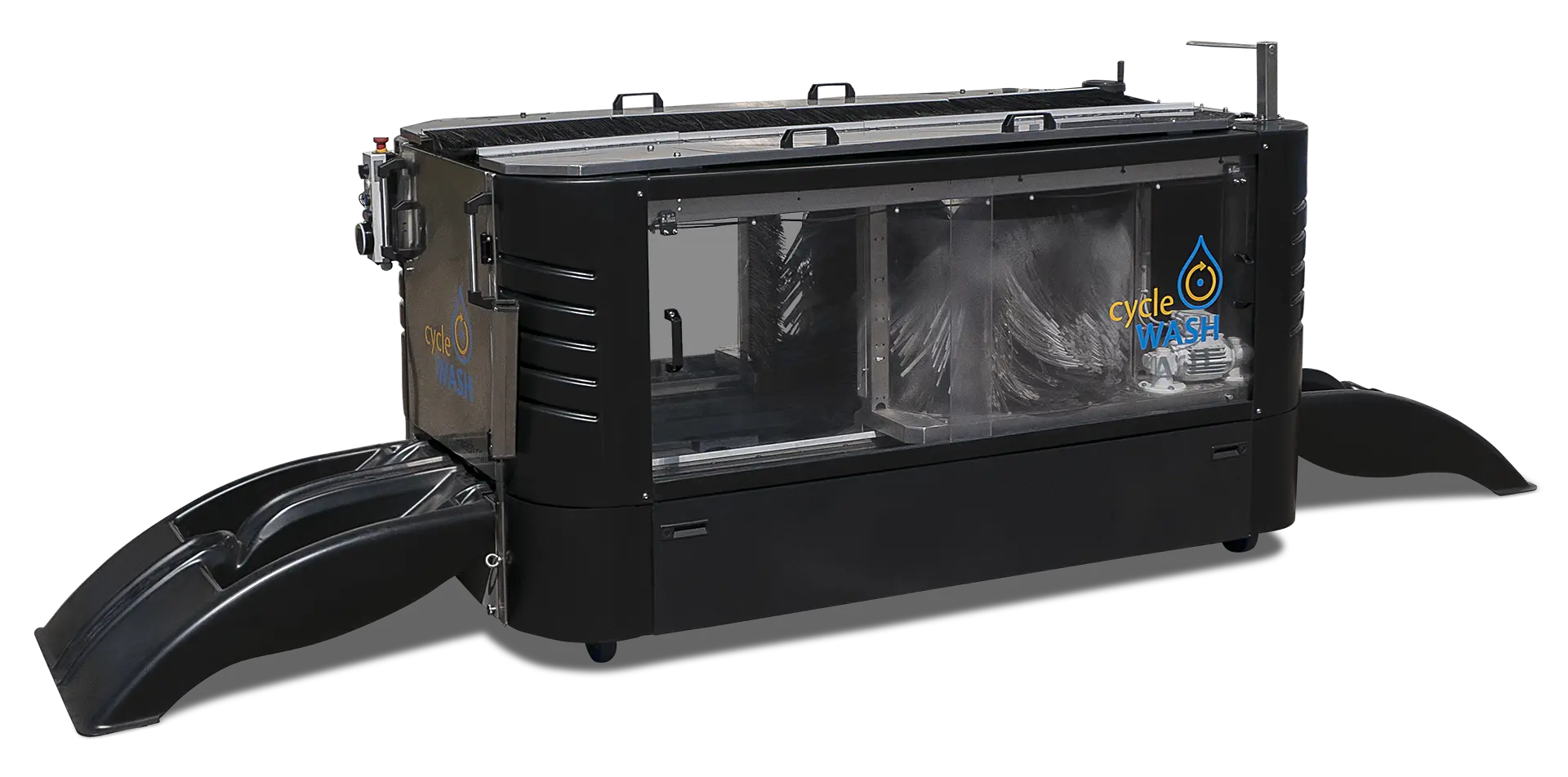

cycleWASH Pro Black — studio

Pro Basic

Stainless steel frame and internals, with plastic covers. Same wash, same parts — a lower entry price.

Shop now →

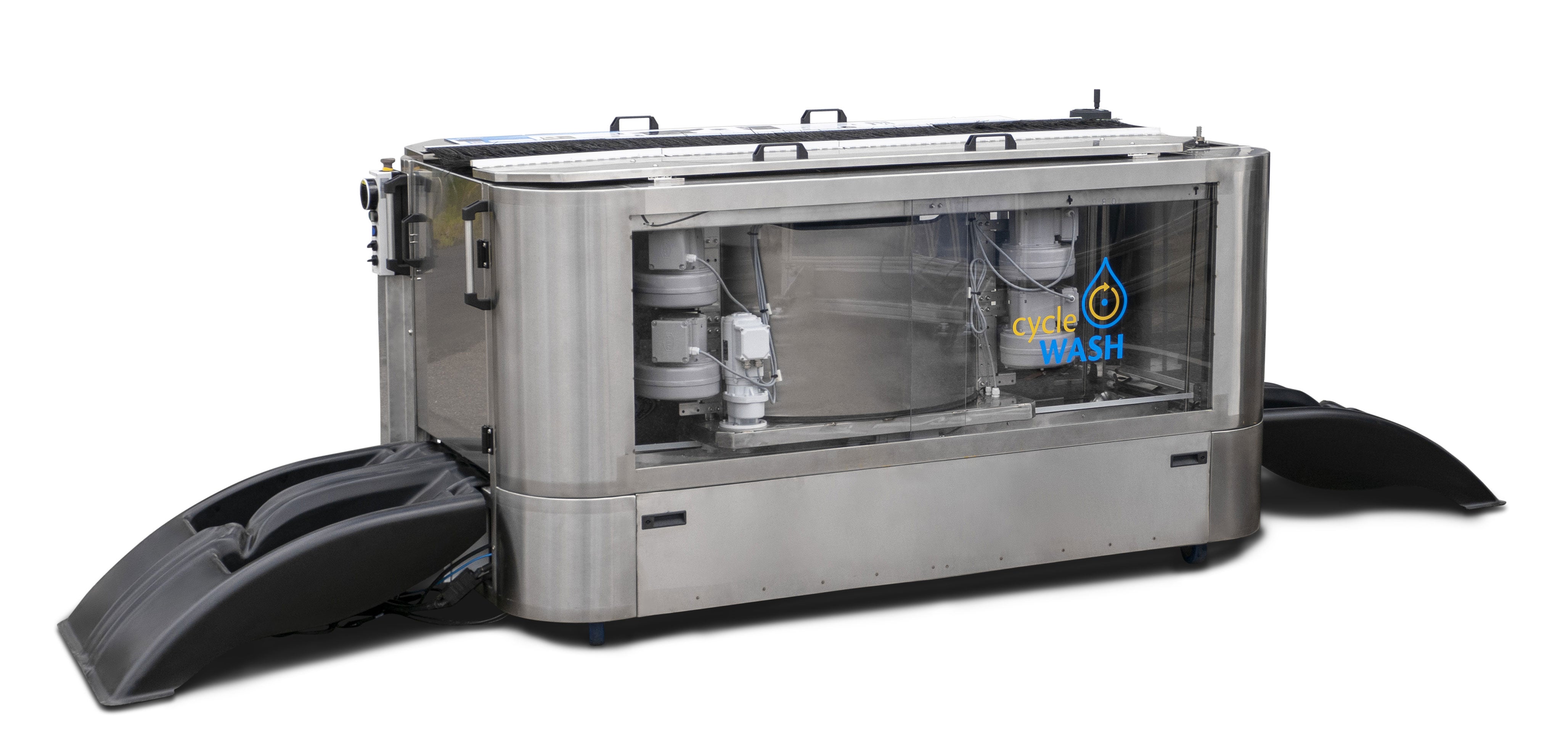

Pro Platinum

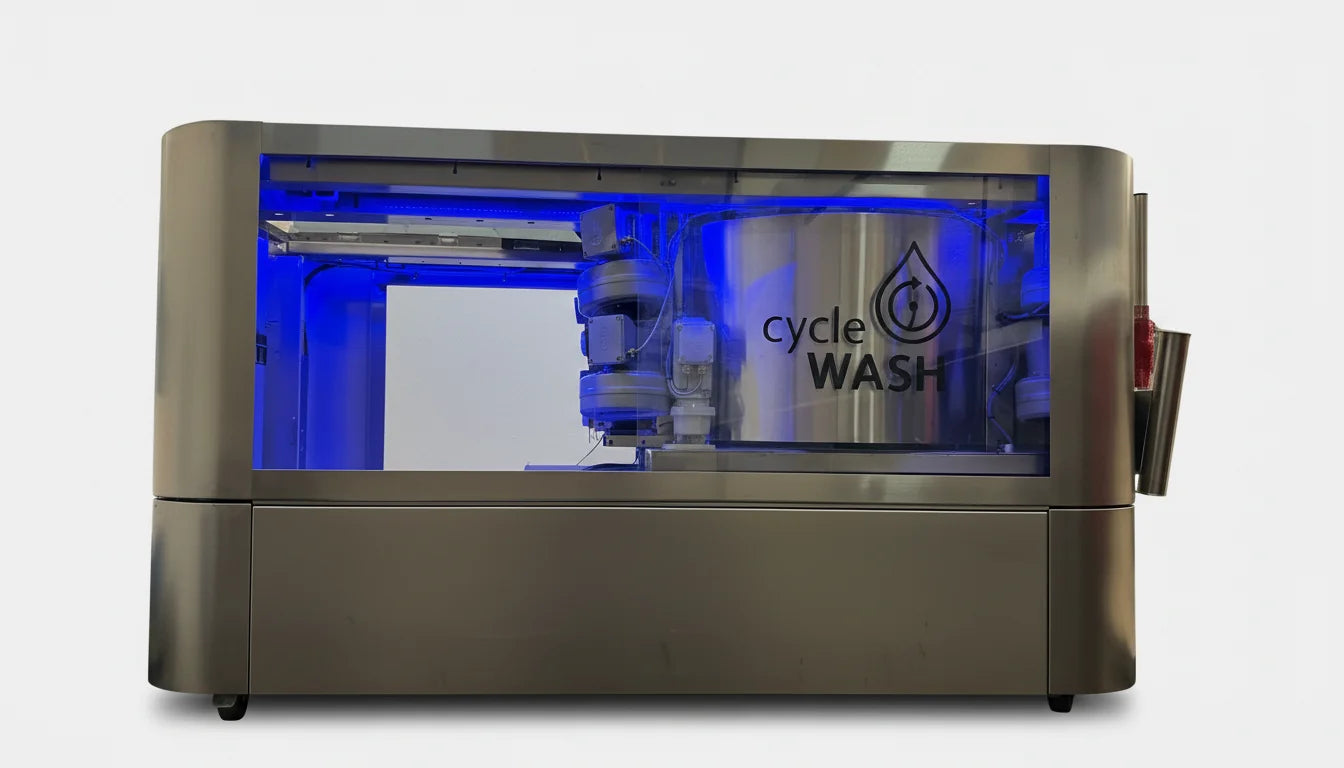

cycleWASH Pro Platinum — stainless edition with ramps

Pro Platinum

Everything stainless steel, covers included. Identical wash performance, superior materials.

Shop now →
Dual Operating Modes

ECO vs STANDARD Mode

☘ ECO Mode

  • No fixed water connection required
  • Fill with a few buckets of water
  • Closed water circuit with integrated filter
  • Can wash without any detergent
  • ~3 litres per wash cycle
  • Ideal for remote or mobile deployments

★ STANDARD Mode

  • Fixed fresh water connection
  • Automatic detergent dosing system
  • High throughput capacity
  • Consistent cleaning quality
  • Optimal for permanent installations
  • Maximum cleaning performance
Engineering Excellence

10 Features

1

STANDARD & ECO Modes

Dual operating modes for maximum flexibility in any environment.

2

XL Interior

Accommodates bicycles up to 2.1 metres in length.

3

Ergonomic Design

User-friendly ergonomic design for effortless daily operation.

4

Patented Integrated Drying

8 radial fans deliver powerful drying in a single pass.

5

3-way Pendulum Brushes

Mounted anti-gravity brushes reach every surface.

6

Electronic Torque Limiter (IP65)

Protects delicate components with intelligent force control.

7

“Bike Load” Loading Aid

Patent-pending system for easy bicycle loading.

8

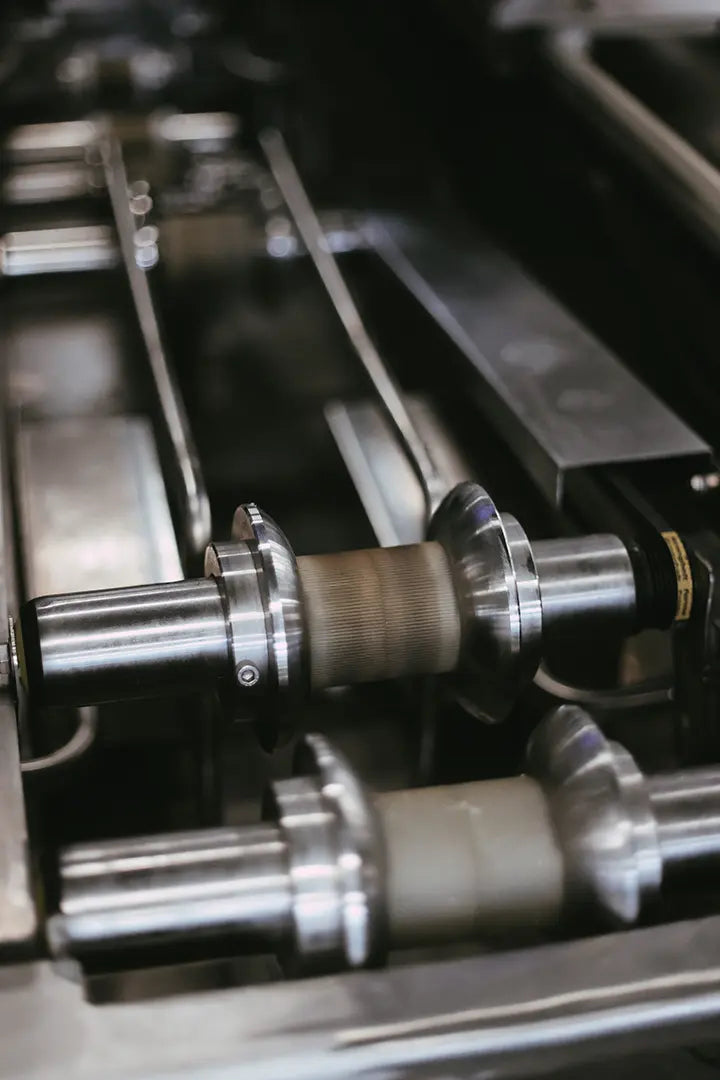

Anti-slip Wheel Turning Unit

Optimized rotation mechanism for secure wheel cleaning.

9

Optimized Window Frame

Easy access for maintenance and servicing.

10

Better Component Access

Modular design for rapid service and part replacement.

cycleWASH Pro in the studio, doors open and tank lit
Built to Last

Equipment Details

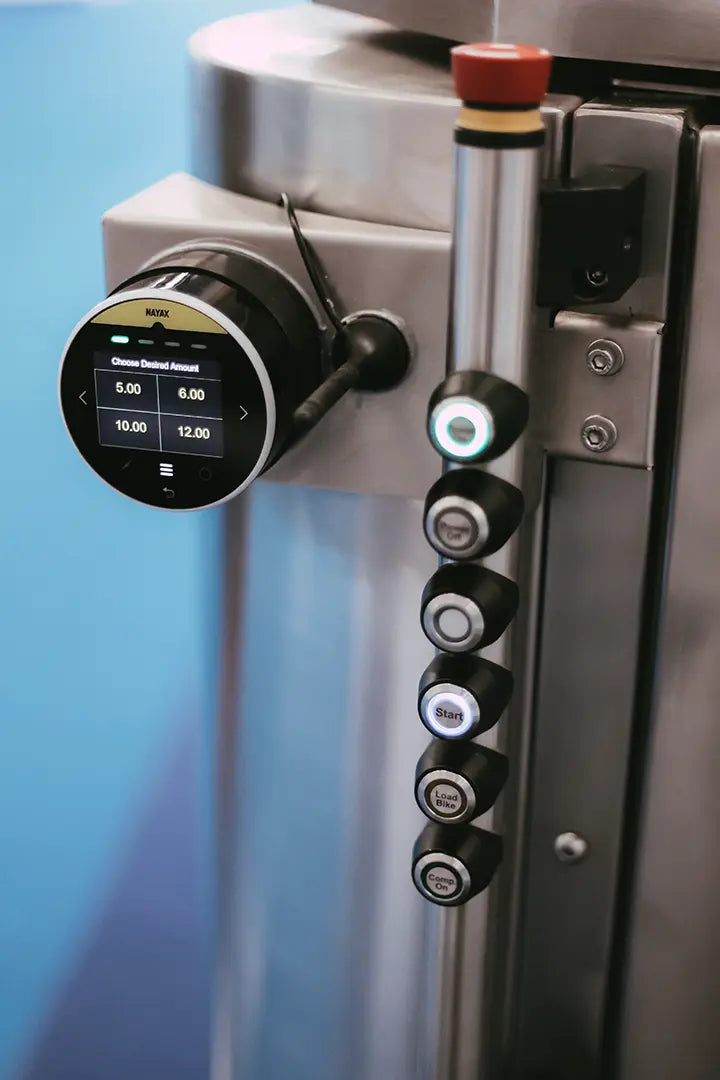

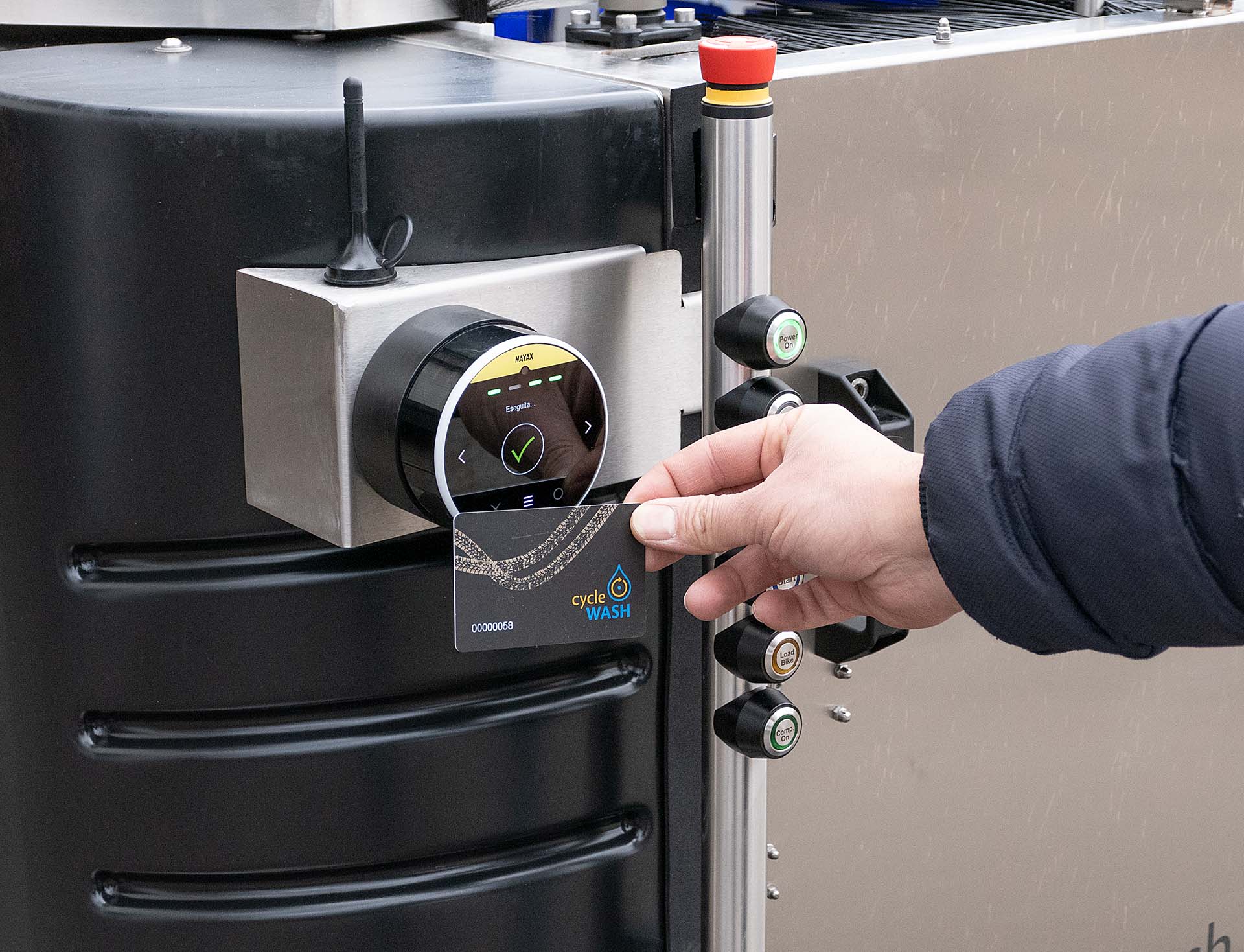

Cashless payment with touch display

Cashless Payment with Touch Display

Integrated Nayax payment terminal with full touch-screen program selection.

Load-Bike function step 1

Load-Bike Function

Patent-pending 3-step loading system: position, secure, and start — effortless every time.

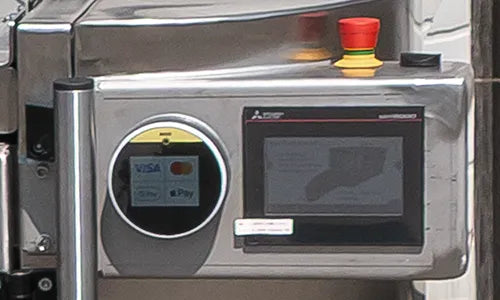

Touch display close-up

Touch Display Interface

High-contrast 7" display with intuitive program selection and real-time status feedback.

Fully integrated components

Fully Integrated Components

All mechanical, electrical, and hydraulic systems housed within a single compact enclosure.

Ultrasonic Rim Cleaning

Ultrasonic Rim Cleaning

An option on the Pro, and the only stage that cleans the rim itself: the ultrasonic bath lifts brake dust and grime out of the rim bed and the spoke nipples without scrubbing. Quoted on request.

Solar inverter and water treatment

Inverter for Solar & Water Treatment

Optional solar panel integration with Li-ion battery storage and built-in water recycling system.

Included as Standard

  • Wheel rotation unit with rim cleaning brushes
  • Standard fresh water mode
  • Stainless steel frame and internals with plastic covers (Basic)
  • Wash brushes, water nozzles and piping
  • Standard push-button controls

Optional Equipment

  • ECO mode with closed-circuit water recycling
  • Solar power supply (inverter + lithium batteries)
  • Contactless payment (Apple Pay / Google Pay)
  • Remote monitoring & IoT diagnostics
  • High-performance compressor
  • Platinum edition — stainless steel throughout, covers included
  • Multi-colour status LED
  • Touch controls
Engineering Data

Technical Specifications

Air — Compressor 2.2 kW high-performance blade compressor
Air — Dryer 8 radial fans, 4 kW peak
Water (STANDARD) Fixed fresh water connection with automatic detergent dosing
Water (ECO) Closed circuit system, approx. 3 litres per wash cycle
Energy 1–4 kVA (optional solar operation with Li-ion batteries)

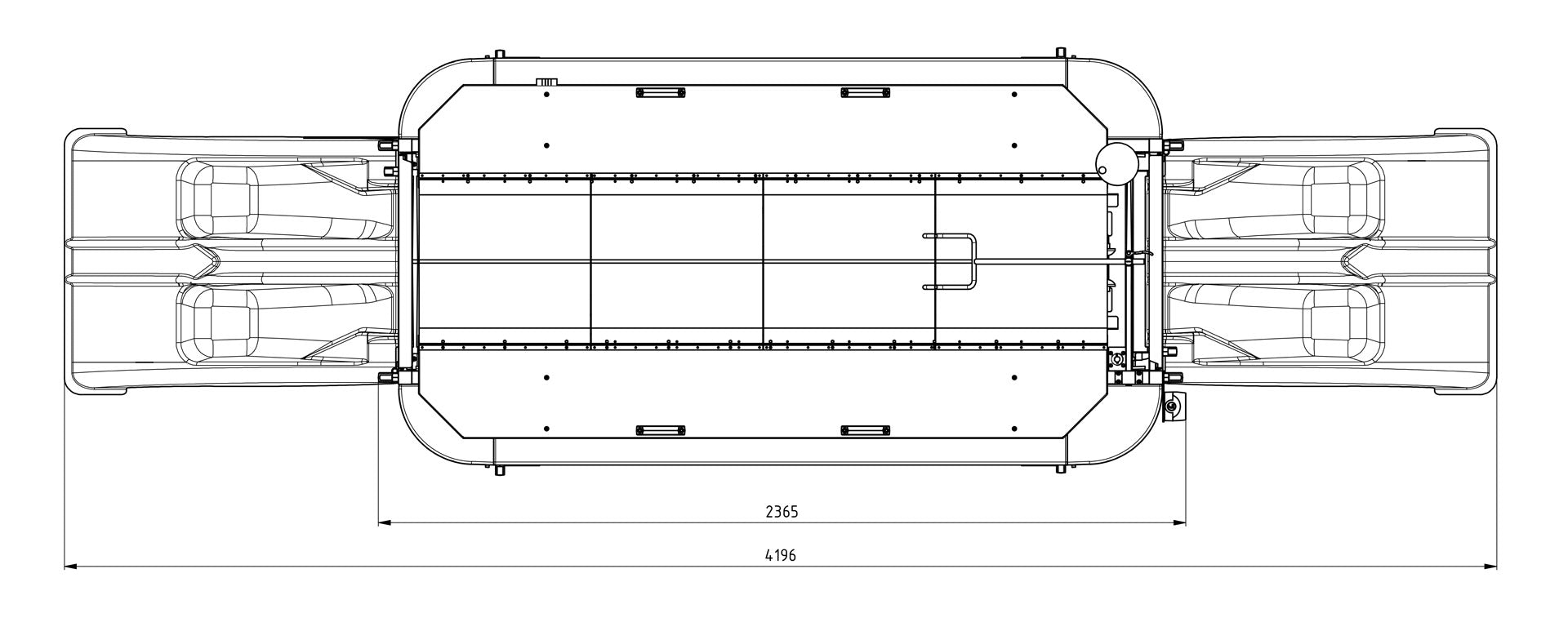

Dimensions (without ramps) 2365 × 1255 × 1235 mm (L × W × H)
Dimensions (with ramps) 4200 × 1255 × 1475 mm (L × W × H)
Weight 550–650 kg (depending on edition)
Interior XL — accommodates bikes up to 2.1 m
Protection IP65 rated, rust-free construction
Certifications DEKRA tested, CE Conform, Made in Germany

Two Ramp Configuration

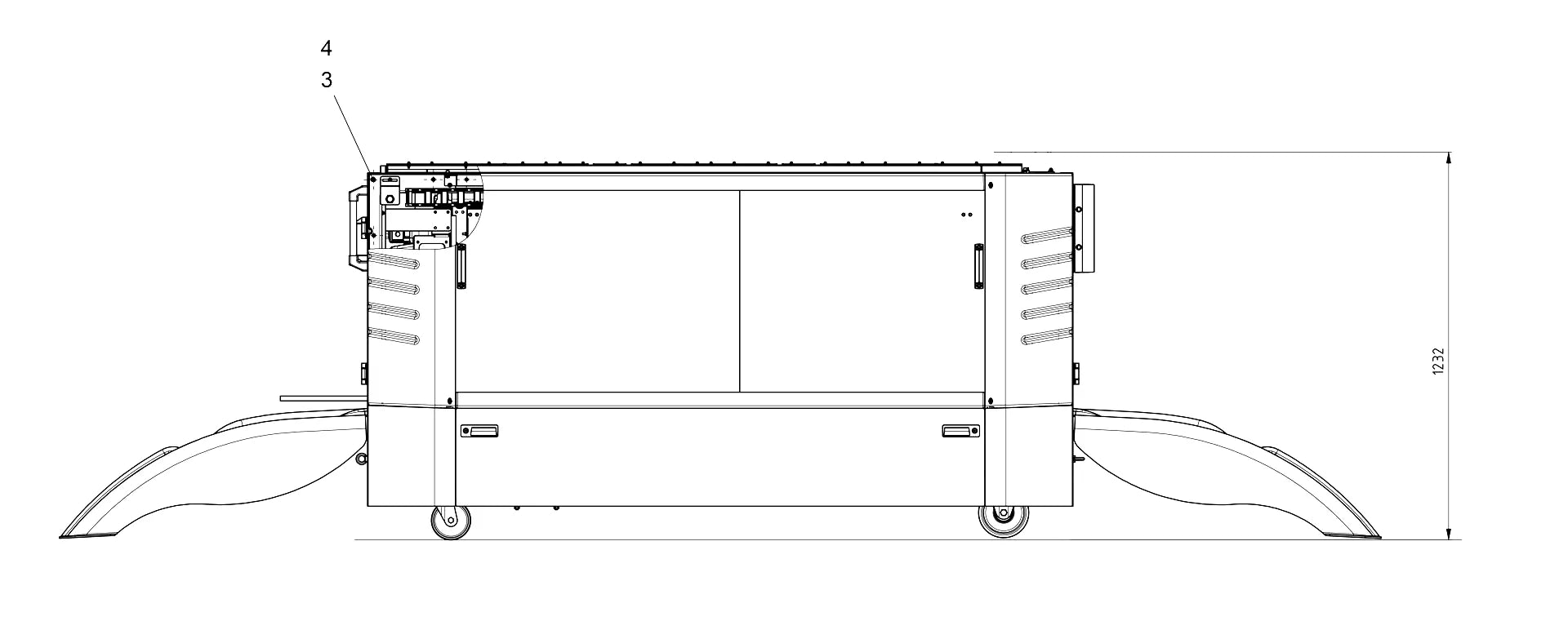

cycleWASH Pro side technical drawing — two ramp configuration cycleWASH Pro top technical drawing — two ramp configuration

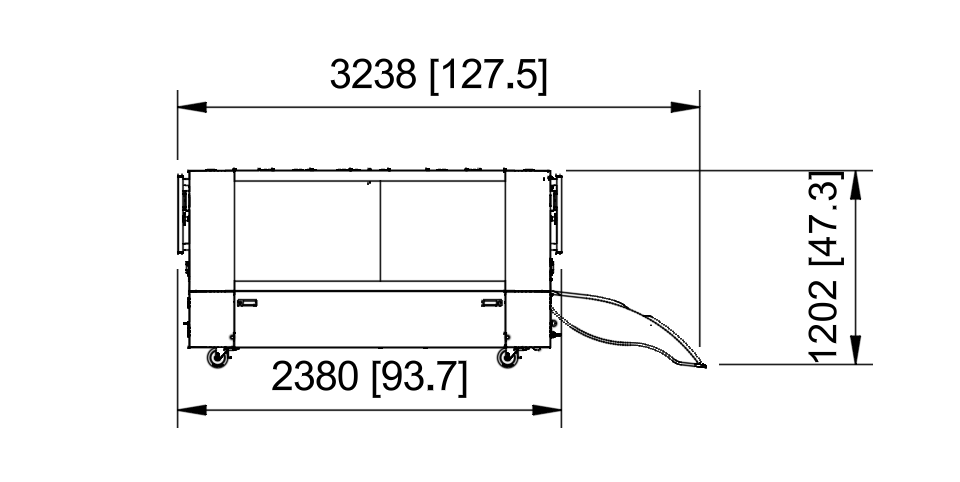

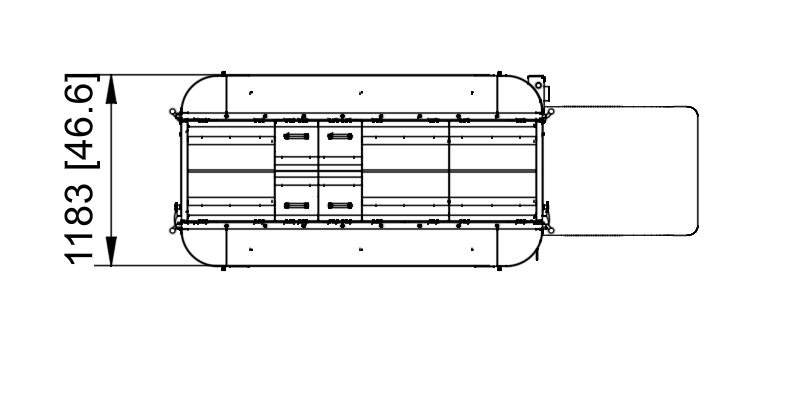

One Ramp Configuration

cycleWASH Pro side technical drawing — one ramp configuration, 3238 × 1202 mm, base 2380 mm cycleWASH Pro top technical drawing — one ramp configuration, 1183 mm depth
Gallery full view

Questions about Pro

How much space does the Pro need?

Dimensions of the Pro (L × W × H): 2365 × 1255 × 1235 mm · 4200 mm with ramps. Weight: 550–650 kg.

What water and power does the Pro need?

Pro – water: ≈ 3 L per wash (ECO) · ≈ 12 L (Standard). Power: 400 V three-phase, or solar 230 V. Tank: ≈ 210 L.

How long does a wash take on the Pro?

A full wash cycle on the Pro takes 2–5 minutes. It offers up to 4 programs: Eco, Eco Dry, Intensive and Intensive Dry.

How long is delivery for the Pro?

Delivery of the Pro: Usually within 3–4 weeks after payment.

What is the upgrade path for the Pro?

The Pro comes as Pro Basic – Wash, Pro Platinum – Wash and Pro Platinum – Wash/Dry (integrated dryer with 8 blowers). The Wash versions can add a touch-controlled hand dryer. Further options: external oil and sludge separator, cashless payment with touchscreen, LuftWASH, an off-grid solar package and a touch display.

What maintenance does the Pro need?

The water recycling filters need cleaning from time to time, and wear parts such as V-belts are inspected and replaced during the yearly maintenance, which keeps upkeep very low. Wash brushes on our machines have so far never needed replacing. Our team provides full training and ongoing support. The optional cycleWASH Care service contract adds priority technical support, remote support by email or video call, and a limited functional guarantee of up to 2 years beyond the standard warranty.

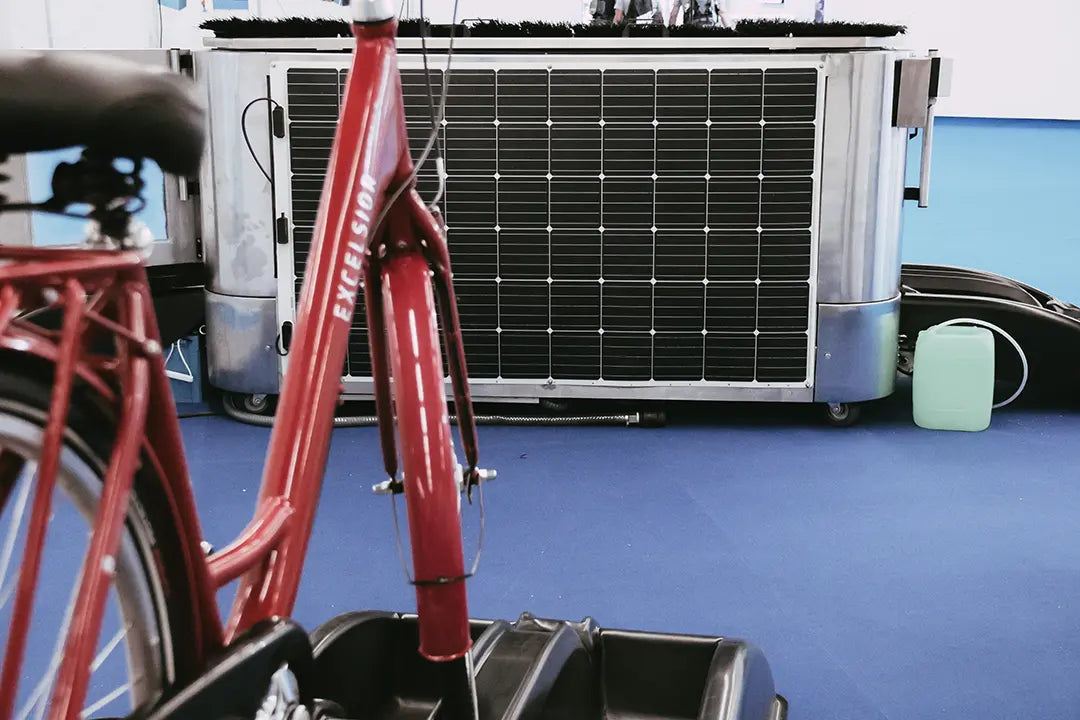

Works with any 230 V solar PSU

Transport in the trailer, run on solar power

Mini and Pro all run on any available solar PSU on the market and are extremely energy efficient — fully self-sufficient. Our solar trailer transports, stores and charges your machine anywhere: events, trails, festivals, remote sites.

MiniSolar + battery
ProSolar + battery
The mobile cycle wash — towed out, set down, washing
The Pro on its trailer — one person puts it back into service
cycleWASH solar trailer — transport, store and charge the machine off-grid cycleWASH Pro open showing brushes and solar power cycleWASH Pro running on integrated solar power

Mobile service

Washes delivered by bike

The Mini Platinum rides on a KLEUSTER electric trike: cycle paths, downhill, uphill — the wash comes to the bikes.

Small enough to be towed behind an e-bike Both the mini and the Pro can run on solar: panel and battery on board, so the machine washes where there is no power point — a festival field, a trail head, a city square. The mini is light enough to go there on a trailer behind an e-bike rather than in a van.

The cycleWASH Mini Platinum on its trailer with the solar panel raised, at the Smart City Expo World Congress
The cycleWASH Go on its trailer, hitched behind an e-bike on a city street
The Go and its trailer parked beside a cycle route sign
Compact – on the trailer
Set up and packed down in minutes
A bike-wash service, run by bike
On the cycle paths
Downhill on the e-trike
Uphill on the e-trike
Proven Performance
1,000,000
Bike washes
Designed for up to
10,000
Operating hours
Solar & Battery Ready
Optional off-grid – low energy use runs on solar & battery
Made in Germany
Engineered in Cologne
35
Granted IP rights
37 active filings
♻ ECO
100% Biodegradable
Closed Water Circuit
DEKRA tested
DEKRA tested
CE
CE Conform
BSFZ – Bescheinigungsstelle Forschungszulage
Certified R&D (BSFZ)
