Learn Moremini STATION — the manual cleaning station.
Manual open-air wash station. Self-service, no mains power needed — provided compressed air at 6–8 bar and at least 160 l/min is available.
The cycleWASH® Cleaning Station is a manual bicycle wash system designed for permanent outdoor installations. Weatherproof housing, modular design, and upgradeable to a semi-automatic mini Basic machine.
Send Enquiry →
cycleWASH® Station — Explore in 3D
Rotate, explode, click brand-coloured components.

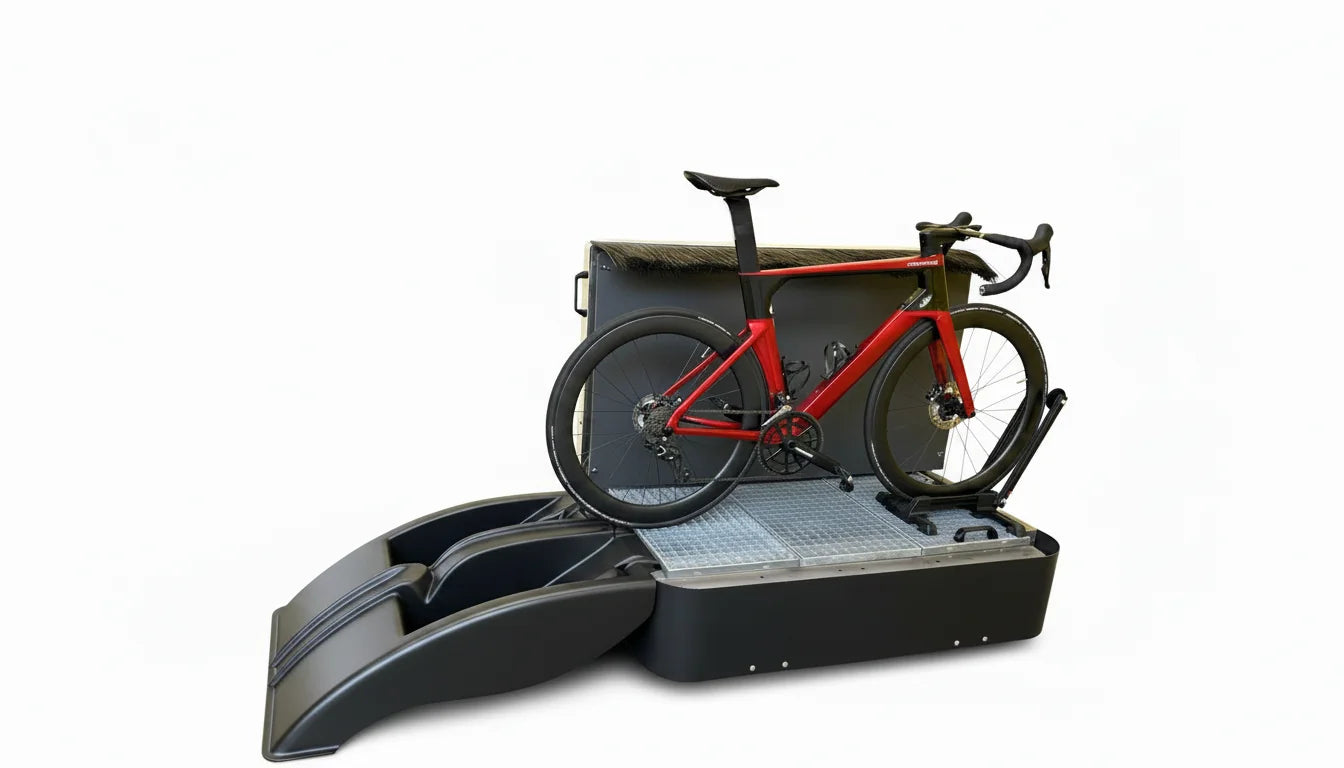

The Cleaning Station
The cycleWASH mini STATION is built for one job and built to do it thousands of times: robust, self-service bike cleaning in high-traffic public spaces. Bike parks, trailheads, cycle hubs, campsites and municipal stations — anywhere riders arrive muddy and expect to leave clean.

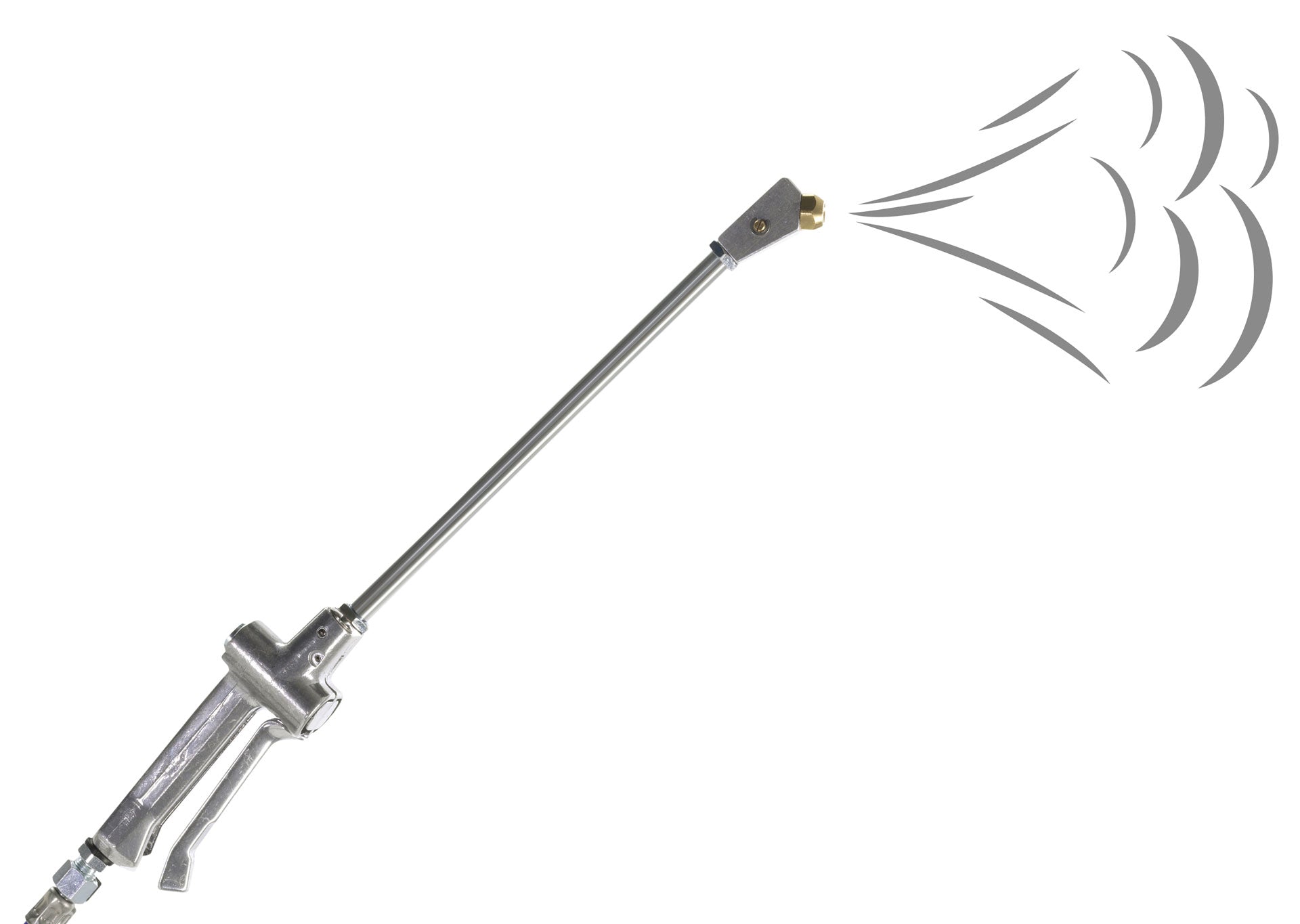

It runs without an electrical supply wherever compressed air at 6–8 bar and at least 160 l/min is available — that air drives the LuftWASH gun. Riders roll the bike onto the platform, wash it down by hand, and finish it dry with LuftWASH, our air-based drying system — no power connection, no complicated controls, no attendant. Just a fresh-water hook-up in STANDARD mode and a wash that uses roughly one litre of water each time, a fraction of an ordinary hose. In STANDARD mode with a fresh-water connection it uses around five litres.
The whole unit is stainless steel, engineered to shrug off weather, grit and constant public use with minimal maintenance. At a compact 146 × 103 × 122 cm it fits a 4 × 3 m footprint, and its ~100 kg build stays put exactly where you install it. Self-service by design, it turns bike cleaning into a service you offer without adding a task to anyone's day.
Key Features

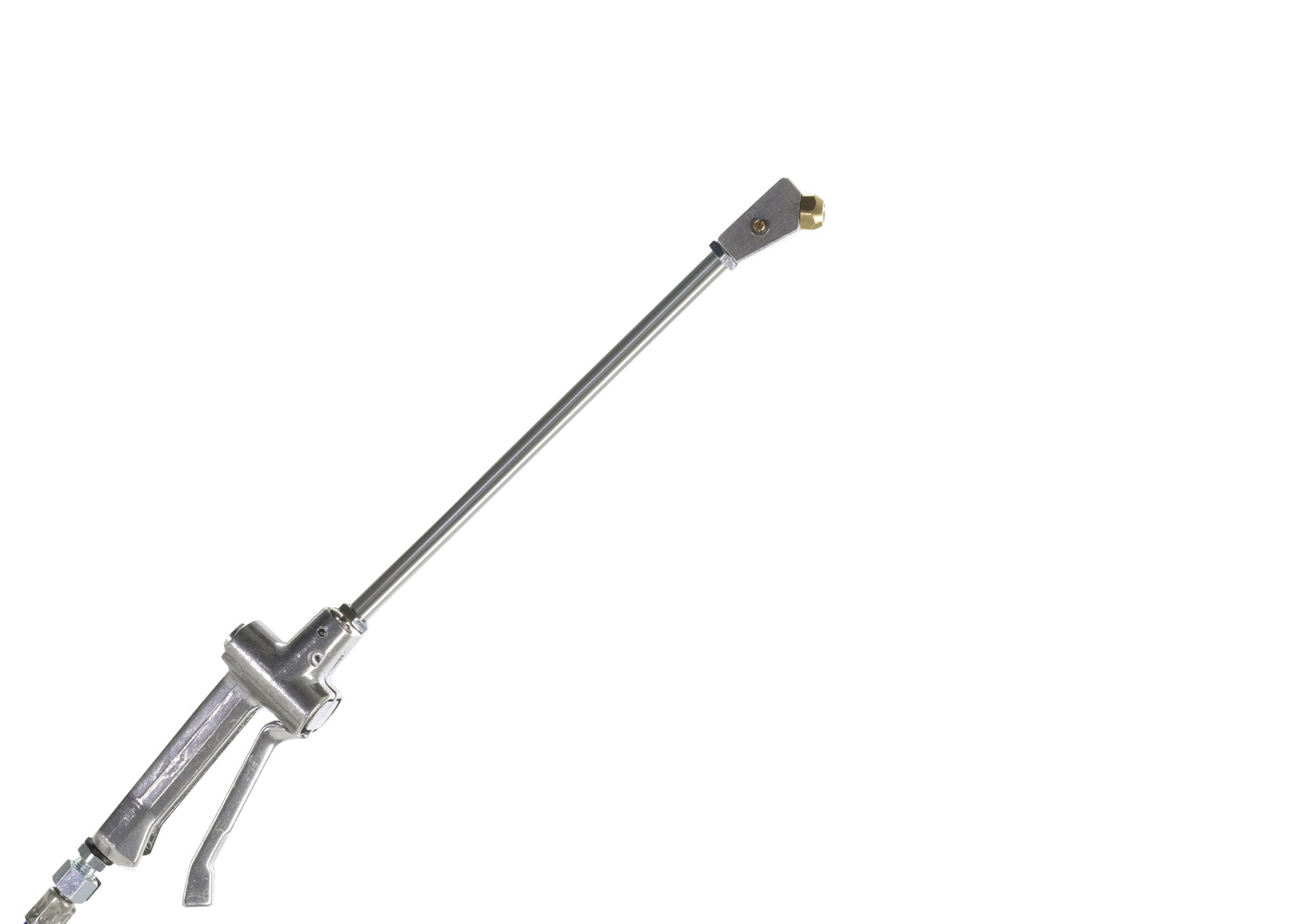

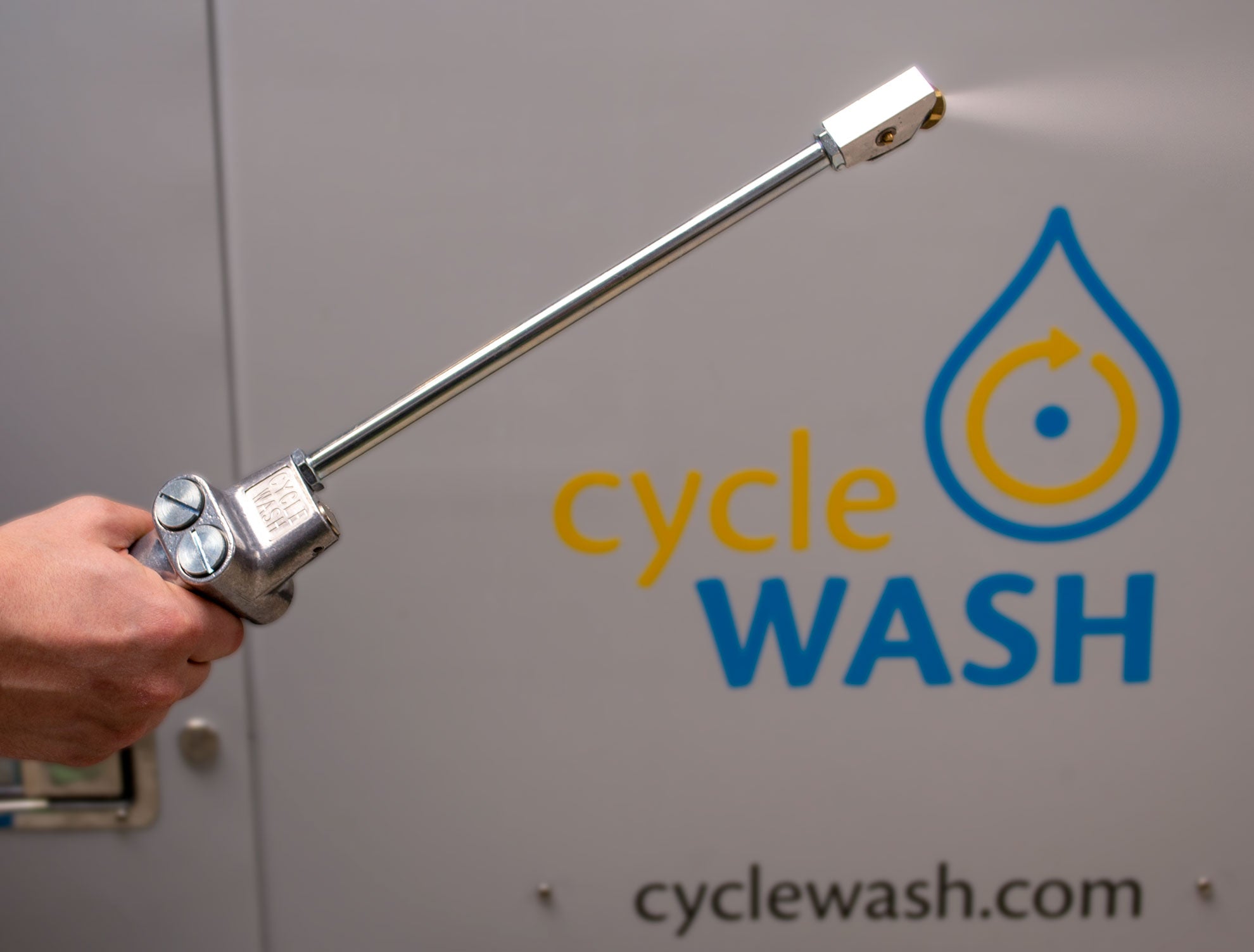

Manual Operation with LuftWASH
User-friendly hand cleaning with integrated cleaning gun.
Robust Stainless Steel Construction
Full stainless steel housing for maximum durability.
Wheel-Turning Rollers
Rest the rear wheel on the rollers and turn the wheels by hand for even chain oiling.
High-Throughput Design
Optimized for public spaces and high-frequency usage.
Minimal Maintenance Required
Robust design with few wear parts and easy access.
Fresh Water Connection
Direct fresh-water connection for continuous operation in STANDARD mode.
~3 L / Wash
Roughly three litres of water per wash in ECO mode, about twelve litres in STANDARD — a fraction of an ordinary hose.
Upgradeable to mini Basic
Upgrade at any time to the semi-automatic mini Basic machine.
Compact Footprint
146 × 103 × 122 cm — fits a 4 × 3 m footprint.
Solar Power Option
Optional solar panel and battery pack for mains-independent operation.
Minimal maintenance
No daily servicing: brushes, pumps and filters are built to run for years, and a short weekly check is all a site needs.
How It Works
Push Bike In
The bicycle is pushed into the station via the precision guide rail.

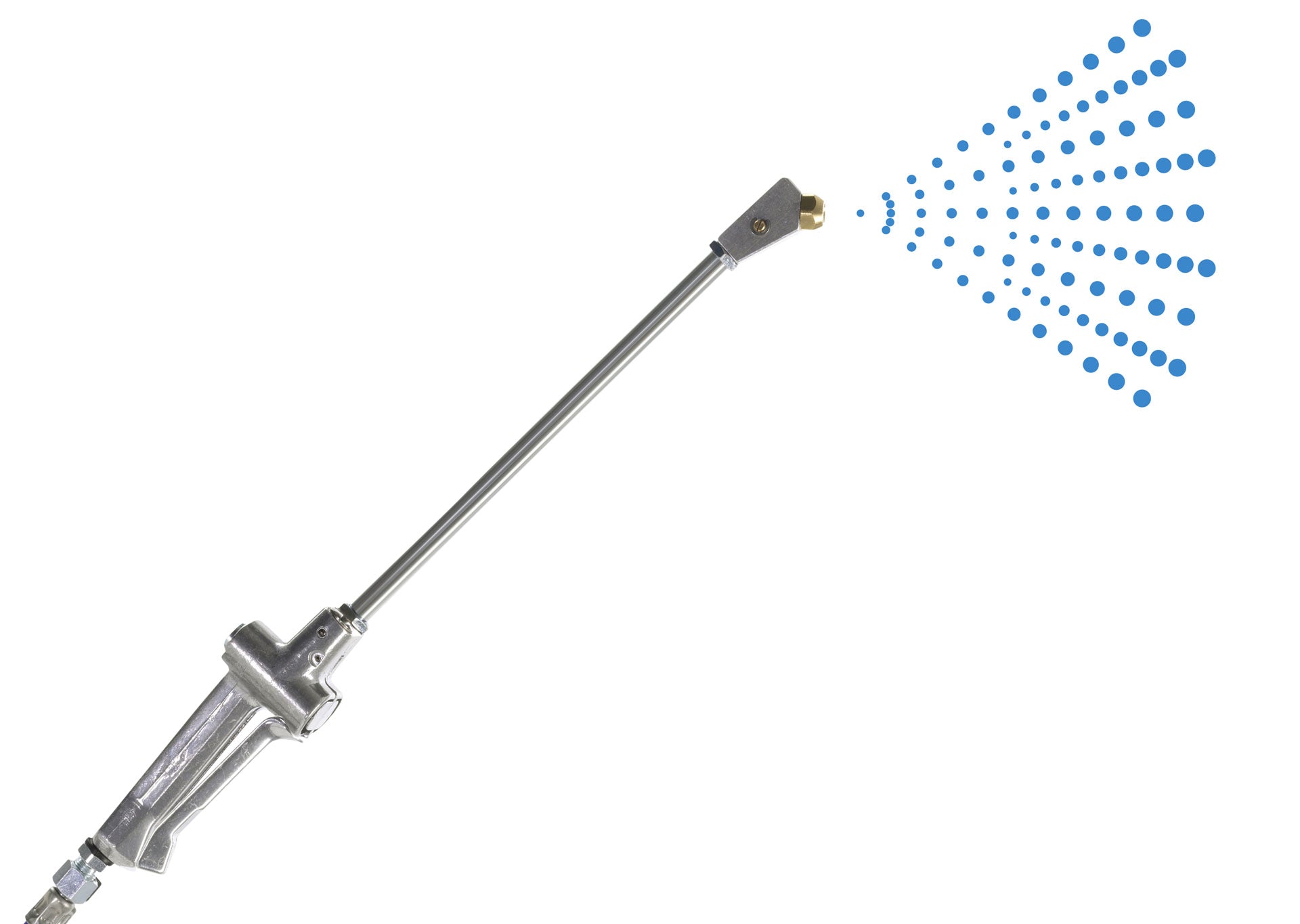

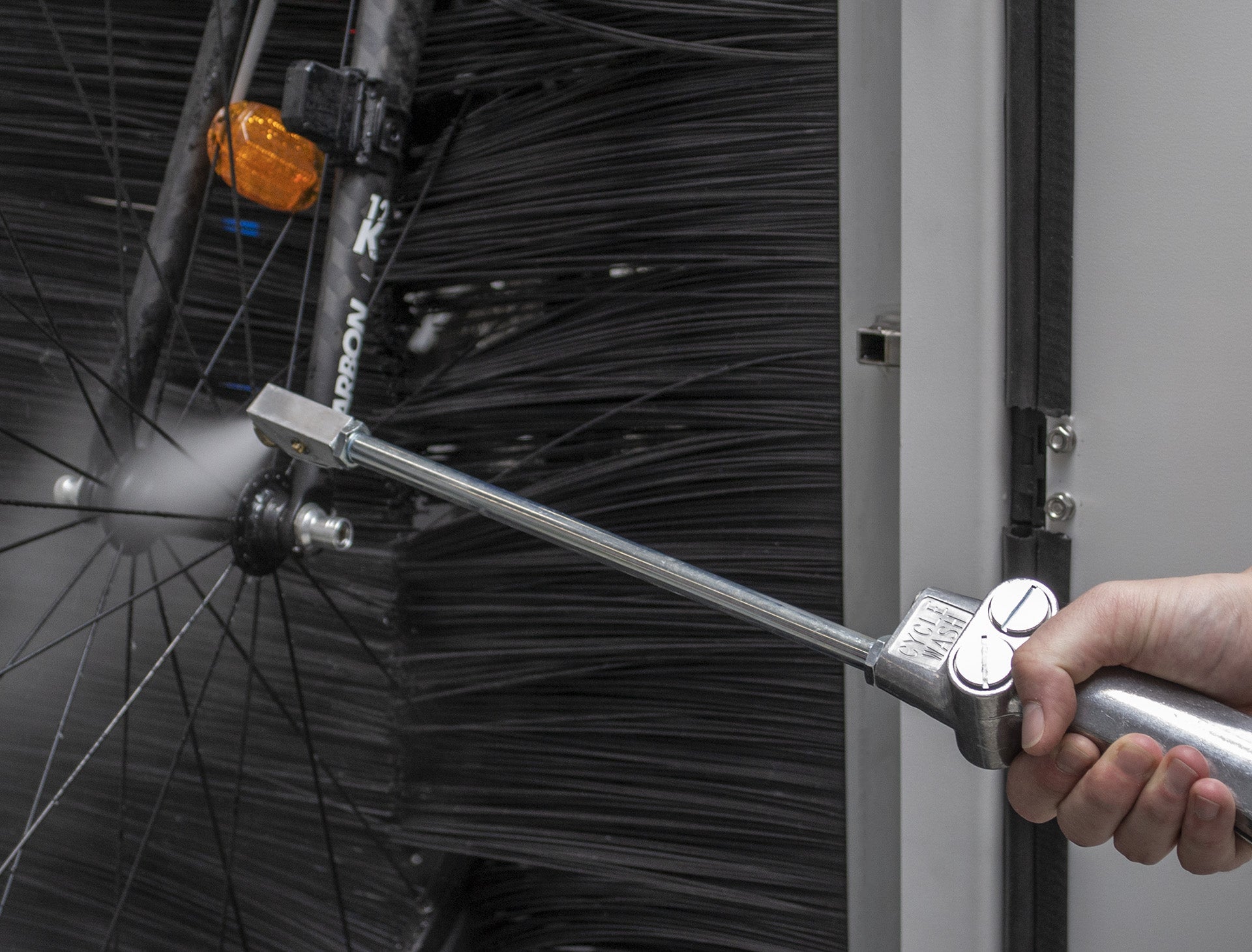

Clean with LuftWASH Gun
Use the LuftWASH gun to thoroughly clean the bike — frame, components, and hard-to-reach spots.
Ready to Ride
In just minutes your bike is cleaned, maintained, and ready for the road.
ECO vs STANDARD Mode
ECO Mode
- Water only — no chemicals
- Closed-circuit water system
- ~3 L per wash cycle
- Ideal for light soiling
- Minimal operating costs
STANDARD Mode
- Fresh-water connection for deeper cleaning
- Better results on heavy soiling
- Higher throughput for busy sites
- Recommended for permanent installations
- Still no mains power — compressed air only (6–8 bar, from 160 l/min)
Equipment Details
Optional Equipment
- LuftWASH
- Pre-cleaning catch tank & ramp set
- Upgrade to the semi-automatic mini Basic
- High-performance compressor — where no compressed air is available (needs mains power)
- Payment system
Engineering data
Technical Specifications
| Dimensions | 146 × 103 × 122 cm |
|---|---|
| Space required | 4 × 3 m |
| Weight | approx. 100 kg |
| Energy | 1.6 – 3.6 kVA depending on equipment |
| Operation | Manual — upgradeable to semi-automatic |
| Construction | Robust stainless steel, built for high-traffic public spaces |
| Maintenance | Minimal — specified for unattended public installations |

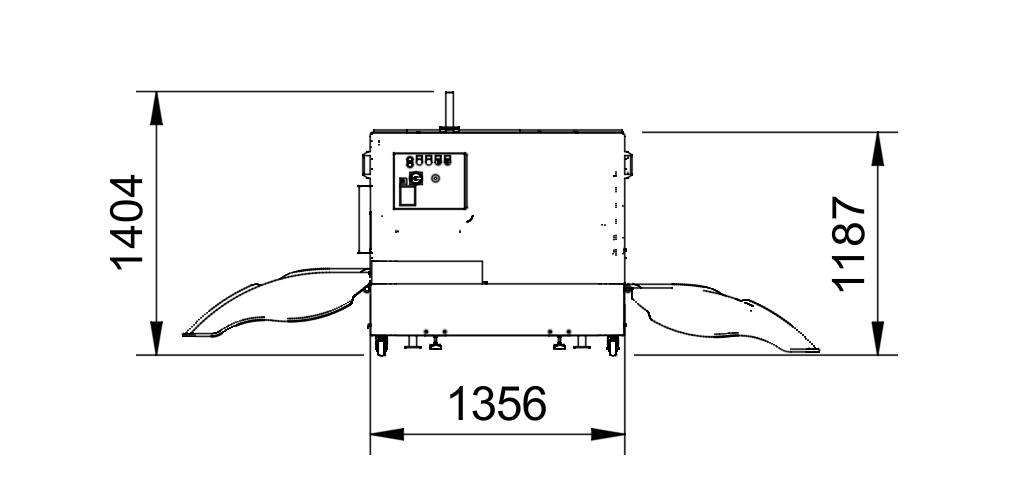

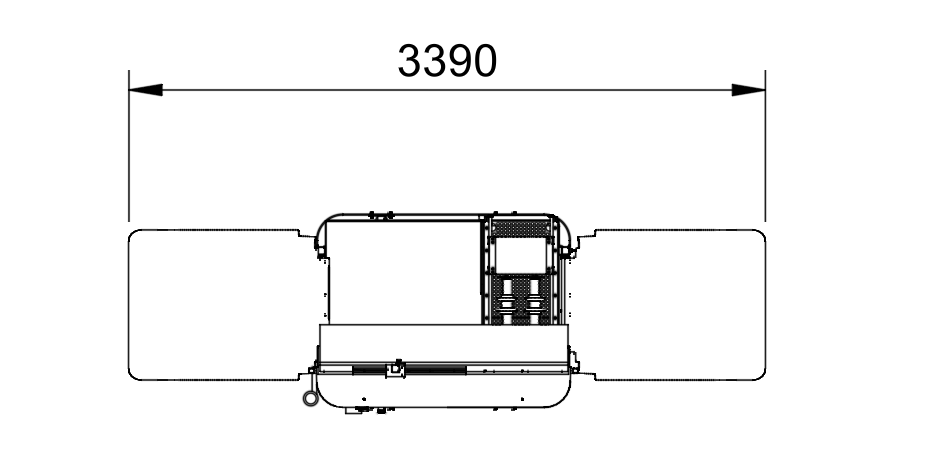

Dimension drawings
Our commitment
Why this is built the way it is
Recycled, not consumed
Filtration returns wash water to the circuit, so a full wash costs litres rather than hundreds.
Built in Germany
Designed, assembled and serviced from Cologne, with parts available for the life of the machine.
Patented, and documented
Granted patents and certifications are published in full rather than summarised.
Numbers you can check
Consumption and payback are calculable against your own throughput before you commit.
