World’s Most Compact

cycleWASH® Mini

The most compact bicycle washing system in the world

Semi-automatic cleaning in a single pass. Available as Mini Basic and Mini Platinum — engineered for efficiency, built for sustainability.

Request a Quote
Semi-automatic

Bicycle cleaning in the smallest footprint

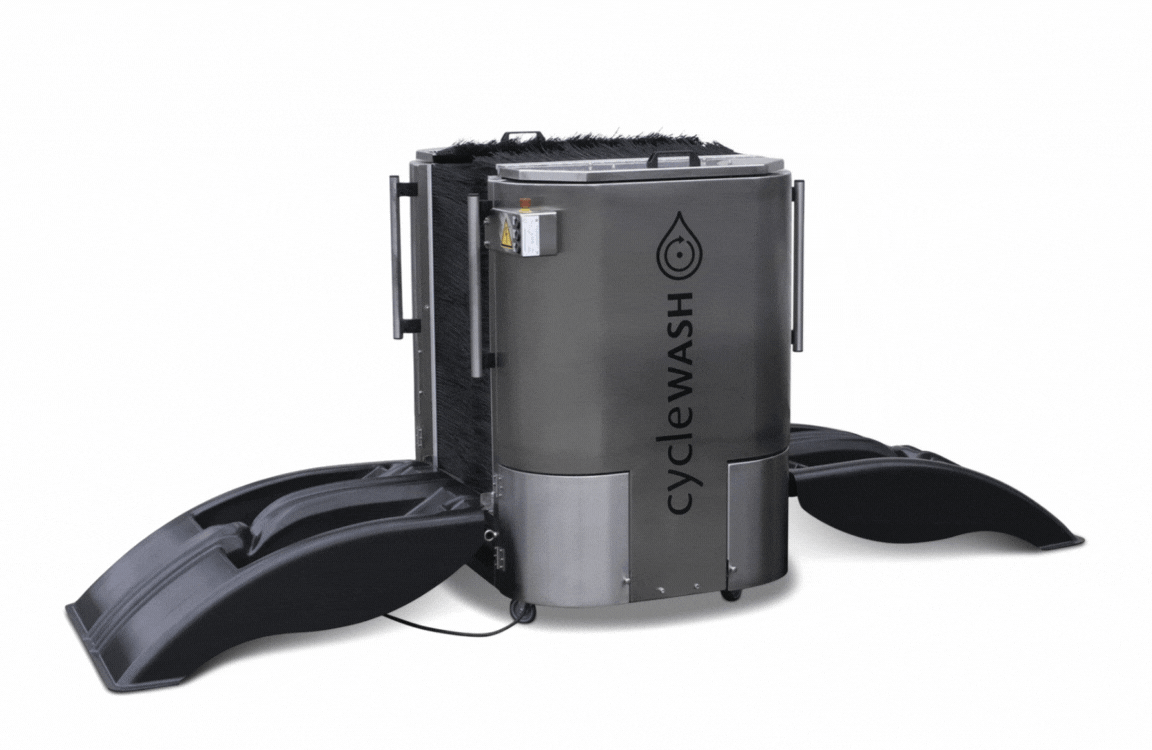

The Mini cycleWASH® is the most compact member of our washing station family, delivering the same premium wash quality as our larger models in a footprint small enough for any cycling destination.

With semi-automatic operation, the Mini combines spinning brushes, high-pressure rinse and optional air-dry into a single two-minute cycle. All the user has to do is roll the bike onto the ramps and press start.

Available in two trim levels — Mini Basic and Mini Platinum — so you can match the investment to your location, from community parks to premium resorts.

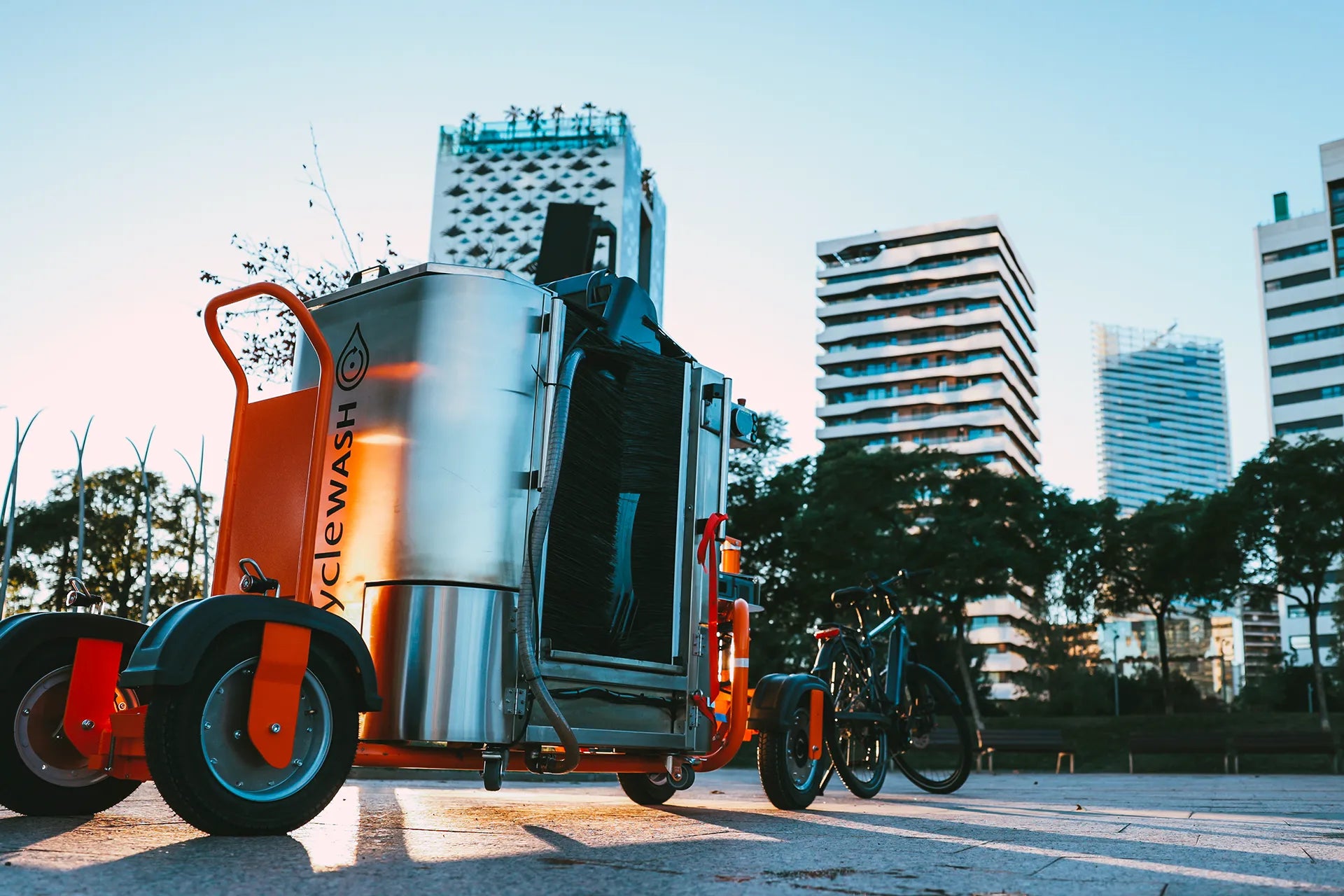

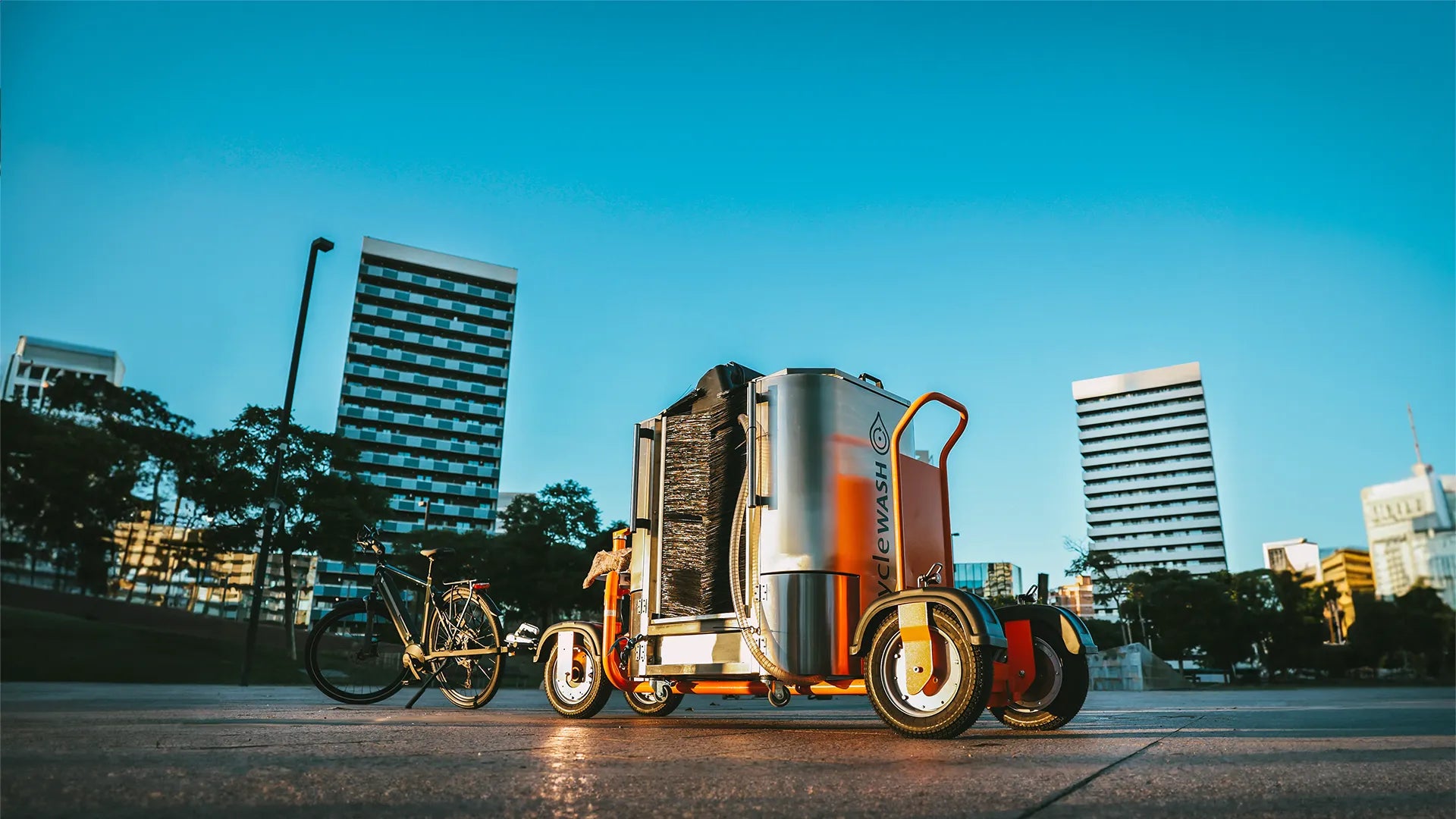

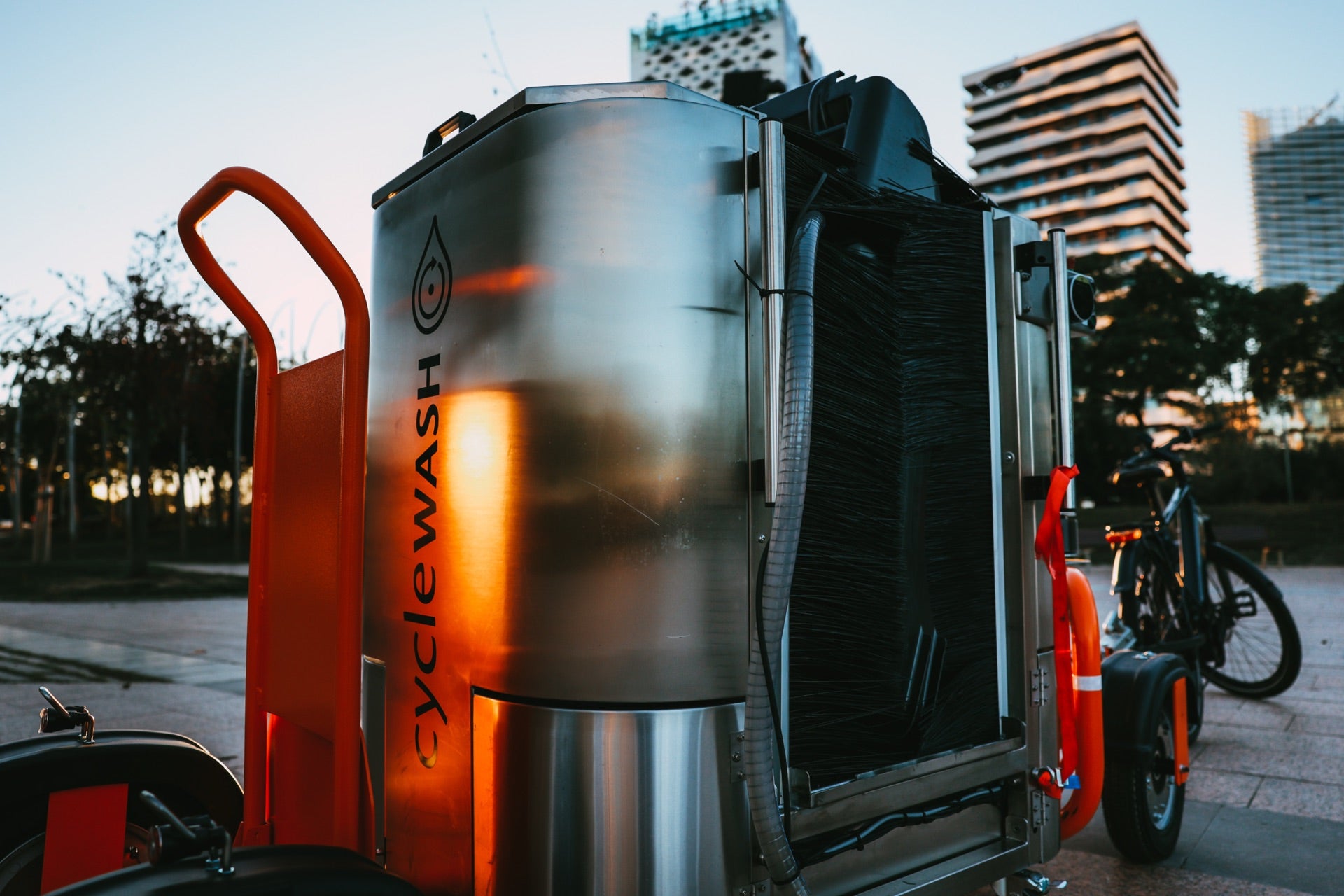

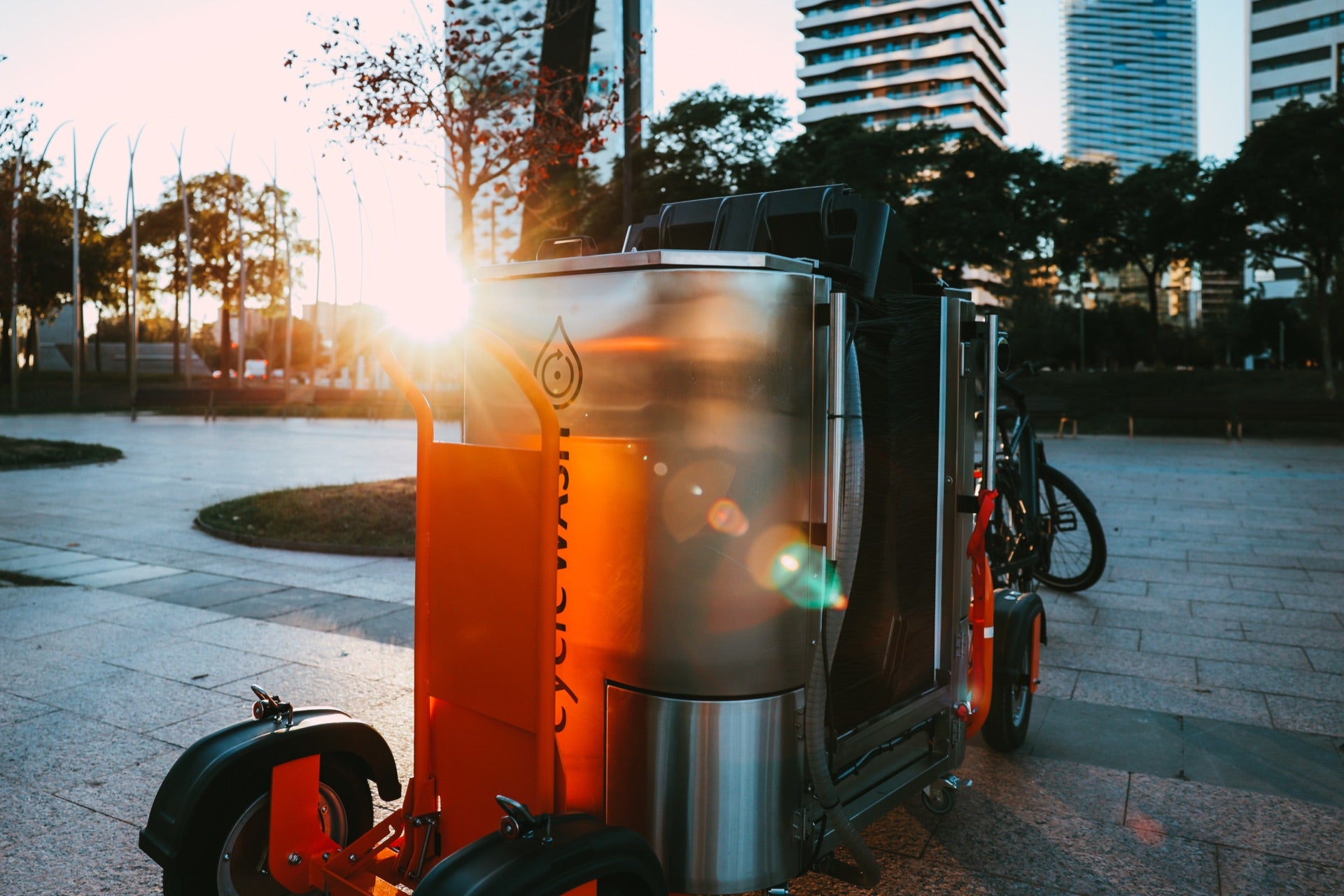

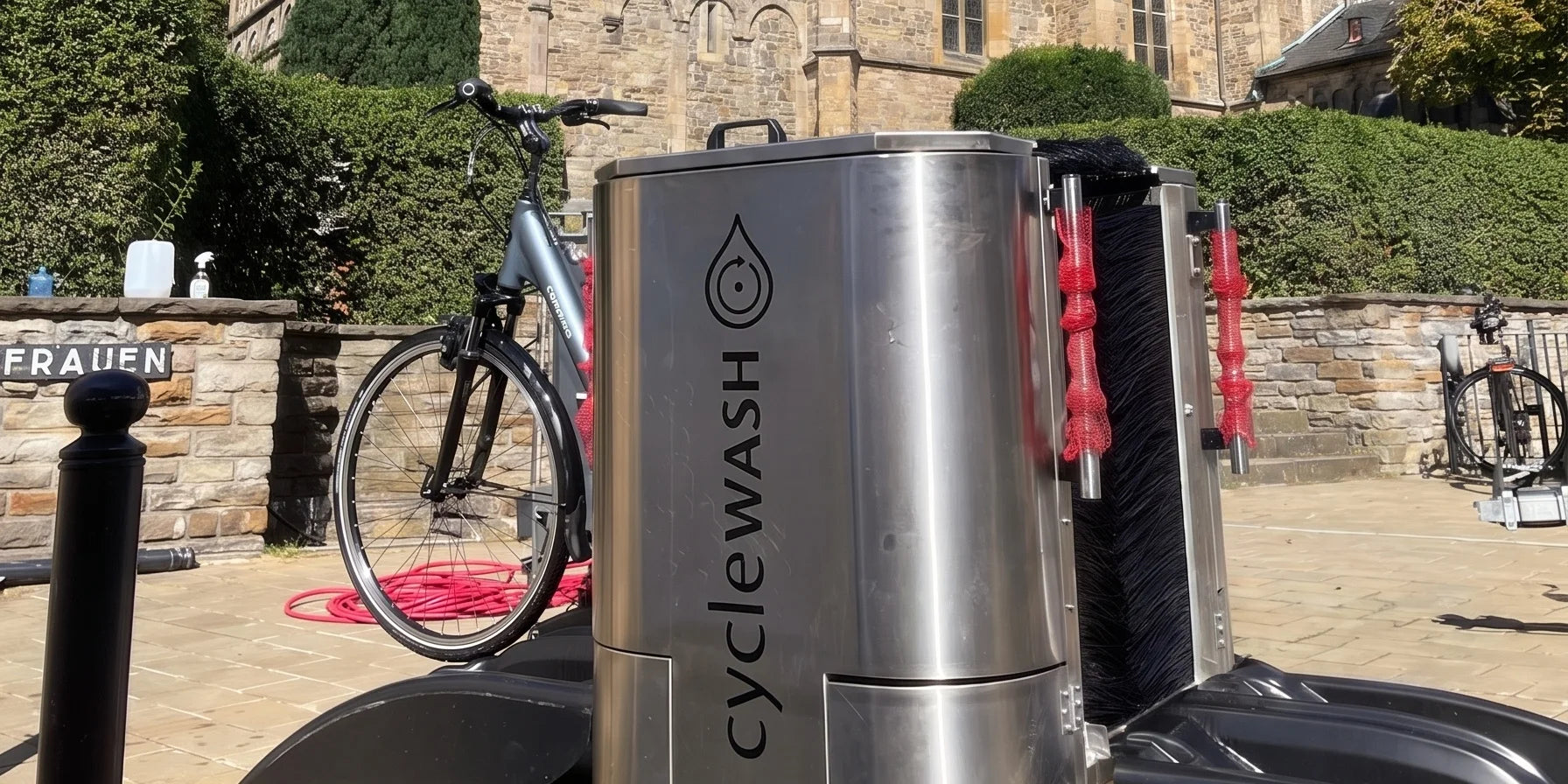

cycleWASH mini in Barcelona with a bicycle alongside
INTERACTIVE 3D

cycleWASH® Mini — Explore in 3D

Both editions side by side. Rotate, explode, click brand-coloured components.

NDA REQUIRED Mini Platinum technical preview
NDA REQUIRED Mini Basic technical preview
05:00 left in session

How It Works

A spotless bike in four simple steps — no effort, no mess.

See the Mini in action · Instagram

1

Pay First

Contactless payment at the terminal — card or phone. No coins, no attendant.

2

Pre-Clean (Optional)

Heavy mud? Rinse the worst off with the optional pre-cleaning before the wash.

3

Wash Cycle

Position the bike between the brushes and press start. Brushes and jets do the work.

4

Hand Dryer

Blow the bike dry with the wall-mounted cycleWASH hand dryer — one touch, two-minute timer. Available as an upgrade. cycleWASH Hand Dryer ›

See It In Action

Videos

Mini Platinum Video
Mini Basic Video
Cut-away view of the cycleWASH Mini Basic
Mini Basic – Cross Section

Video: Guido Rielke · Smart Racoons

Two Editions

Choose Your Edition

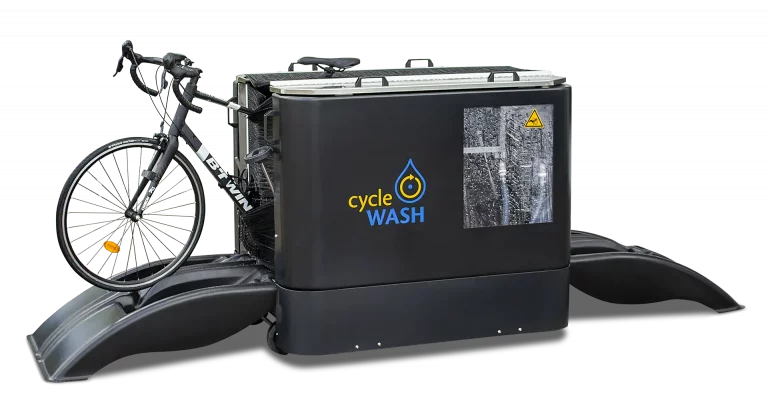

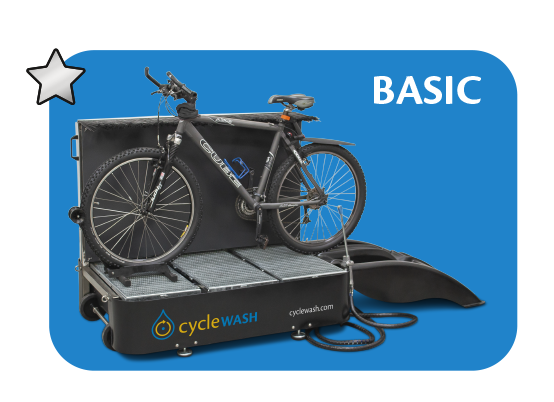

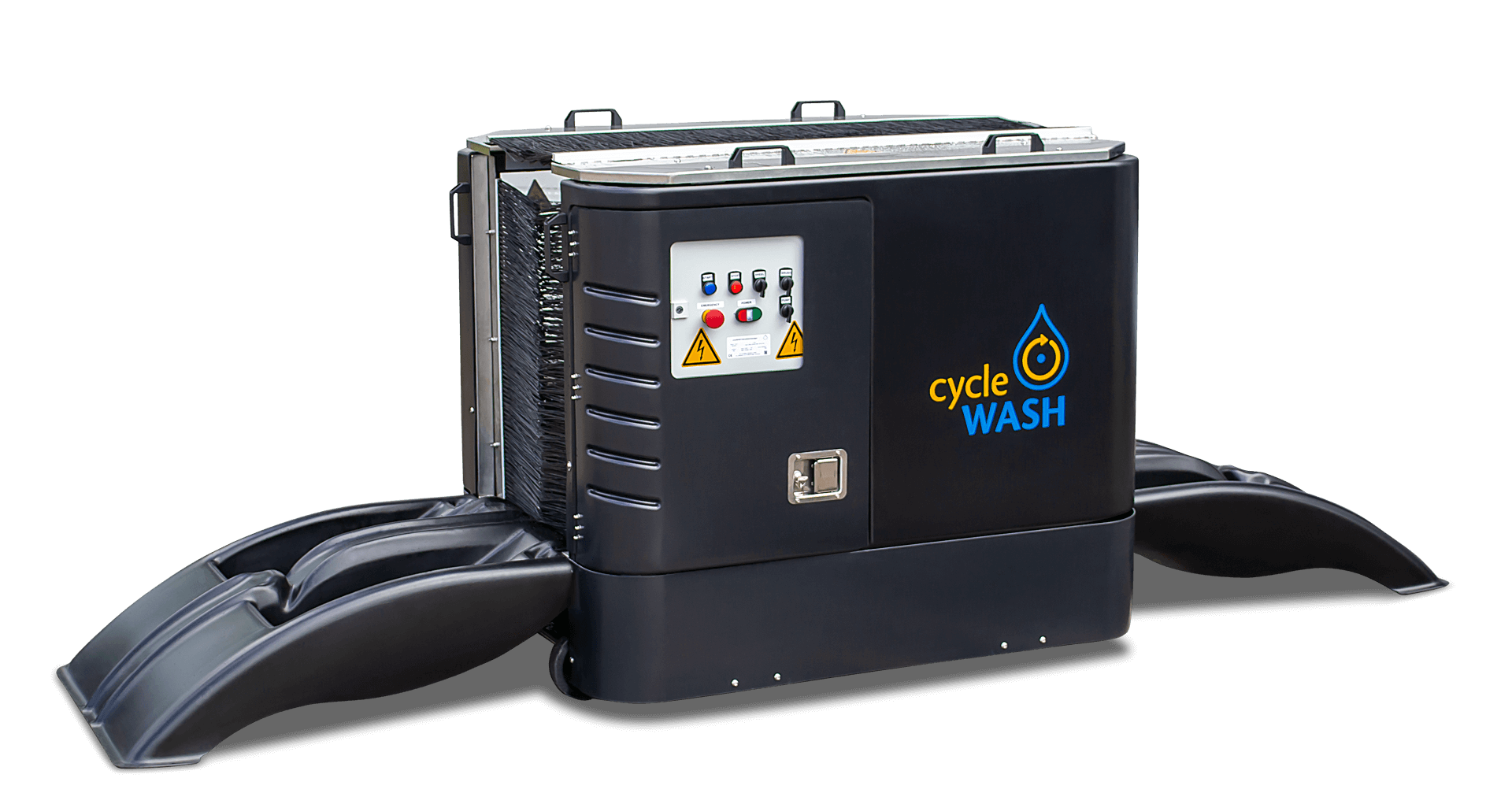

Mini Basic

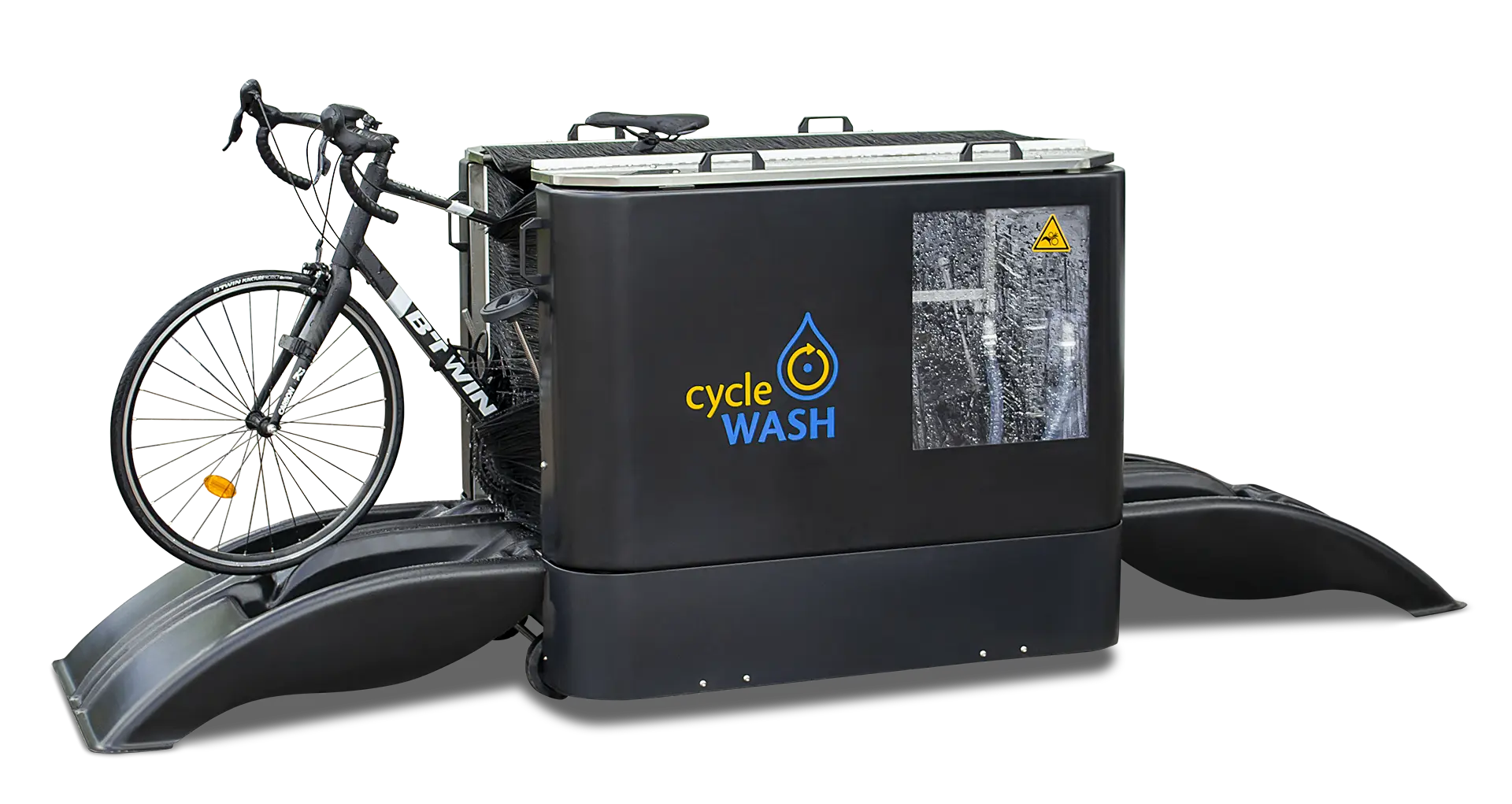

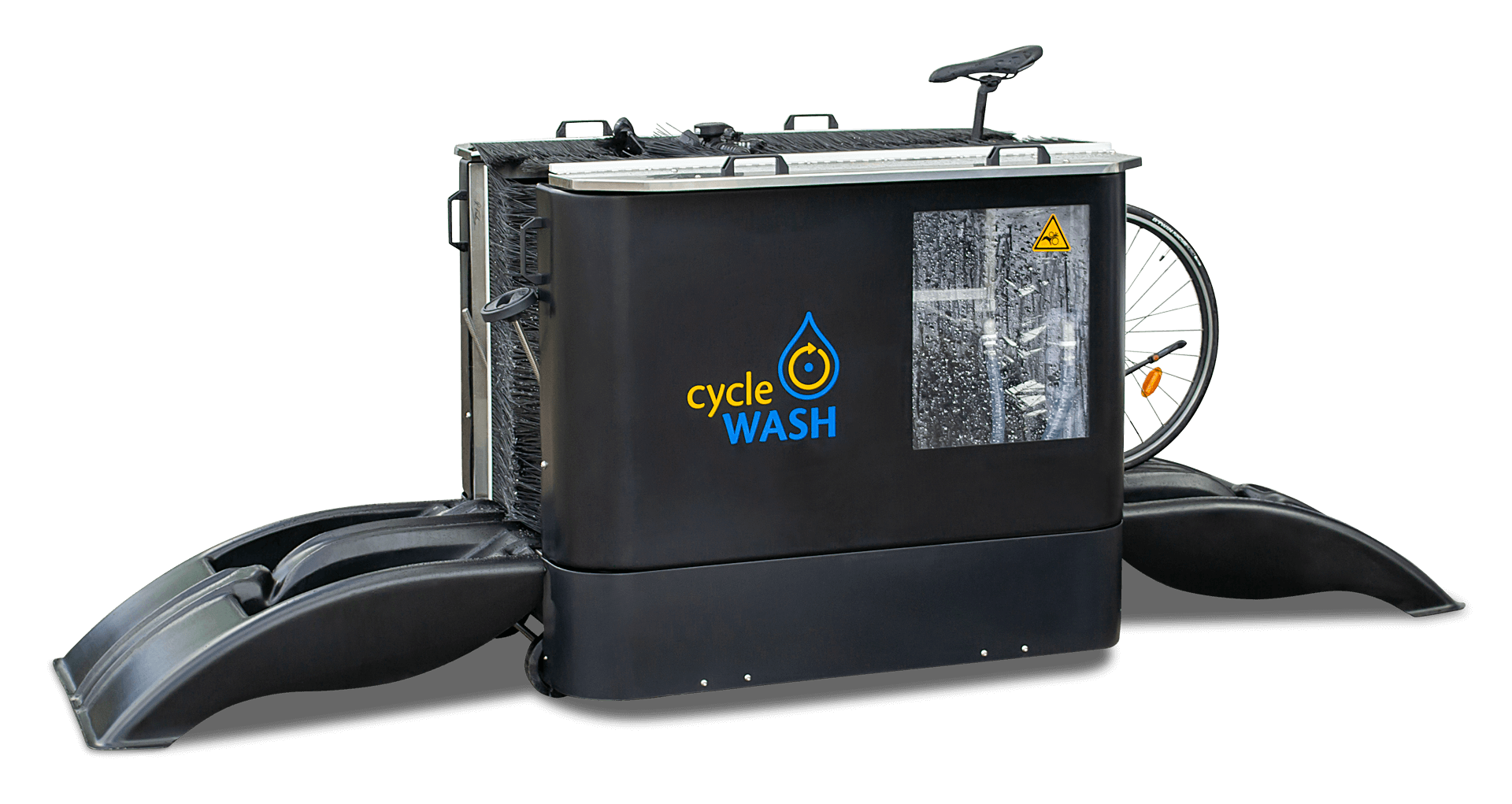

Mini Basic — with bike

Mini Basic

Stainless steel frame and internals, with plastic covers. Same wash, same parts — a lower entry price.

Shop now →

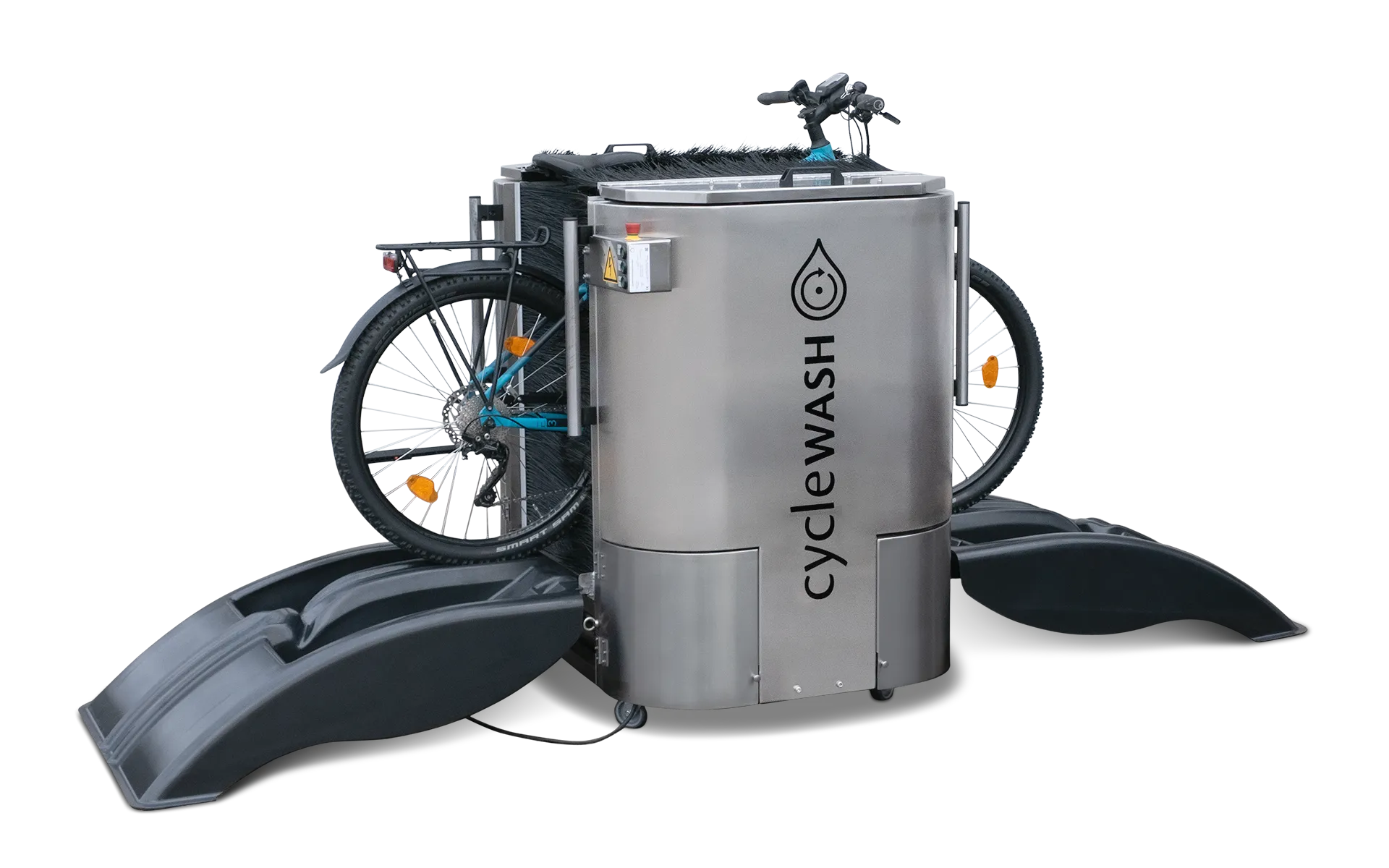

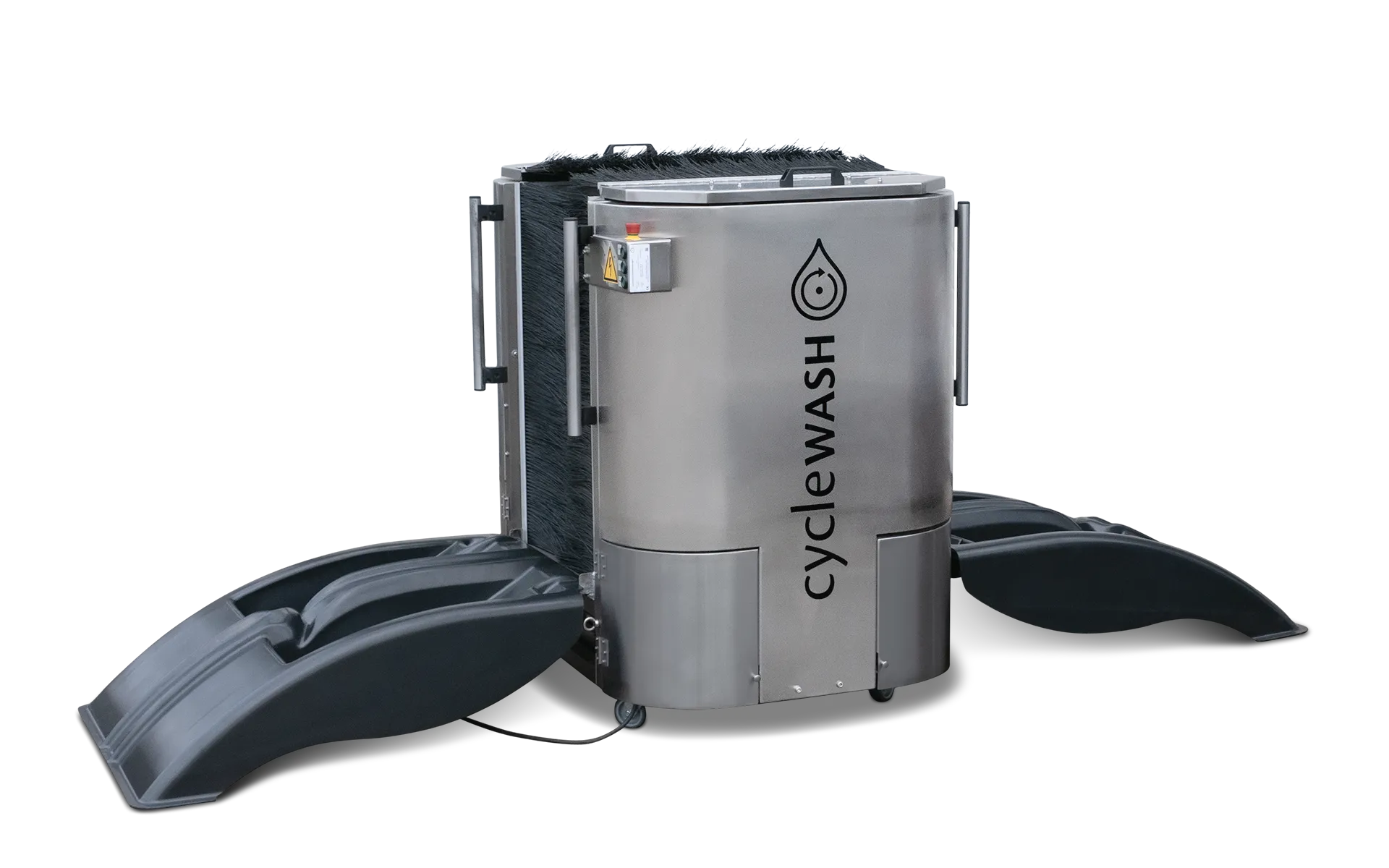

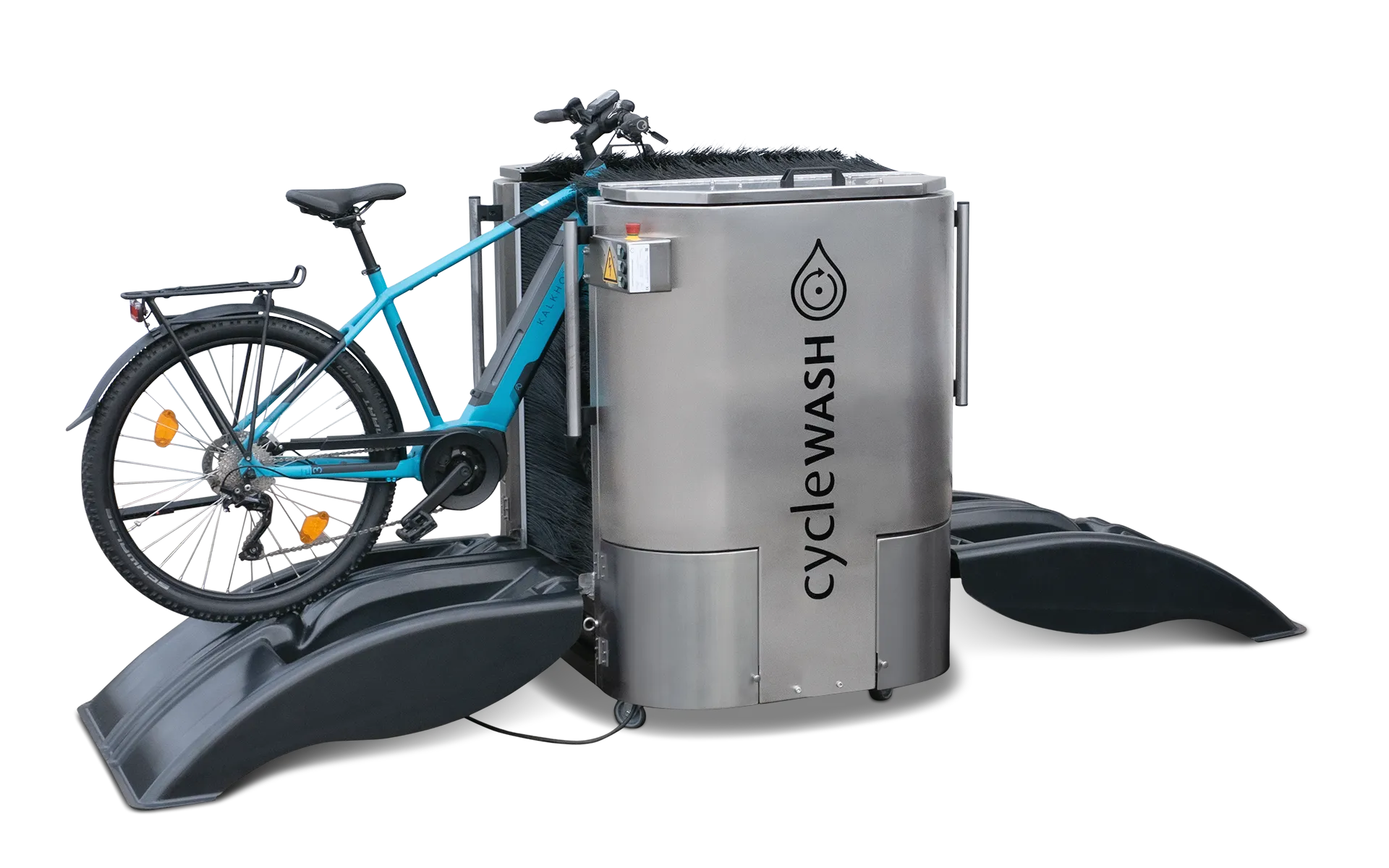

Mini Platinum

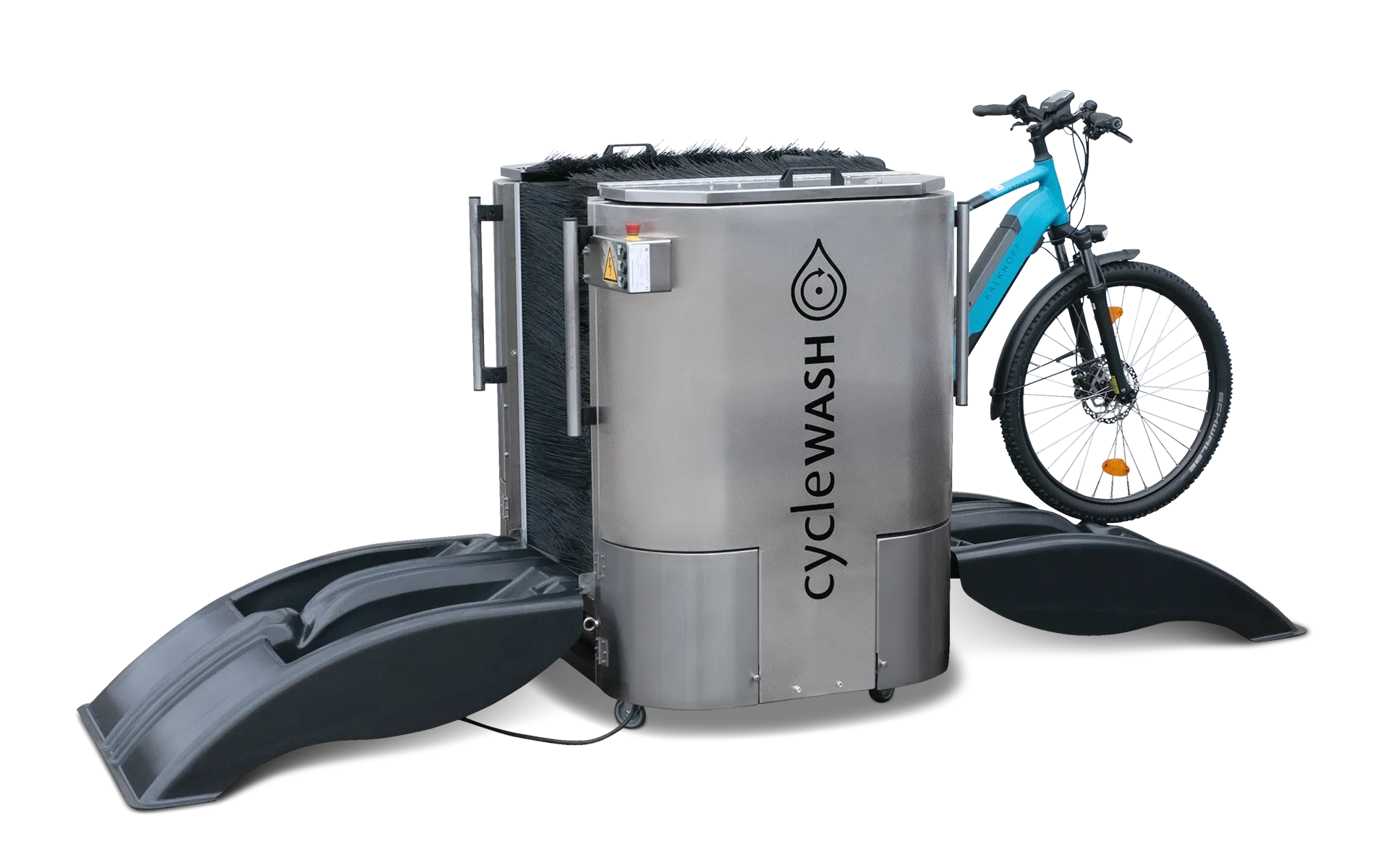

Mini Platinum — with bike

Mini Platinum

Everything stainless steel, covers included. Identical wash performance, superior materials.

Shop now →
Dual Operating Modes

ECO vs Standard Mode

ECO Mode

  • ~3 L of water per wash, recycled in a closed circuit
  • No fixed fresh-water connection needed — the tank is filled by hand. A drain connection is required.
  • Fill it from buckets or a garden hose
  • No detergent needed for lightly soiled bikes — the brushes lift city dirt on their own
  • Ideal for events, mobile use and off-grid locations
  • Needs rinsing and cleaning regularly — ideally every few days

💧 Standard Mode

  • Needs a ½" fresh water connection and a 1" waste water connection
  • Built for high wash volumes and 24/7 operation
  • No rinsing every other day — a weekly clean is enough
  • Higher throughput for continuous operation
  • Optional automatic detergent dosing — not needed for everyday city dirt
  • Optimised for permanent installations — maximum cleaning performance
Engineering Excellence

10 Key Features

1

World's Most Compact

Just 120 × 125 cm footprint — fits into the tightest urban spaces and locations.

2

Semi-Automatic Single-Pass Cleaning

One-pass operation for quick, thorough bike cleaning without complex setup.

3

Three-Minute Wash Cycle

A complete wash in about three minutes — roll on, wash, roll off.

4

ECO Mode (~3 L)

Closed-circuit water recycling with integrated filter — industry-leading consumption.

5

Standard Fresh Water Mode

Fixed water connection for deep-clean results at permanent installations.

6

EASYClick Brush System

Patented EASYClick brush system with quick-change mechanism for gentle, thorough cleaning.

7

Wheel Rotation Unit

Integrated wheel rotation with rim cleaning brushes for 360° rim cleaning.

8

Solar Power Option

External inverter + lithium batteries for fully off-grid operation.

9

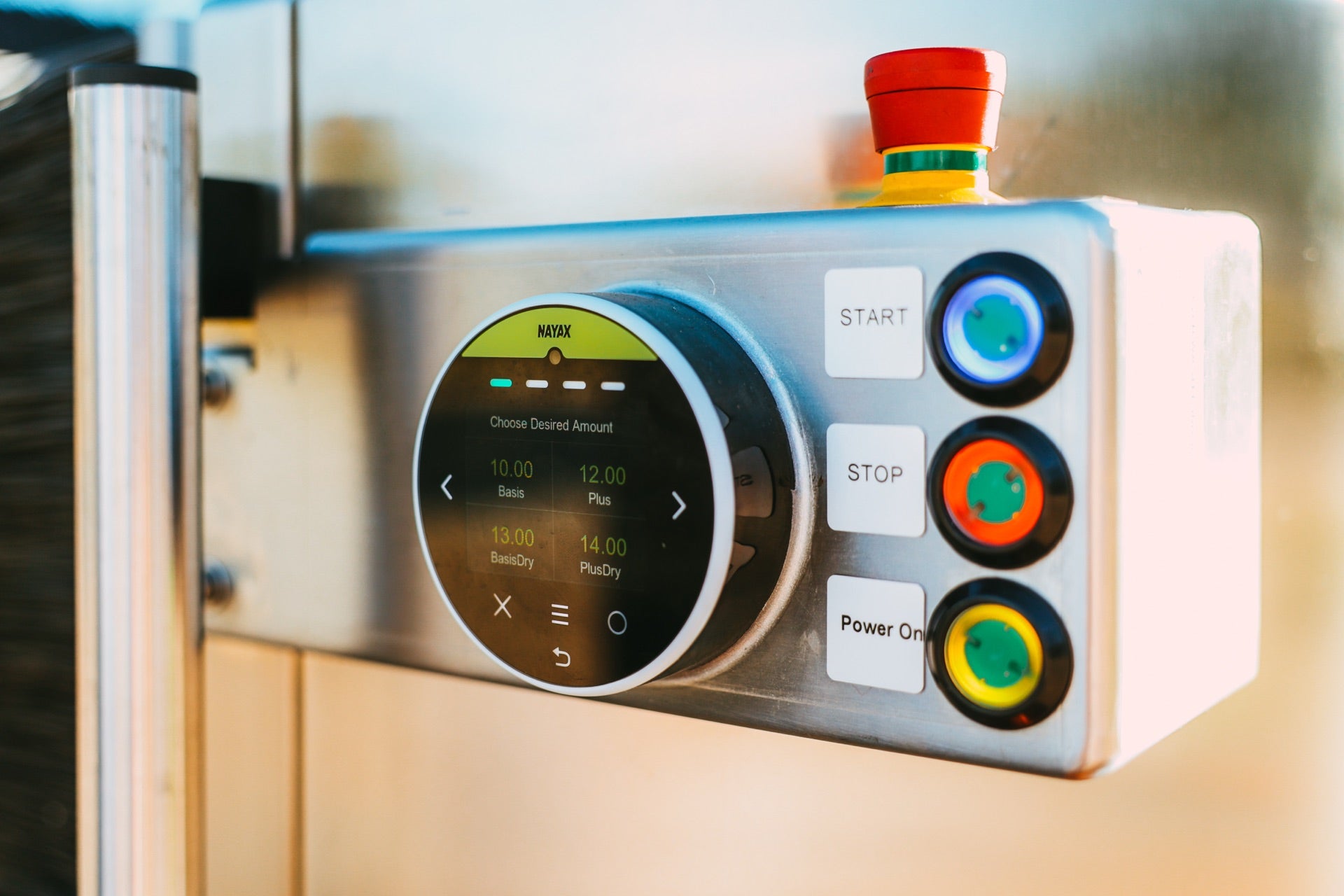

Contactless Payment

Optional Nayax terminal for Apple Pay, Google Pay, and card payments (optional).

10

Remote Monitoring

Optional IoT connectivity for status queries, diagnostics, and remote control (optional).

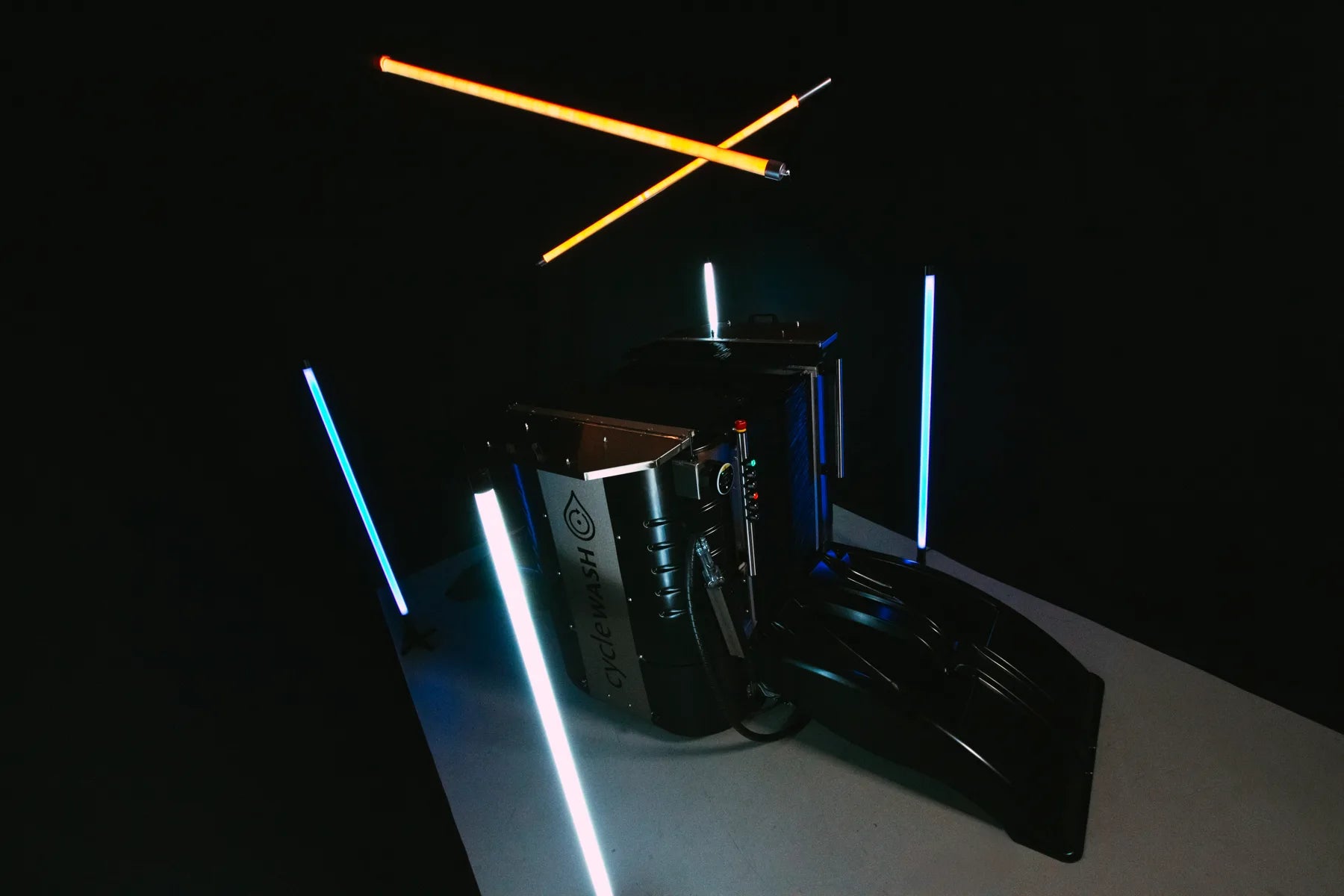

cycleWASH mini Platinum lit by neon tubes in the studio, loading ramp folded out
What's Included

Equipment Details

Included as Standard

  • Wheel rotation unit with rim cleaning brushes
  • Standard fresh water mode
  • Stainless steel frame and internals with plastic covers (Basic)
  • Wash brushes, water nozzles and piping

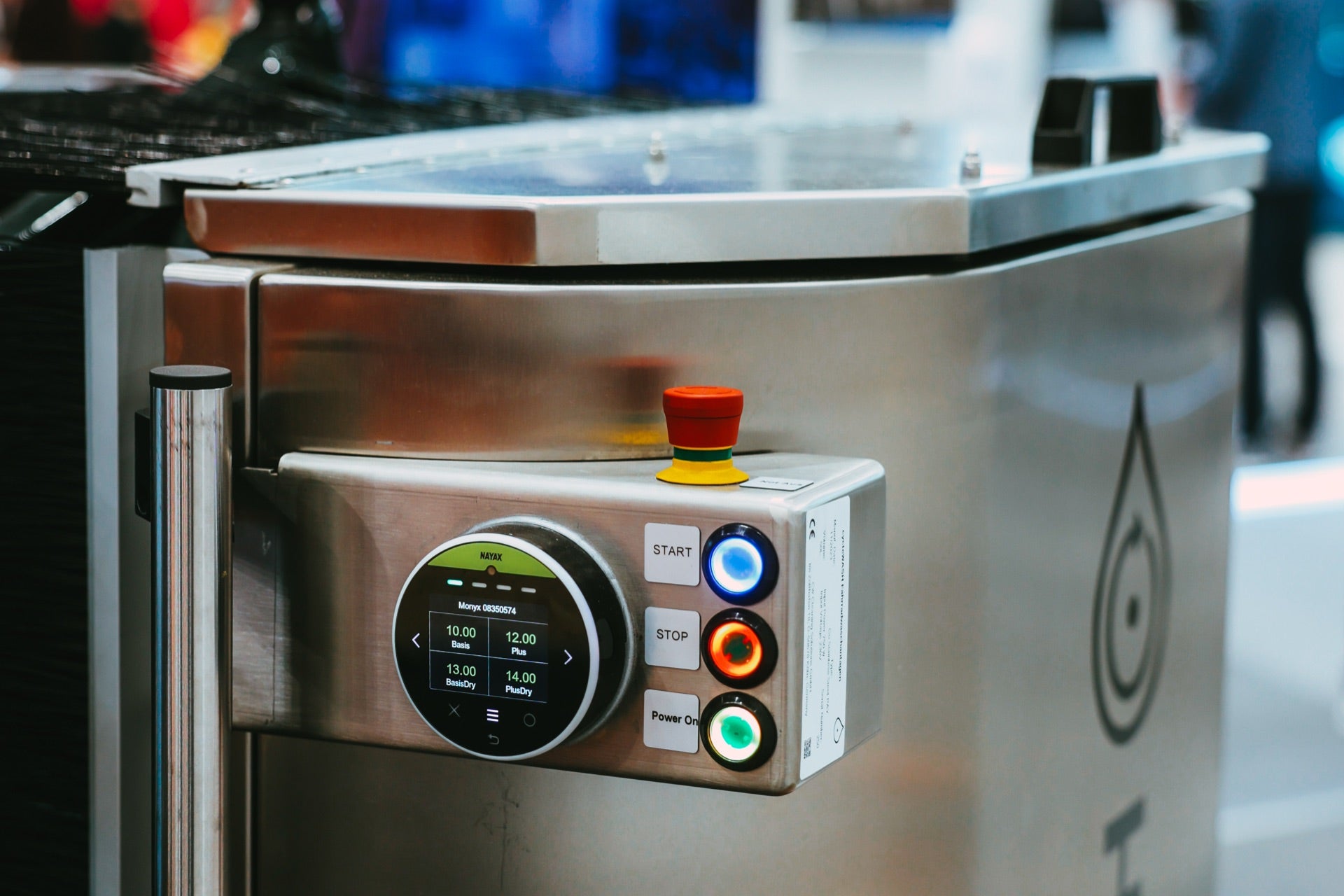

  • Standard push-button controls

🔌 Optional Equipment

  • ECO mode with closed-circuit water recycling
  • Solar power supply (inverter + lithium batteries)
  • Contactless payment (Apple Pay / Google Pay)
  • Remote monitoring & IoT diagnostics
  • High-performance compressor
  • Platinum edition — stainless steel throughout, covers included
  • Multi-colour status LED
  • Touch controls

Packaging & freight

Two ways to ship it

Every machine leaves the works either pallet-wrapped or crated. Pallet wrapping is lighter, cheaper and quicker to unpack; the crate is built for the long journeys and is worth keeping. Whichever you choose is quoted as a separate line.

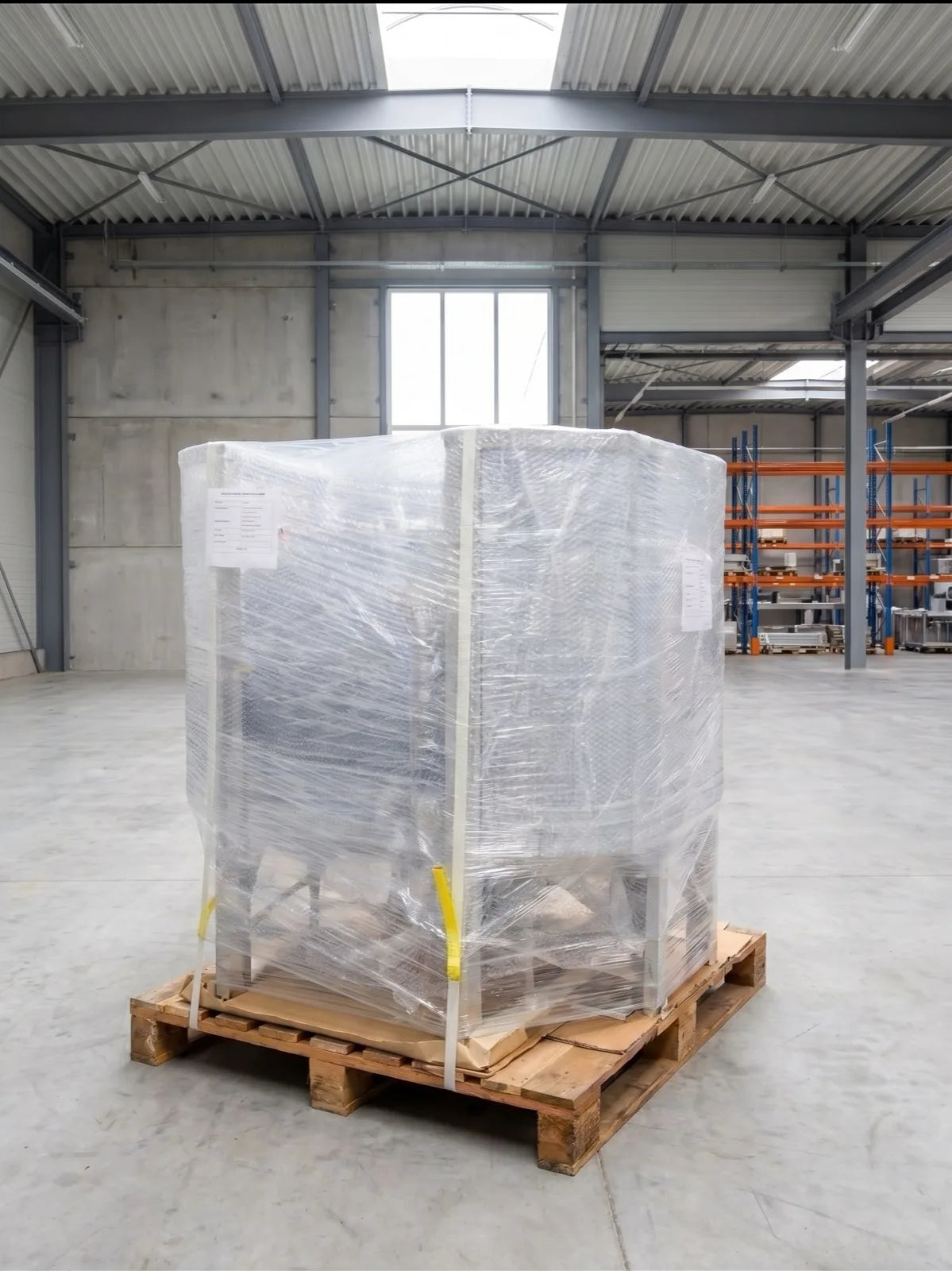

A cycleWASH mini wrapped in film on its pallet, strapped and labelled in the works

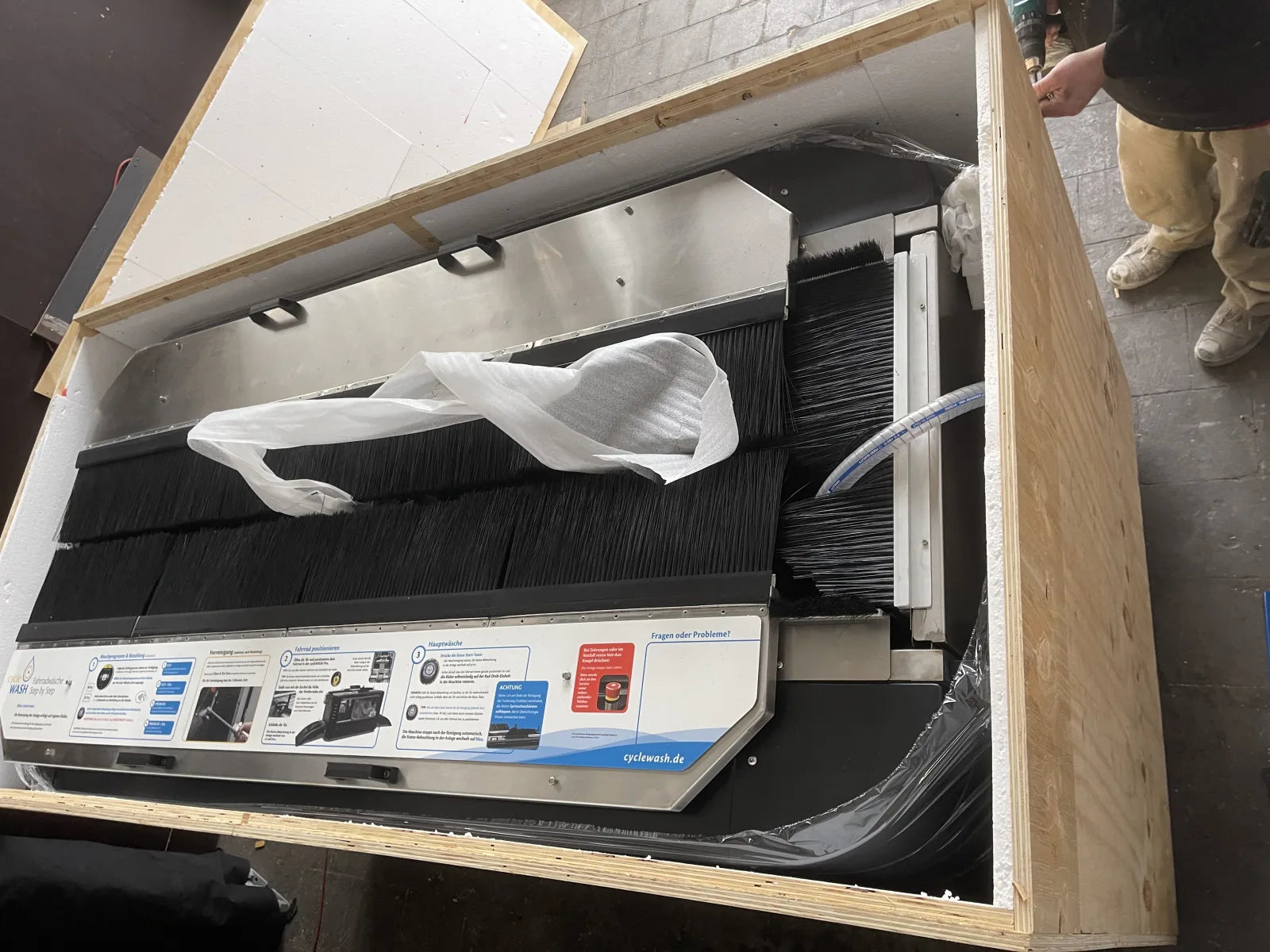

cycleWASH Pro inside its plywood crate, styrofoam lining lifted off

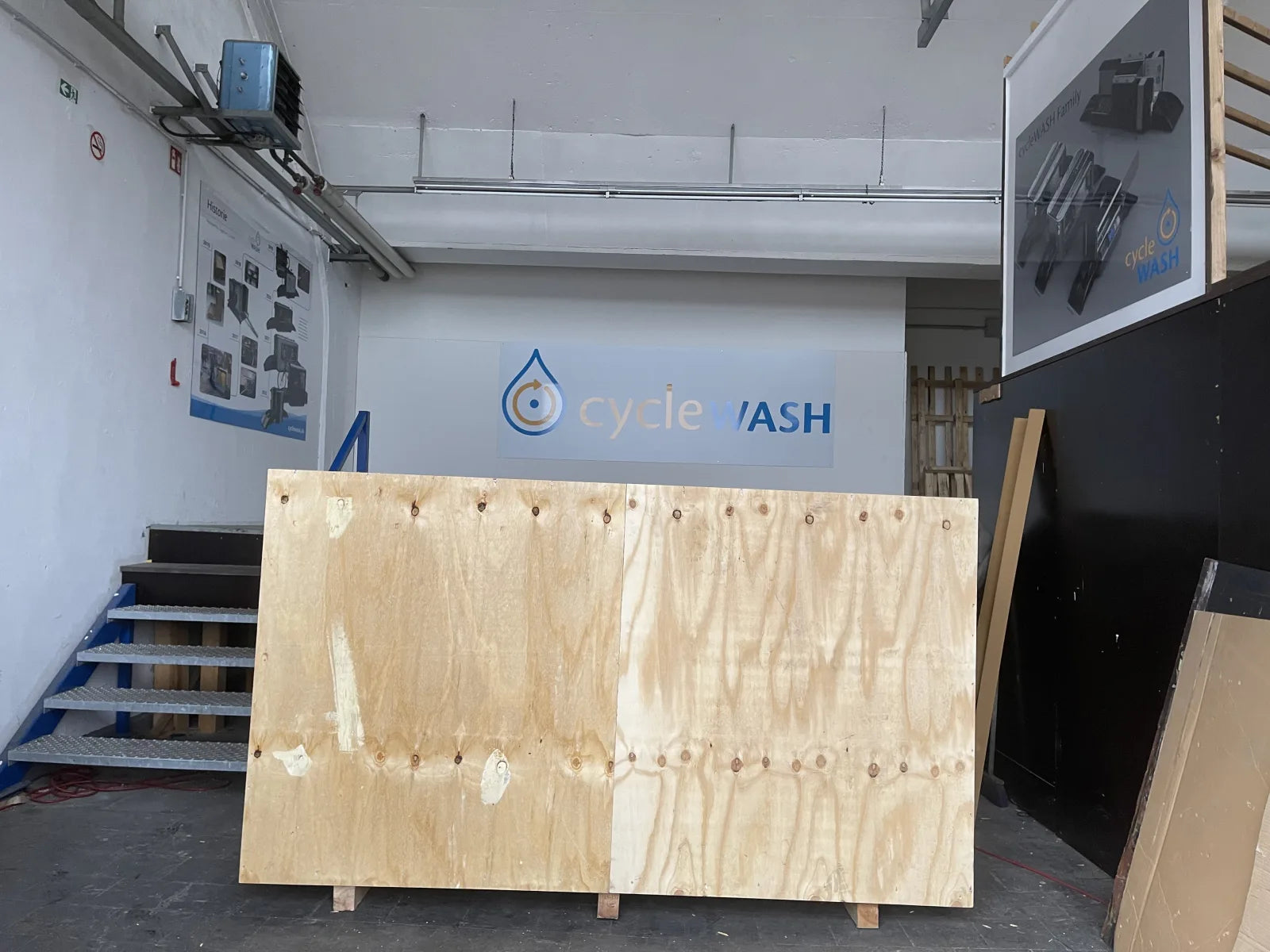

The closed cycleWASH crate standing on its pallet
  • Pallet-wrappedStrapped to its own pallet with corner protection and stretch film, at standard pallet dimensions — it travels as general cargo and comes off in minutes.
  • CratedA plywood box built to the machine, styrofoam-lined on a reinforced pallet, dimensioned for container and air freight.
  • The crate is screwed, not nailedIt opens with a cordless screwdriver and closes again — nothing is prised off or destroyed on arrival.
  • And the crate has a second lifeKeep it and it houses the machine over winter, protecting it from frost at an outdoor site.

mini Platinum and mini Station: pallet-wrapped €400 net, crated €800 net.

Sized for the container

The machines stack, and a stack fits the width and height of a standard shipping container. A load carries machines rather than air, which is what keeps freight per unit down on export orders.

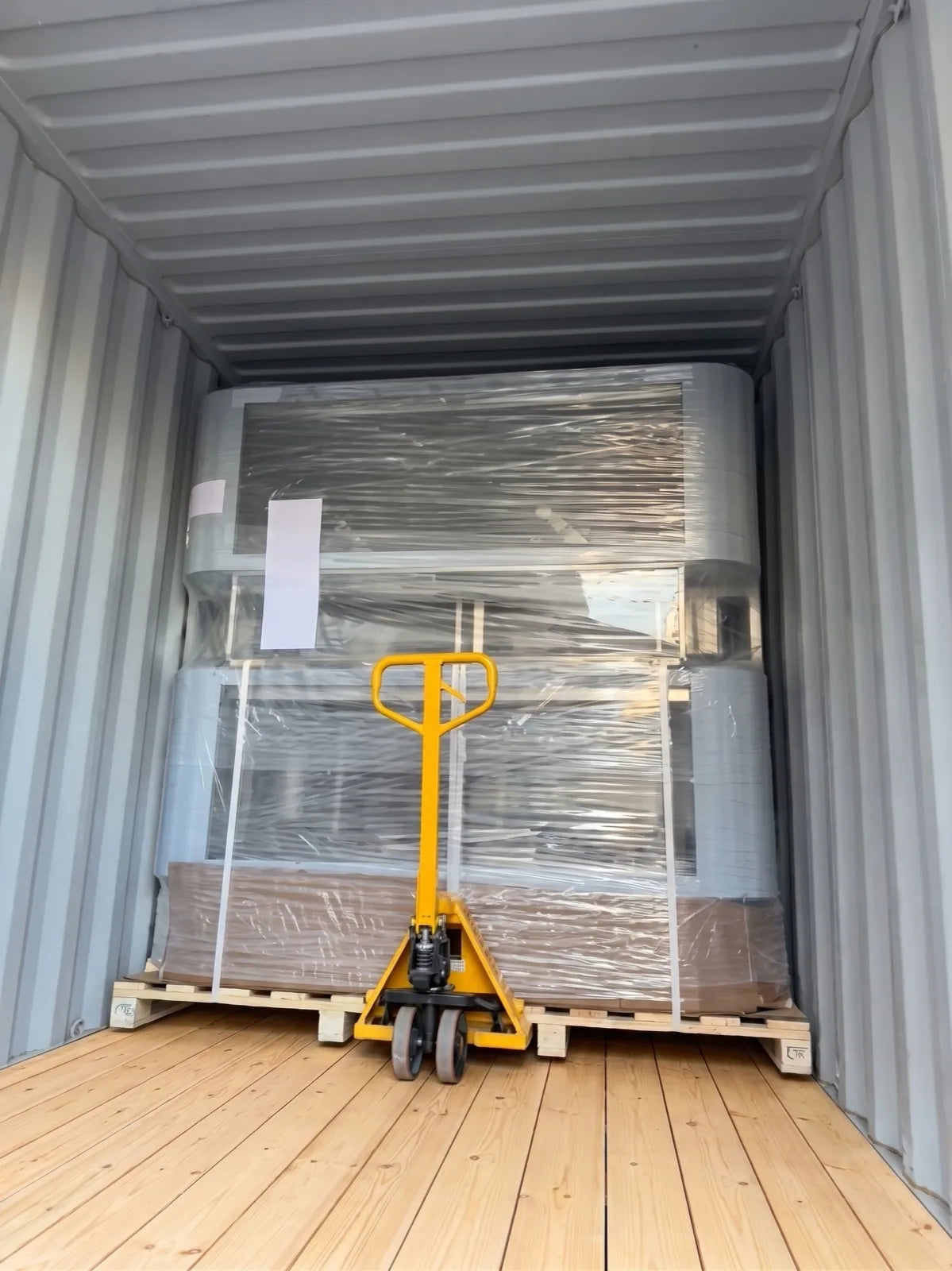

Two cycleWASH machines stacked and wrapped inside a shipping container, pallet truck in front

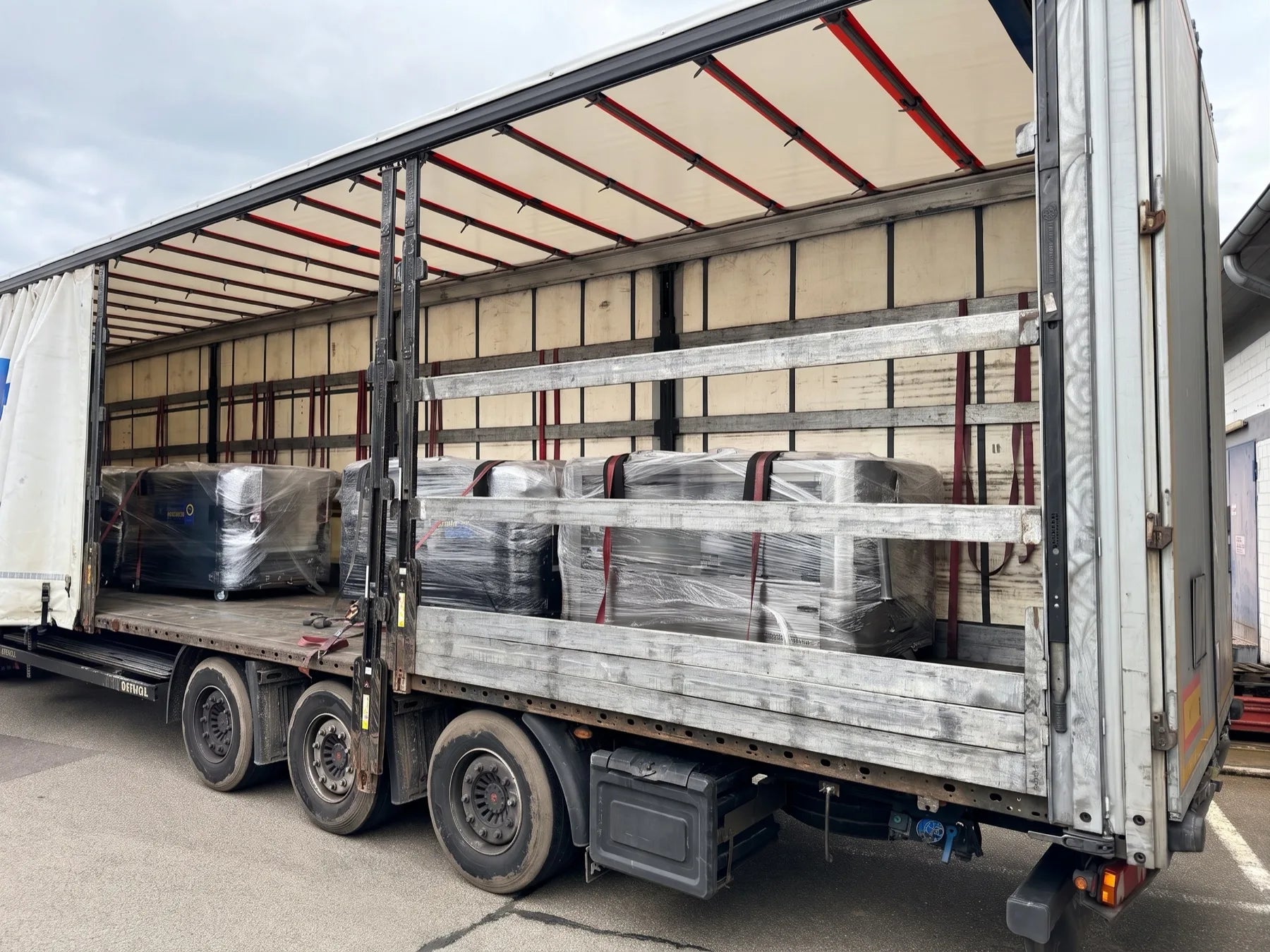

Four pallet-wrapped cycleWASH machines strapped along the bed of a curtain-side trailer

Engineering data

Technical Specifications

Dimensions (without ramps)120 x 140 cm (Basic) / 120 x 125 cm (Platinum)
Dimensions (with ramps)3100 × 1150 × 1200 mm — fits in 1.5 m²
Weight220–240 kg depending on equipment
Cleaning MethodSemi-automatic, single-pass
Water Usage (Standard)Comparable to a pressure washer
Water Usage (ECO)~3 L per wash (closed circuit)
Peak Power0.6 – 3.6 kVA
Drives2× IP65 with electronic torque limitation
Brush SystemRim cleaning brushes
Construction (Basic)Steel
Construction (Platinum)All-stainless-steel
Solar OptionExternal inverter + lithium batteries
Water RecyclingIntegrated recycling system
CertificationDEKRA tested · CE compliant

Dimension drawings

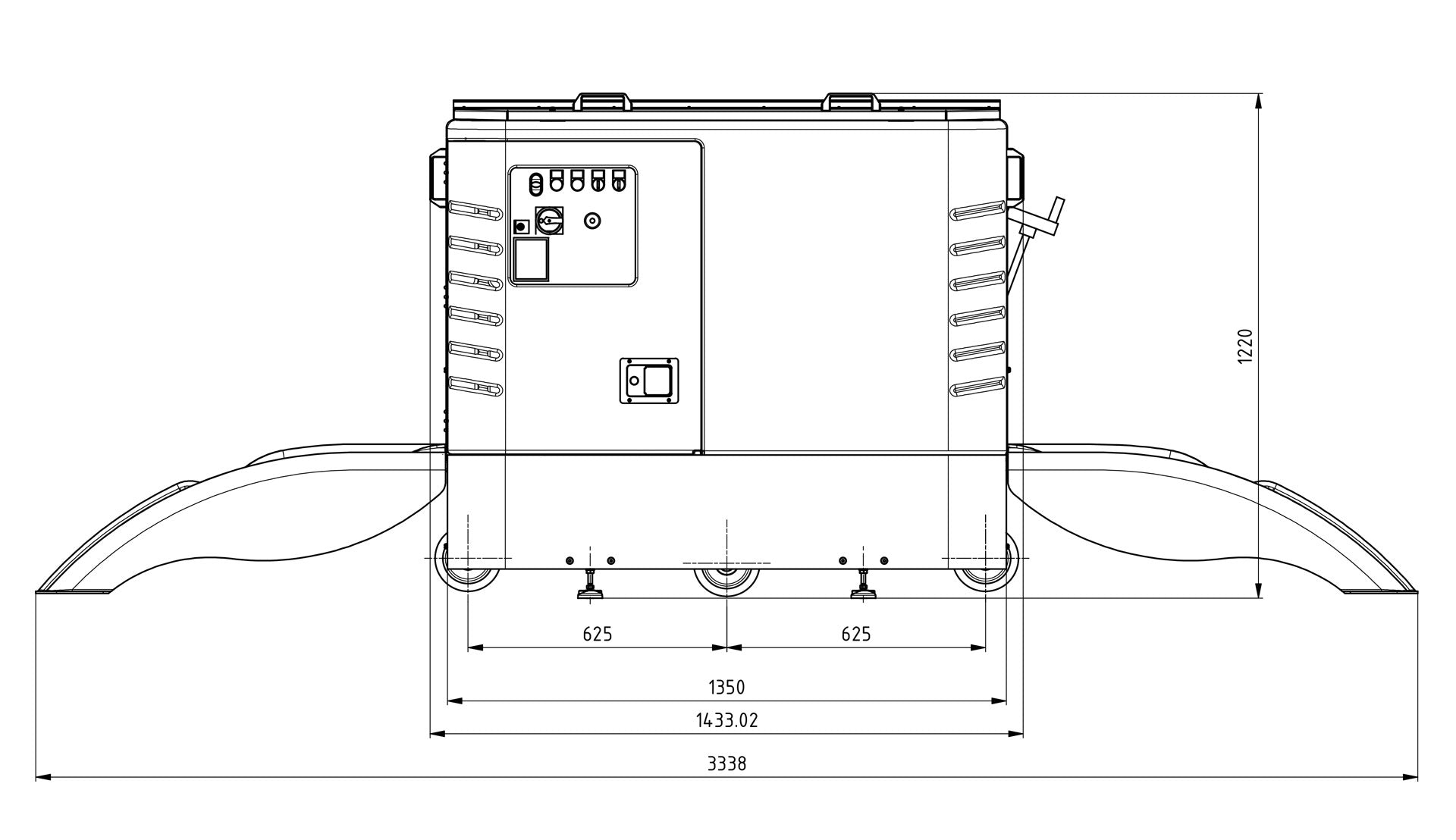

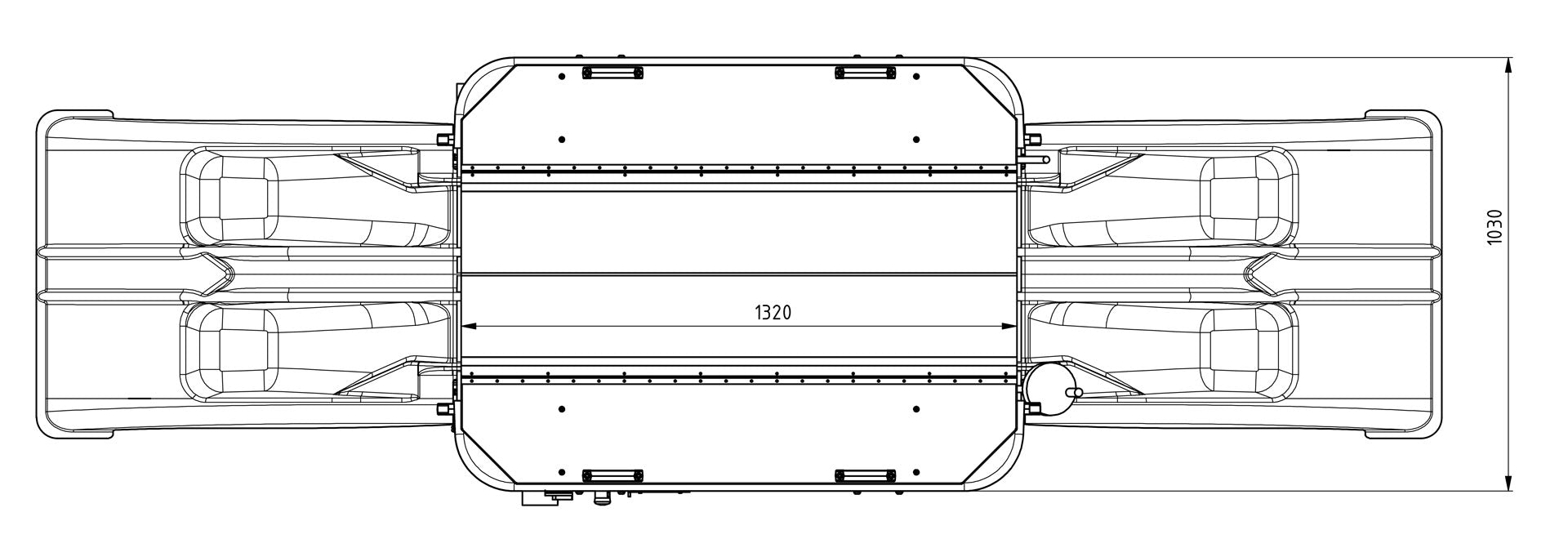

cycleWASH mini — side technical drawing cycleWASH mini — top technical drawing
Gallery full view

In the workshop

A service you can sell at the counter

The mini is small enough to sit in an existing workshop bay, so a wash becomes something you offer when a bike is booked in — not a new shop, a new process or a new customer base.

01

The bike comes in

A customer drops a bike off for a repair or a service, exactly as they do today.

02

You offer the wash

Added at intake as a paid extra. You set the price and invoice it yourself.

03

It goes back clean

Repaired and properly cleaned. The wash is the part the customer sees and remembers.

~3 minPer wash
~27 minSaved vs washing by hand
5–7Bikes per technician per day
1.5 m²Floor space

Throughput and time saving are indicative figures from partner operations (assuming a 30-minute hand wash) and are not a guarantee — actual numbers depend on soiling, staffing and how the wash is scheduled.

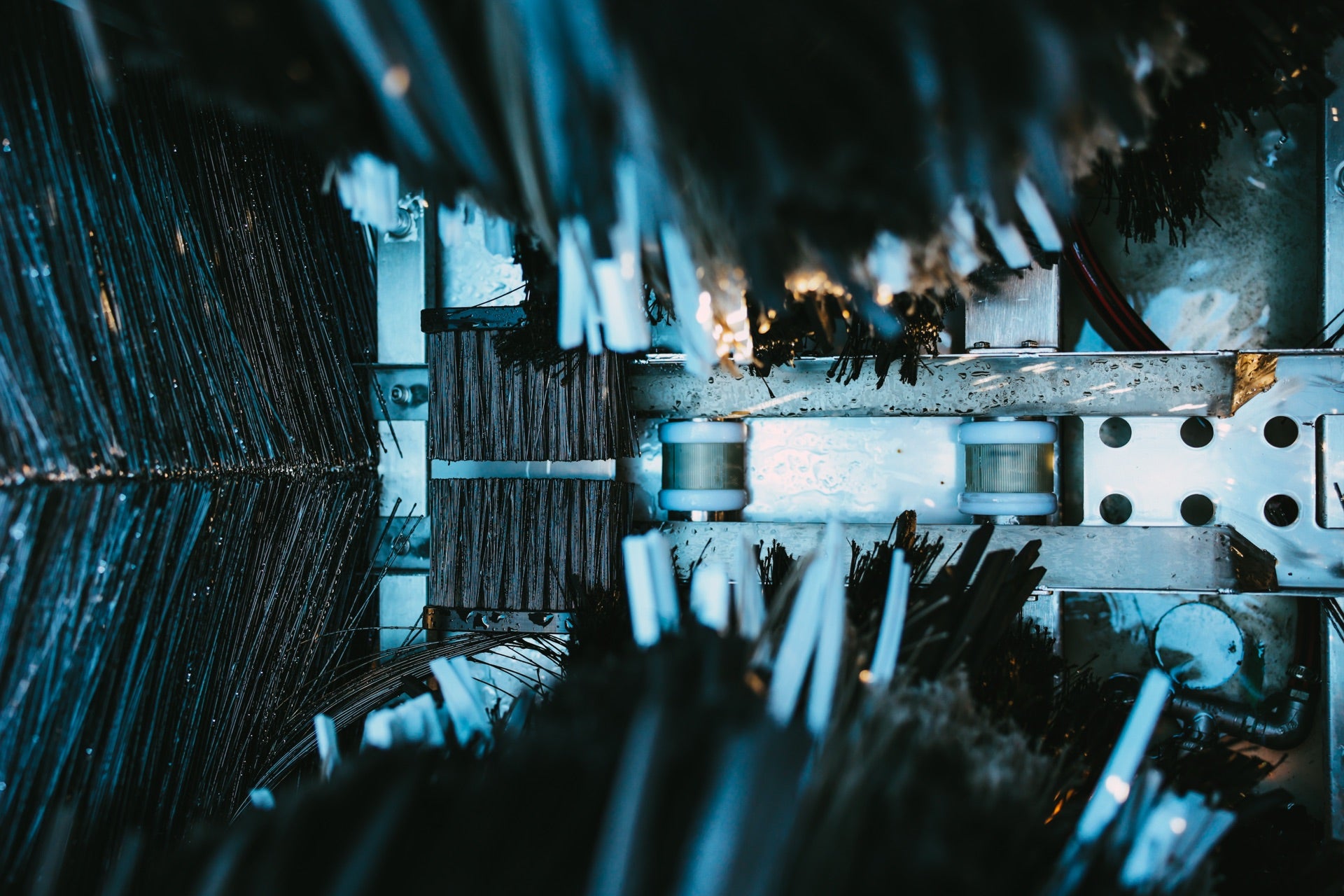

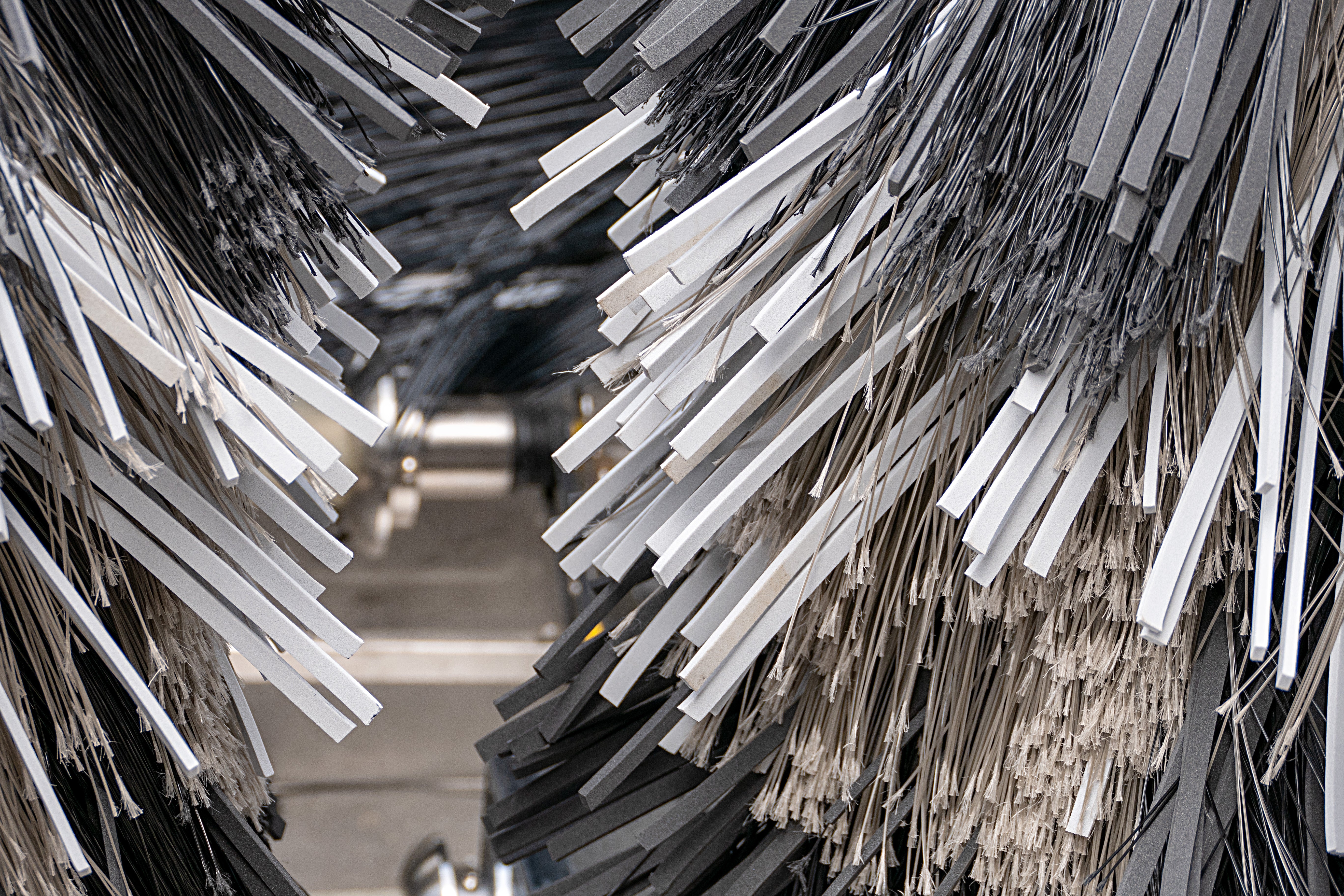

The Power of Brushes.

The heart of every cycleWASH®: our patented AntiGravity hybrid brush system — safe for carbon and eBikes Learn more

PATENTED BRUSH TECHNOLOGY

Anti-gravity brushes

The patented anti-gravity brushes carry their own weight: they follow the frame instead of pressing on it. Ideal for sensitive carbon frames and e-bikes.

Brush technology in detail
See It In Action

Watch the Video — See It in Action

See our machines in action — from compact Mini to fully automatic Pro.

Station video
Mini Basic video
Mini Platinum video
Pro video
Trending on Social Media

What the world is saying about
cycleWASH®

Riders, operators and cycling enthusiasts sharing their experience with cycleWASH® stations worldwide.

Ready for cycleWASH Mini?

Tell us about your site and we’ll recommend the right configuration, ramps and power option for it.

🌎 Shipped worldwide
🌿 Eco-friendly operation
🇩🇪 German engineering

FAQFrequently asked questions

Everything you need to know about cycleWASH®

Nico answers our most-asked questions in 10 seconds — the full FAQ is below.

0 of 15 expanded
What if a customer’s bike gets damaged?

The system is engineered so this doesn’t happen: a calibrated low-pressure spray and gentle EASYClick foam/PE Mylex brushes that never exceed pressure levels safe for electronics and delicate materials — field-proven on 1,000,000+ washed bikes. cycleWASH® is DEKRA safety-certified and protected by 33 international patents. That track record keeps the wash process uncritical from an insurance standpoint; our team is happy to walk through liability details with your quote.

What does maintenance really cost per year?

Fully predictable: the annual maintenance contract is €1,000/year for Mini and Station and €1,500/year for Pro — covering routine maintenance plus a phone hotline (Mon–Fri). Wear parts such as brushes, hoses, filters, pumps, roller-drive motors, and drive belts are consumables and billed separately.

What happens in winter / frost?

All models are designed for indoor and outdoor installation and are weatherproof. For outdoor operation below freezing, the water circuit should be drained down or kept frost-free — many operators simply move the machine indoors or pause operation for the season. Our team confirms the right frost-protection setup for your location with your quote.

Can it wash e-bikes safely?

Yes. The calibrated low-pressure spray system is specifically designed for e-bikes and carbon frames. Unlike pressure washers, it never exceeds pressure levels that are safe for electronics, drive units, and delicate surfaces — suspension components and electronic groupsets included.

What warranty do I get?

Limited warranty per our Terms & Conditions. Wear parts (brushes, hoses, filters, pumps, roller-drive motors, drive belts) are excluded. When you sign a maintenance contract, an extended warranty of 1–5 years — matching the contract period — is available.

How long does on-site installation take?

The cycleWASH needs no complex installation — place it, connect it, wash.

How much water and power does it use?

Very little: the cycleWASH Eco mode uses about 3 litres per wash, the Standard mode around 12 litres — comparable to a pressure washer. Power usage is between 1–5 kW peak depending on the configuration.

Purchase, rent, lease, or franchise?

Purchase: full upfront, 50/50 at time of order / delivery. Lease: flexible financing available on request. Rent: flexible rental options for seasonal and event operation. Franchise: partner program with a standard 3-year term and purchase option.

How fast does it pay back?

It depends on your wash price and traffic: at €3 per wash and 50 washes/day, a Mini generates roughly €4,500/month in revenue — typical payback is 8–18 months. Run your own scenario in our ROI calculator.

Which model fits my location?

Mini — compact and mobile: bike shops, events, hotels, smaller footprints. Pro — fully automatic for high traffic: bike parks, large dealers, rental fleets. Compare all models on the machines overview.

How does cycleWASH® work?

The Mini uses wet rotating brushes to clean frame and wheels semi-automatically — push the bike through in three steps for a one-pass wash. The Pro is fully automatic — wheel in your bike, press start, and the machine handles cleaning and drying.

Can it run on solar power?

Yes! All models support solar power. All models can have integrated inverter, charger, and lithium batteries, making it fully self-sufficient for remote or off-grid locations.

What’s the difference between Mini and Pro?

The Mini is the world’s most compact bicycle washing system — semi-automatic, ideal for limited spaces. The Pro is fully automatic with options for integrated drying and compressor, designed for high-volume commercial use.

Is it safe for all bicycle types?

Yes. The hybrid brushes adapt to every frame and wheel size. It safely cleans standard bikes, e-bikes, cargo bikes, and more without damaging paintwork or electronics.

What maintenance is required?

Periodic water recycling filters need cleaning. Inspection and replacement of wear-and-tear parts during yearly maintenance — e.g. V-belts — keeps maintenance very low. Wash brushes on all our machines so far have never been replaced. Our team provides full training and ongoing support.
